2. Receiving the product
Check that the product received is in accordance
with the order.
Check that the voltage and frequency of the product
match the voltage and frequency of the installation
site.
3. Installing the product
Install the pressure manager on the outlet side of the
pump. See fig. 4.
If the pump is pumping from a well, borehole or
similar, always fit a non-return valve on the inlet side
of the pump.
We recommend that you connect the pressure
manager to the piping system using unions.
The outlet connection of the pressure manager can
be rotated 360 °. See fig. 1.
The inlet connection is an integrated part of the
pressure manager housing.
The pressure manager has a built-in non-return
valve.

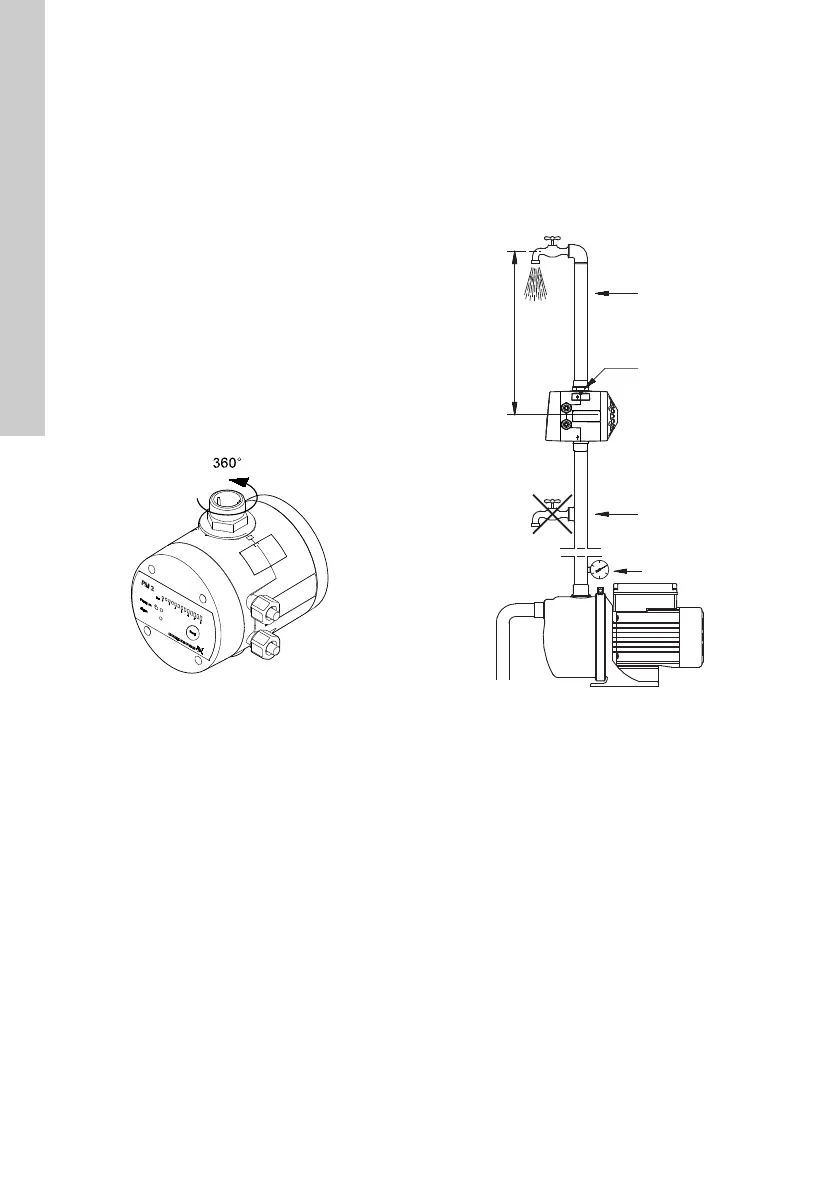

Fig. 1 Rotary outlet connection
3.1 Location
The installation location must be clean and well
ventilated.
The pressure manager must not be exposed to rain
and direct sunlight.
3.2 Mechanical installation, PM 1
PM 1 can be installed in systems with or without a
pressure tank.
Fig. 2 Installation example
The pressure manager can be fitted directly to the
pump outlet port or between the pump and the first
tapping point.
TM03 9707 1508
TM03 9364 4007
