English (GB)
3

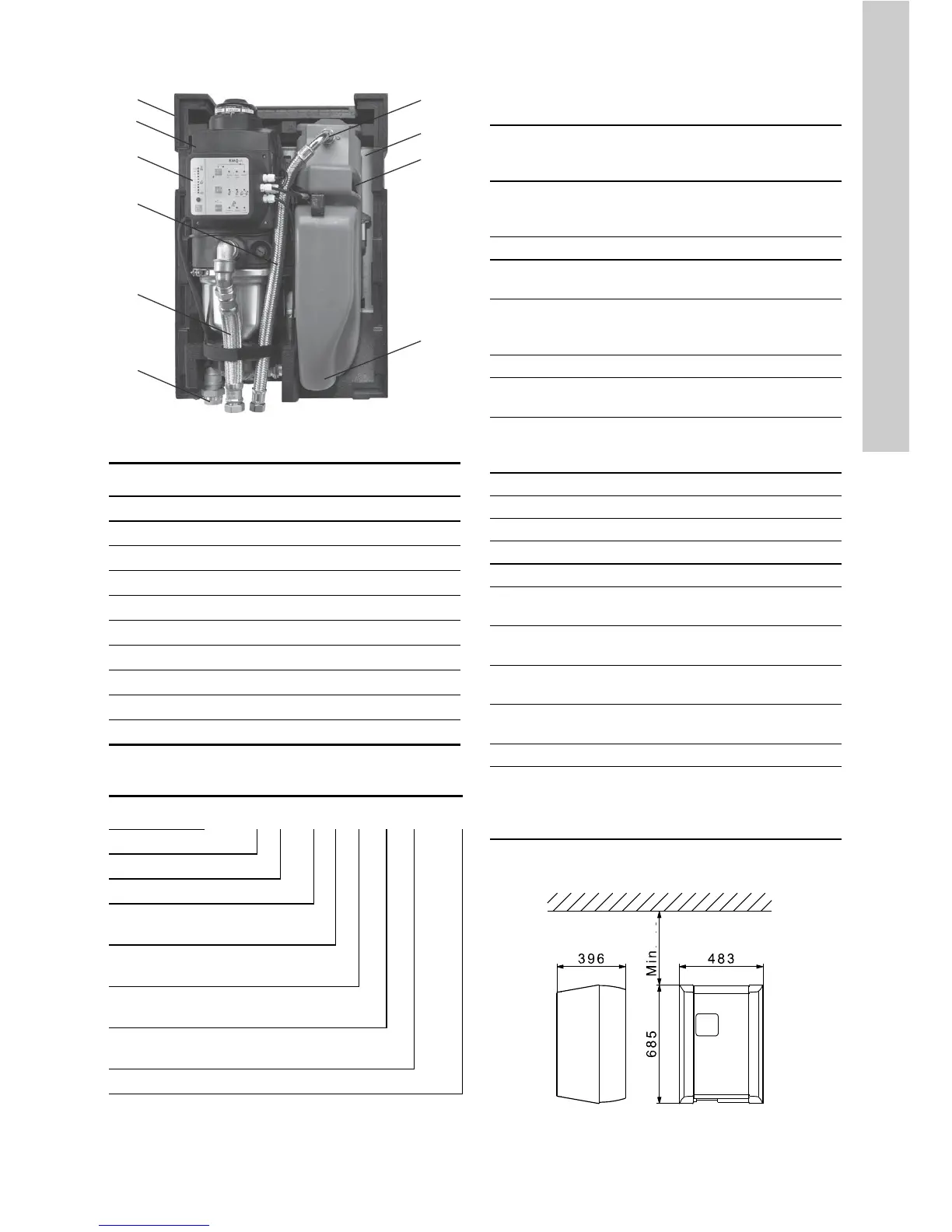

The RMQ components are shown in fig. 1.
Fig. 1 RMQ components
4. Type key
5. Technical data
5.1 Operating conditions
5.2 Dimensions
Fig. 2 Dimensional sketch (dimensions in mm)
TM04 6918 1110
Pos. Description
1 Cabinet
2Pump
3 Control panel
4 Mains-water hose
5 Discharge hose
6 Suction hose
7 Float valve
8 Mains-water tank
9 Emergency overflow
10 Overflow
Example RMQ 3 -45 A -A -W -A BVBP
Type range
Rated flow rate [m
3
/h]
Maximum head [m]
Code for control variant
A: Electronic control
Code for version
A: Standard
Code for pipe connection
W: Internal thread
Code for materials
A: Standard
Code for shaft seal
Flow, Q
max.
RMQ -35
RMQ -45
4.0 m
3
/h
4.5 m
3
/h
Head, H
max.
RMQ -35
RMQ -45
35 m
45 m
Liquid temperature 0 °C to +35 °C
Maximum inlet pressure,
mains-water connection
6 bar
Maximum height to
highest point of
consumption
15 m
Supply voltage 230 VAC, 50 Hz
Power input during
standby
Approx. 2.5 W
Rated power input
RMQ -35
RMQ -45
Approx. 850 W
Approx. 1000 W
Enclosure class IP42
Ambient temperature 0 °C to +45 °C
Mounting location Indoors
Weight 24 kg
Material, cabinet EPP foam
Material, pump
Stainless steel/POM/
PPO
Material, mains-water
tank
PE
Dimension, mains-water
hose
3/4"
Dimension, suction and
discharge hoses
1"
Dimension, overflow DN 70
Level sensor
Including 25 m cable
(the sensor cable must
be run through a
conduit)
TM02 5768 0609
