Tips and advice that make the work easier.
2. Transporting the product
The pump may be transported and stored in a vertical or horizontal
position.
CAUTION
Crushing hazard
Minor or moderate personal injury
‐ Make sure the pump cannot roll or fall over.
3. Handling and lifting the product
All lifting equipment must be rated for the purpose and checked for
damage before lifting the pump. The lifting equipment rating must
under no circumstances be exceeded. The pump weight is stated
on the nameplate.
WARNING
Crushing hazard
Death or serious personal injury
‐ Always lift the pump by its lifting bracket or by a forklift
truck if the pump is fixed on a pallet. Never lift the
pump by the power cable, hose, or pipe.

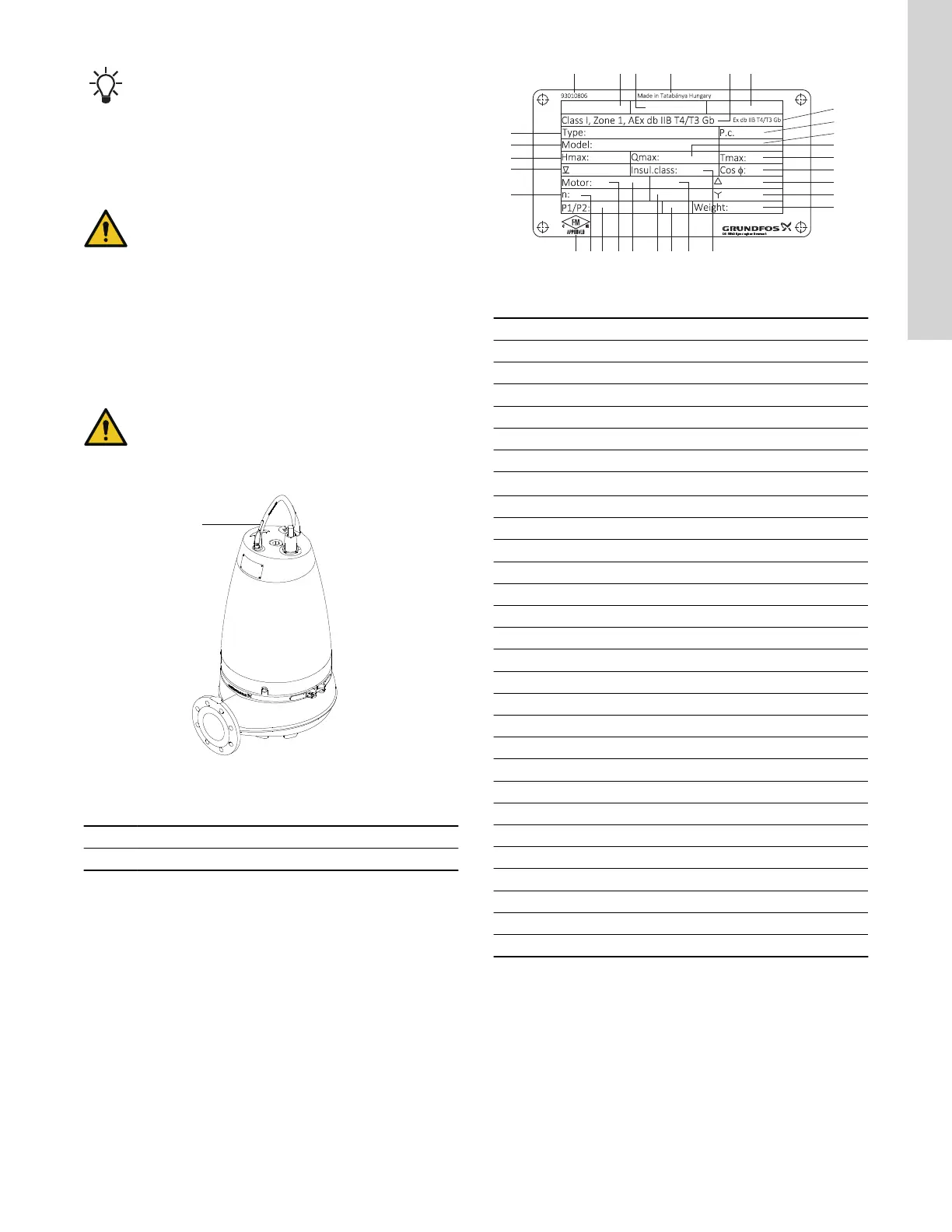

L
TM085558
Lifting bracket
Pos. Description
L Lifting bracket
For horizontal, dry-installed pumps, a special lifting bracket can be
ordered to ease the lifting of the pump. See the service instruction
on www.grundfos.com.
4. Identification
4.1 Nameplate
The nameplate states the operating data and approvals applying to
the pump. The nameplate is fitted to the side of the stator housing
close to the cable entry.
Fix the extra nameplate supplied with the pump to the cable end in
the controller.
24
1
26 27 23 2520
2
3
4
7
19
16
14
13
11
10
9
21
5 6
7
8 18 15 12
28
17
22
FM23US0056 FM23CA0041X
Refer to instruction Manual
TM085707
Nameplate
Pos. Description
1 Type designation
2 Product number
3 Max. head [ft]
4 Maximum installation depth [ft]
5 Number of phases
6 Frequency [Hz]
7
Rated speed [min
-1
]
8 Motor input (P1) / output (P2) power [hp]
9 Production code (year and week)
10 Max. flow rate [GPM]
11 Max. liquid temperature [°F]
12 Insulation class
13 Power factor
14 Rated current [A], delta connection
15 Rated voltage [V], delta connection
16 Rated current [A], star connection
17 Rated voltage [V], star connection
18 Enclosure class
19 Net weight [lb]
20 US marking of explosion protection
21 CA marking of explosion protection
22 Mark of Approved body
23 Country of production
24 Installation and operating instructions
25 Thermal protection
26 US Explosion protection certificate number
27 CA Explosion protection certificate number
28 Ambient temperature
5
