Grundfos SEV 80 - Page 23

L1
L2
L3
T1
T2
T3
1
3
5
4
6
2
7
8
9
U1
V1
W1
U2
V2
W2
P1
P2
P5
L1
L2
L3
1
3
5
4
6
2
7
8
9
U1
V1
W1
U2
V2
W2
M
L1
L2
L3
P1
P2
P5
1
3
5
4
6
2
7
8
9
U1
V1
W1
U2
V2
W2
A
B
C
M
WIO
M
WIO
Y&G
N/A
TM046886

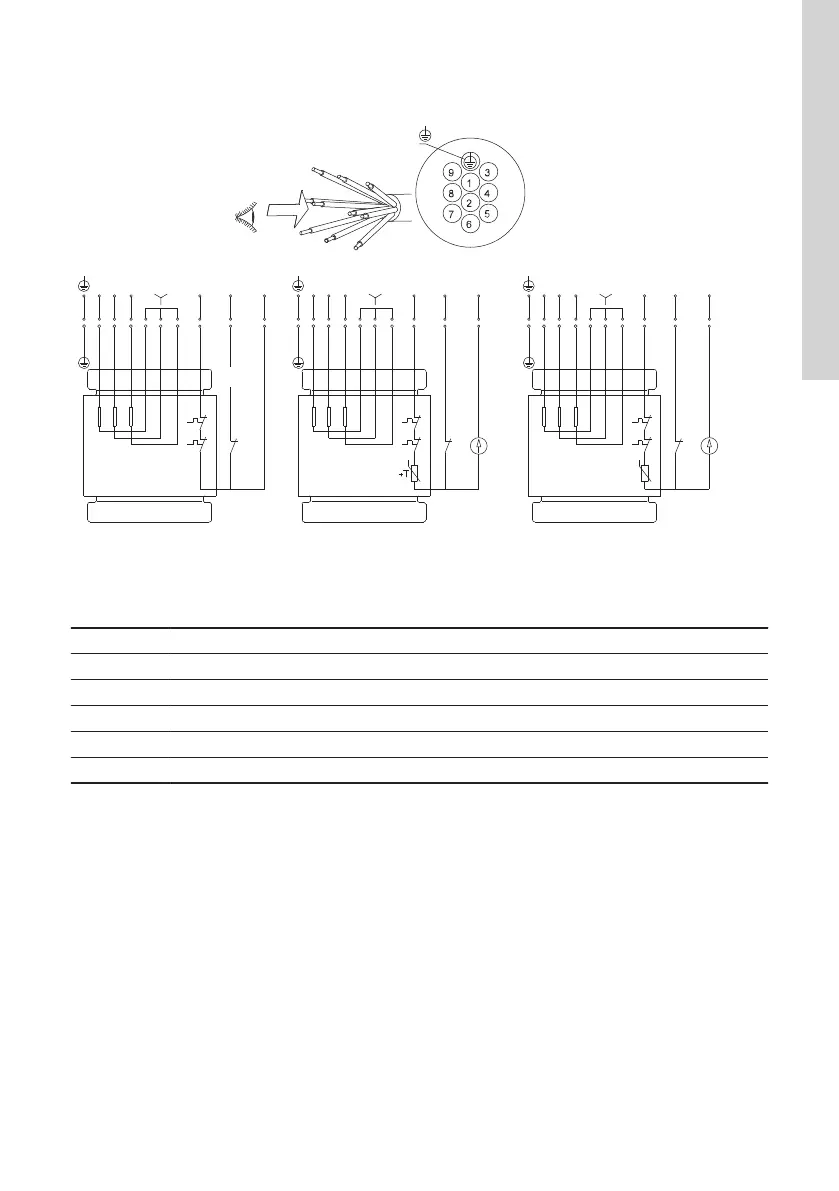

Wiring diagram, 10-core cable, star-connected (Y)
Pos. Description
Y&G Yellow and green
N/A Sensor version with thermal switch, PTC thermistor*, moisture switch and WIO sensor
A Standard version with thermal switches
B Sensor version with thermal switch, Pt1000, moisture switch and WIO sensor
C Sensor version with thermal switch, PTC thermistor*, moisture switch and WIO sensor
* Pumps with 4 kW and larger motors sold in Australia or New Zealand are fitted with a PTC thermistor.
