8.1 Wiring diagrams

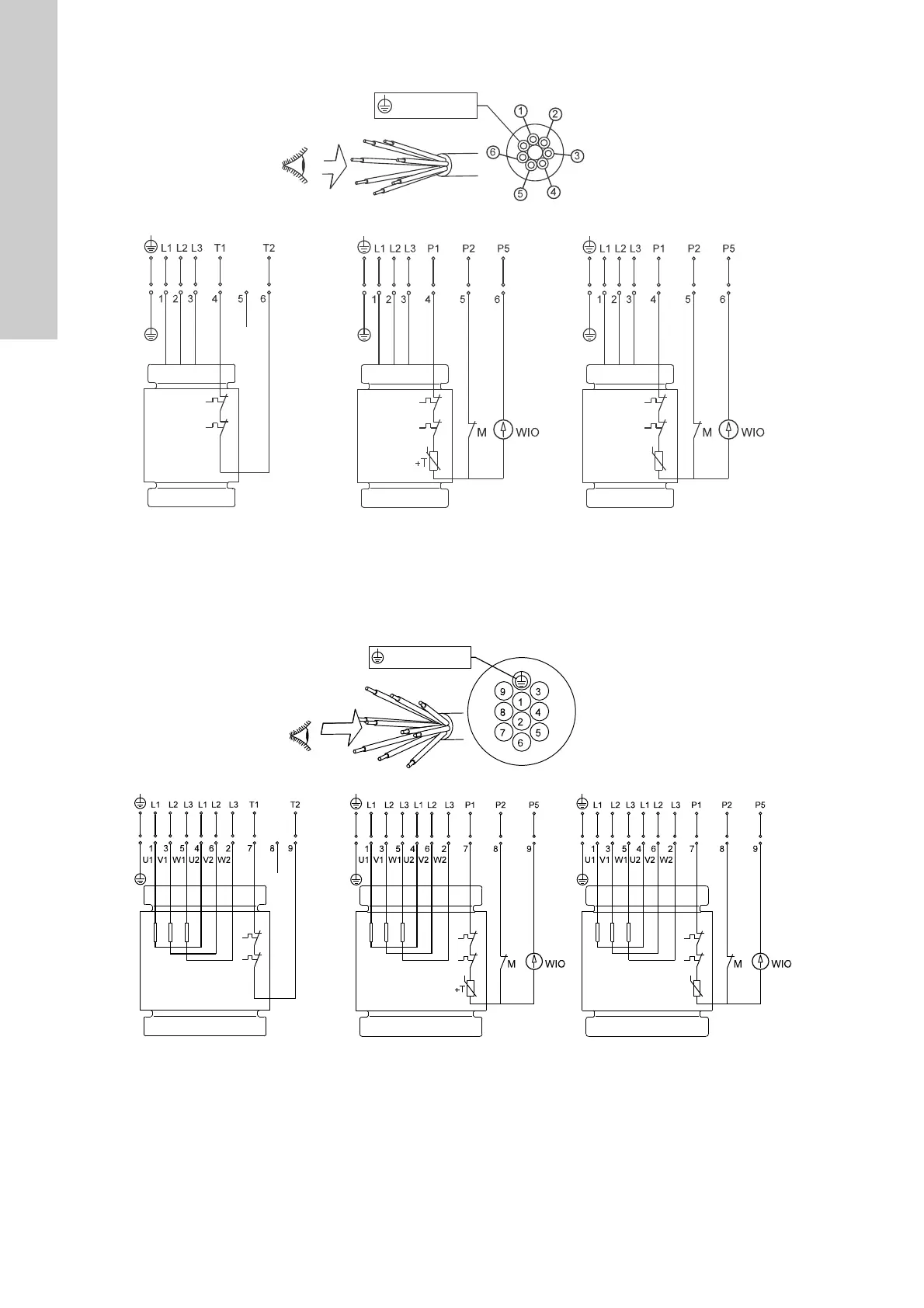

Fig. 6 Wiring diagram, 7-core cable, DOL
Fig. 7 Wiring diagram, 10-core cable, star/delta (Y/D)
TM04 6884 0710
Standard version
Thermal switches*
Sensor version
Thermal switch, Pt1000 resistor,
moisture switch and water-in-oil sensor
Sensor version
Thermal switch, PTC thermistor*,
moisture switch and water-in-oil sensor
Yellow/green
Not used
* Pumps from 4 kW and up sold in Australia/New Zealand are fitted with a PTC thermistor.
TM04 6885 0710
Yellow/green
Standard version
Thermal switches*
Sensor version
Thermal switch, Pt1000 resistor,
moisture switch and water-in-oil sensor
Sensor version
Thermal switch, PTC thermistor*,
moisture switch and water-in-oil sensor
* Pumps from 4 kW and up sold in Australia/New Zealand are fitted with a PTC thermistor.
