14. Dimensions and weights
14.1 Pumps without accessories

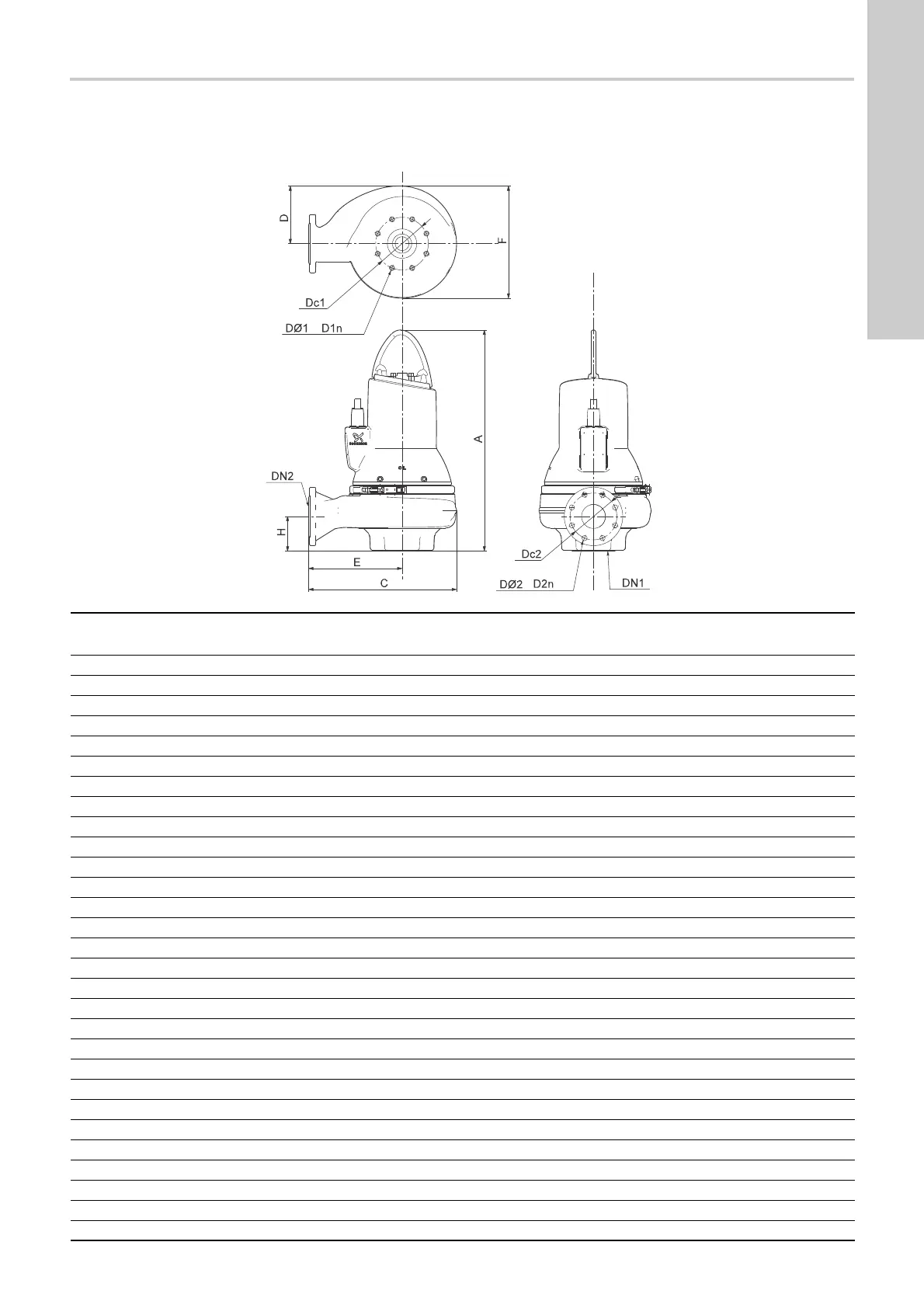

TM04 2793 3008
Pump type A C D E F H DN1 Dc1 D1n-D∅1 DN2 Dc2 D2n-D∅2
Weight
[kg]
SL1.50.65.22.2 641 366 171 216 321 93 65 145 4 x M16 65 145 4 x 18 86
SL1.50.65.30.2 641 366 171 216 321 93 65 145 4 x M16 65 145 4 x 18 89
SL1.50.65.40.2 677 407 200 227 379 93 65 145 4 x M16 65 145 4 x 18 115
SL1.50.80.22.2 641 366 171 216 321 100 65 145 4 x M16 80 160 8 x 18 87
SL1.50.80.30.2 641 366 171 216 321 100 65 145 4 x M16 80 160 8 x 18 90
SL1.50.80.40.2 677 407 200 227 379 100 65 145 4 x M16 80 160 8 x 18 116
SL1.80.80.15.4 682 435 171 272 347 100 100 180 8 x M16 80 160 8 x 18 95
SL1.80.80.22.4 682 435 171 272 347 100 100 180 8 x M16 80 160 8 x 18 107
SL1.80.80.30.4 711 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 137
SL1.80.80.40.4 748 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 142
SL1.80.80.55.4 755 505 200 319 397 118 100 180 8 x M16 80 160 8 x 18 149
SL1.80.80.75.4 818 530 217 328 423 118 100 180 8 x M16 80 160 8 x 18 193
SL1.80.100.15.4 682 435 171 272 347 112 100 180 8 x M16 100 180 8 x 19 96
SL1.80.100.22.4 682 435 171 272 347 112 100 180 8 x M16 100 180 8 x 19 108
SL1.80.100.30.4 726 505 200 319 397 118 100 180 8 x M16 100 180 8 x 19 139
SL1.80.100.40.4 748 505 200 319 397 118 100 180 8 x M16 100 180 8 x 19 143
SL1.80.100.55.4 755 505 200 319 397 118 100 180 8 x M16 100 180 8 x 19 150
SL1.80.100.75.4 818 530 217 328 423 118 100 180 8 x M16 100 180 8 x 19 194
SL1.100.100.40.4 754 541 200 320 438 115 150 240 8 x M20 100 180 8 x 22 155
SL1.100.100.55.4 762 541 200 320 438 115 150 240 8 x M20 100 180 8 x 22 161
SL1.100.100.75.4 827 541 217 312 462 115 150 240 8 x M20 100 180 8 x 22 202
SL1.100.150.40.4 755 541 200 320 440 143 150 240 8 x M20 150 240 8 x 22 157
SL1.100.150.40.4 755 541 200 320 440 143 150 240 8 x M20 150 240 8 x 22 157
SL1.100.150.55.4 762 541 200 320 440 143 150 240 8 x M20 150 240 8 x 22 163
SL1.100.150.75.4 827 541 217 306 472 143 150 240 8 x M20 150 240 8 x 22 204
SLV.65.65.22.2 684 396 171 246 321 102 80 160 8 x M16 65 145 4 x 18 88
SLV.65.65.30.2 684 396 171 246 321 102 80 160 8 x M16 65 145 4 x 18 91
SLV.65.65.40.2 718 456 200 276 380 106 80 160 8 x M16 65 145 4 x 18 117
SLV.65.80.22.2 685 397 171 247 321 103 80 160 8 x M16 80 160 8 x 18 89
