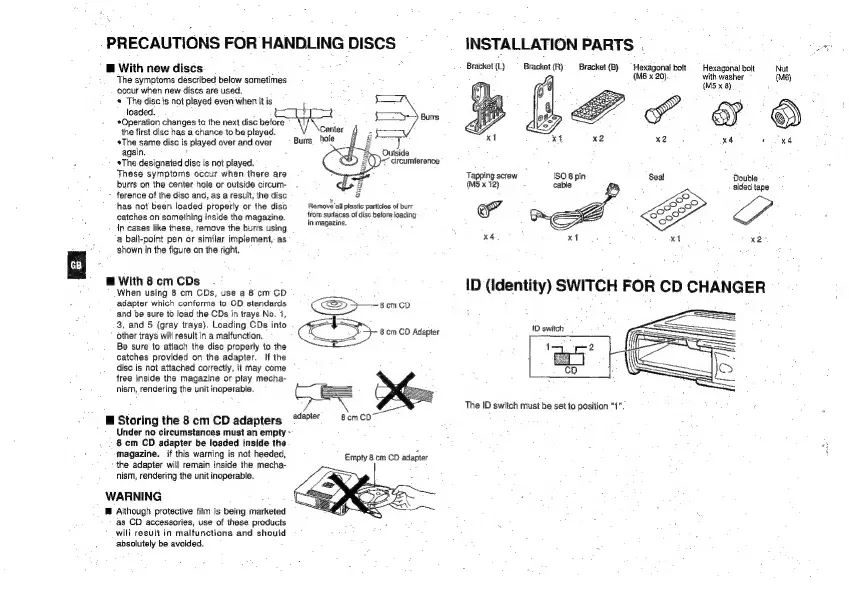

PRECAUTIONS FOR HANDLING DISCS ~ INSTALLATION PARTS .
Bi With new discs i Bracket 0 Bracket (R) Bracket (B)- Hexagonal bolt Hexagonal bolt Nut
The symptoms described below sometimes Sp (M6 x 20) wie washer (M6)
occur when new discs are used, (M5x8). :
* The disc is not played even when itis ‘ .
loaded.
SW
&y
S)
*Operation changes to the next disc before } Sy
bal x2 x2 : x4 * x4
ess
the first disc has a chance to be played. \canier =
*The same disc i: is played over and over ald hole
again.
e *The designated disc is not played.
These symptoms occur when there are
burrs on the center hole or outside circum-
> ference of the disc and, as a result, the disc
has not been loaded properly or the disc Remove’all plastic particles of burr oe” EEE
catches on’ something inside the magazine. from surfaces of disc before loading
In cases like these, remove the burts using Be a
a ball-point pen or similar implement, as x4
shown in the figure an the right.
Tapping screw — ISO 8 pin : Double
(M5 x 42) cable : sided ae
Gl
mWith
8cmcDs
ID
(Identity)
SWITCH
FOR
CD
CHANGER
When using 8 cm CDs, use a 8 cm CD
adapter which conforms to CD standards SH>— seme
and be sure to load the CDs in trays No. 1,
3, and 5 (gray trays). Loading CDs into
other trays will result in a malfunction, 8cm CO Adapter
Be sure to attach the disc properly to the
catches provided on the adapter. If the
disc is not attached correctly, it may come
free inside the magazine or play mecha-
nism, rendering the unit inoperable.
ID switch
The ID switch must be set to position "1".
M Storing the 8cm CD adapters 4" 8emcd
Under no circumstances must an empty «
8 cm CD adapter be loaded inside the
magazine. if this warning is not heeded, Empty 8 cm CD adapter
the adapter will remain inside the mecha-
nism, rendering the unit inoperable.
WARNING
@ Although protective film is being marketed
as CD accessories, use of these products
will result in malfunctions and shouid
absolutely be avoided.
