21
Full capacity：1.2 Liter
Standard capacity：1.1 Liter
Put on oil position screw with revolving
Try running and confirm no oil leakage
Check oil level

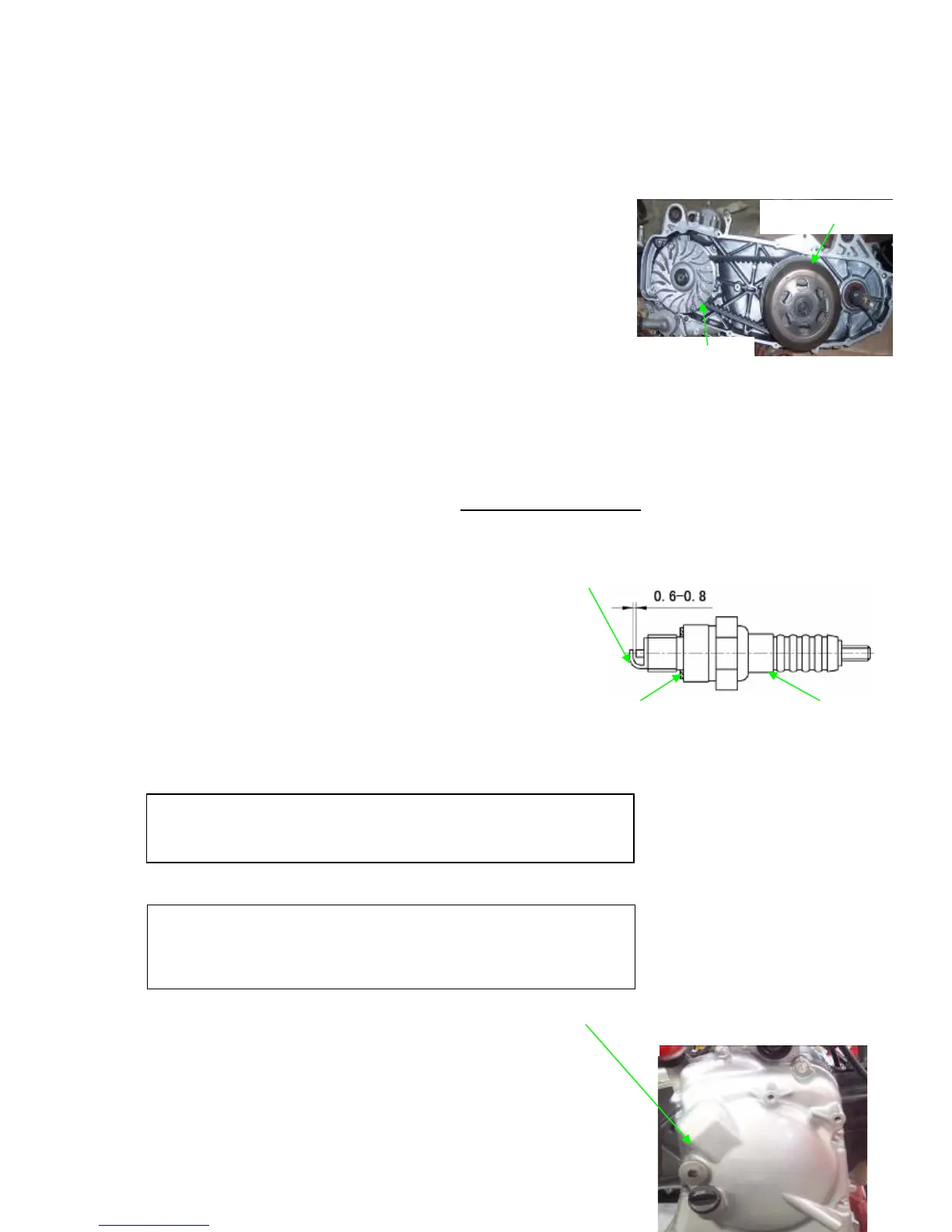

Driving/Driven Wheel
Take off left cover
Check driving/driven condition
Electronic System
Ignition System
Station of Spark Plug
Take off spark plug
Check sparks plug and clean dirt,
carbon with special cleaner or
steel wire brush.
Spark Plug：Distance should be 0.6 mm to 0.8 mm
Ignition Timing
Take off ignition screw
Check ignition LED to confirm ignition time:
When idle speed is 1500±100rpm，it matches “F” well.
Function of Ignition Advance Angle
Driving wheel
Driven wheel
Check gap, whether
any dirt and Carbon
Chechecks any broken
Checks gasket
Important! When install spark plunger, please tight
it by plug socket after hand.
Important! Because of CDI system function, there is
no necessary to adjust ignition time. If any problem,
please check ignition system.
Ignition Screw
