Lubricating oil quality and quantity
Do not revolve in the vernier when checking it.
If the oil level below the lower limit line, you must supplement the lubricating oil from the note
entrance to the upper limit line.
If lubricating oil is dirty, please change it.
Oil filter Jammed
Take off spring, filter net.
Clean it
Put filter net, spring, and filter net lid and revolve tight
Pour lubricating oil.
Replacement of lubricating oil
Take off filter lid and let oil out
Take up filter lid with revolving
Pour in lubricating oil.
Full capacity：0.8 Liter，Type：85W-140
Start engine to make sure no leakage problem
Stop engine and check oil quantity.
Attention!
During check oil quantity, you should guarantee the vehicle is in the
horizontal position. Let the engine works 2-3 minutes, then stops the
engine. After 2-3 minutes, then check oil quantity.

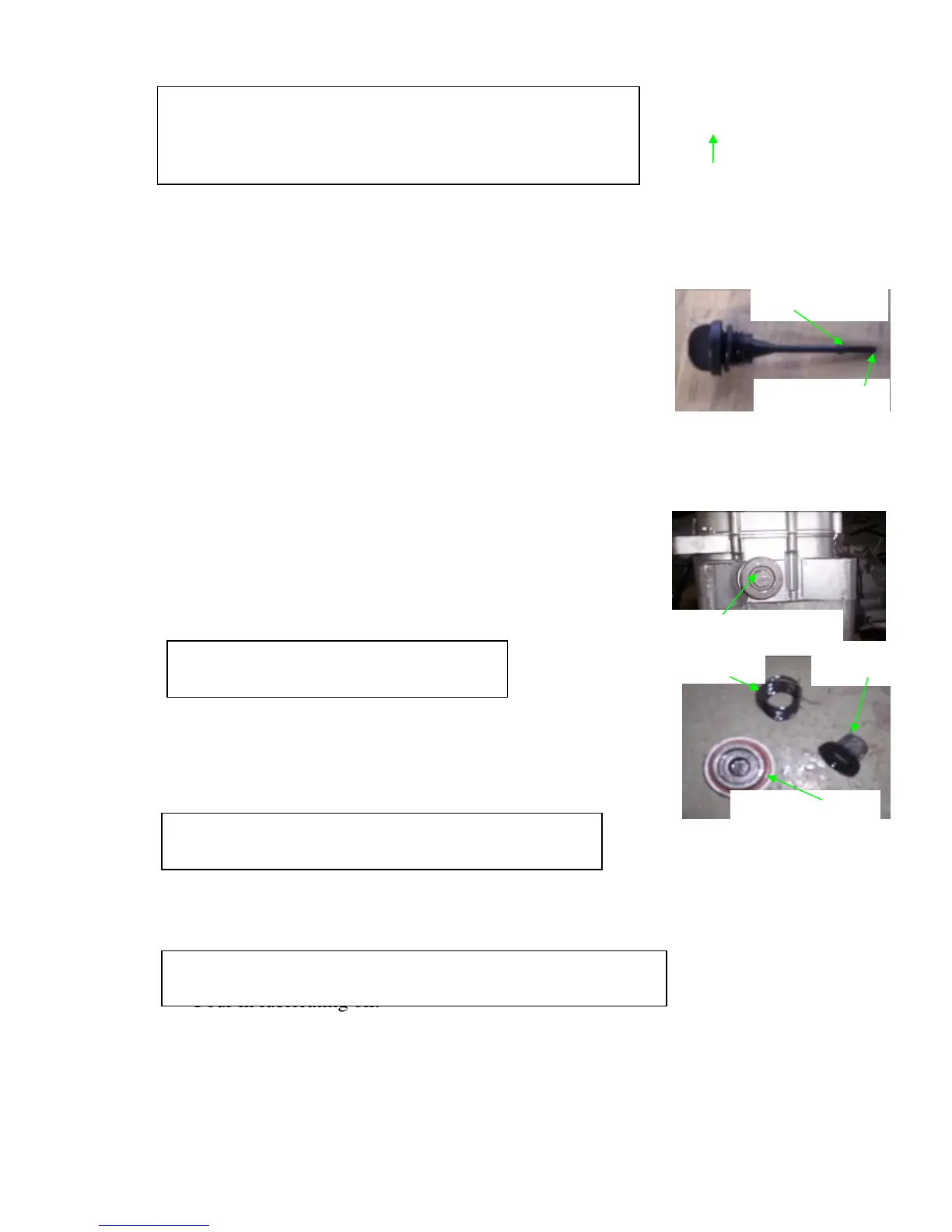

Oil vernier
Max Position
Min Position
Attention!
O
p
en
p
arts of net should be inside.
Filter net lid
S
p
rin
g
Filter net
Air
p
roof
g
asket
Attention! Put lubricating oil out on warm
condition.
Attention!
Check air-
p
roof
g
asket and chan
g
e it if an
y
broken.
Oil vernier
