29

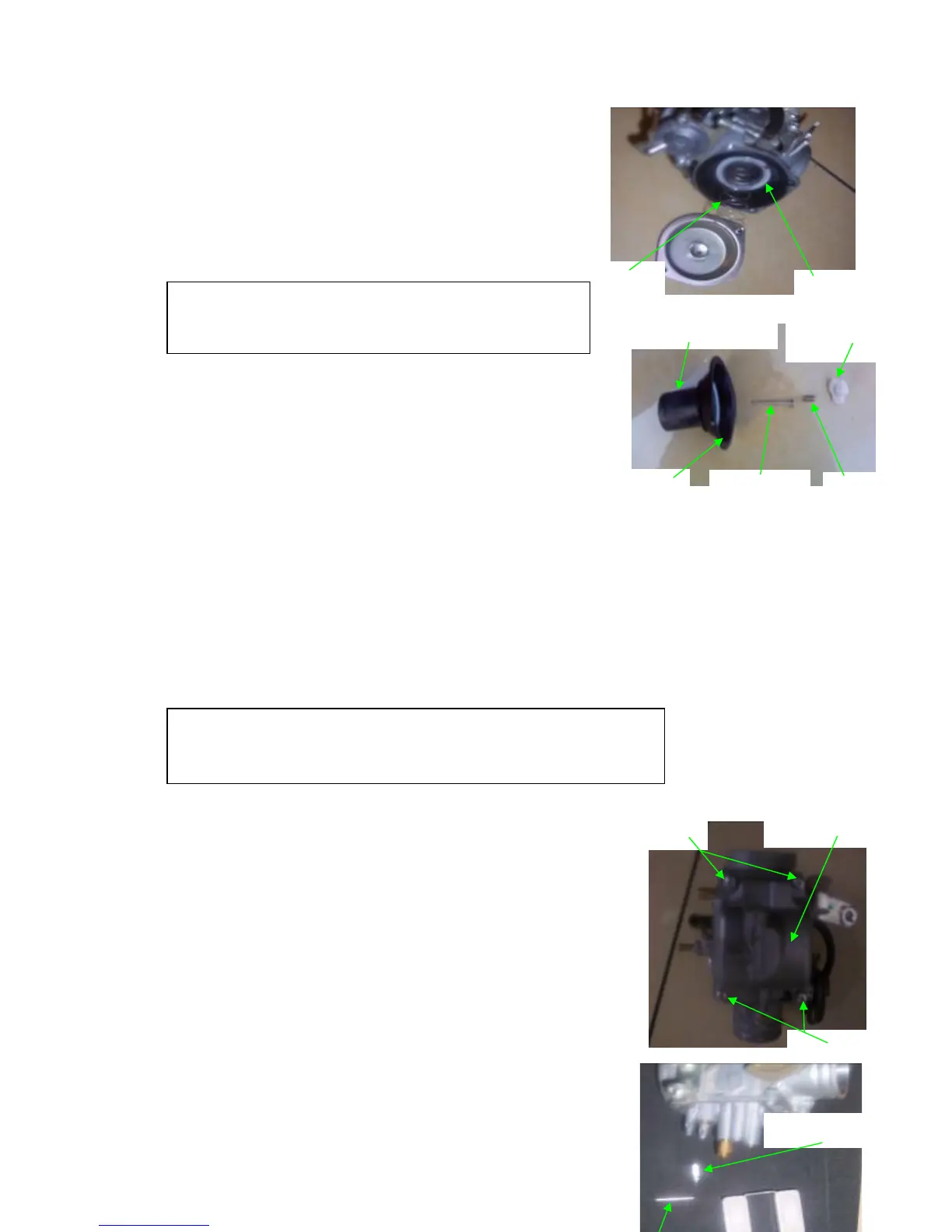

Take off spring and vacuum plunger.
Take off support pats, spring and ejector pin
Inspection of Vacuum Plunger
Check carburetor valve, ejector pin, no any destroyed and broken
Check septum without scar, olden and broken
Installation of Vacuum Plunger
Do installation in oppositive turn.
Support bottom of vacuum plunger, make sure that it is open and put septum to chimp position of
carburetor completely
Put on spring
Match septum hole with cover and fix cover
Floater Room
Take off four screws and floater room.
Inspection of Pin Valve
Check station of valve socket
Plunger
Spring
Important!
Please protect septum of vacuum plunger.
Vacuum Plunger
Septum
Nozzle Pin
Spring
Support pats
Important!
Support vacuum plunger till fix all screw of cover.
Bolt
Floater Room
Bolt
Pin valve
To Next Page
