GSW 110 - Page 12

12

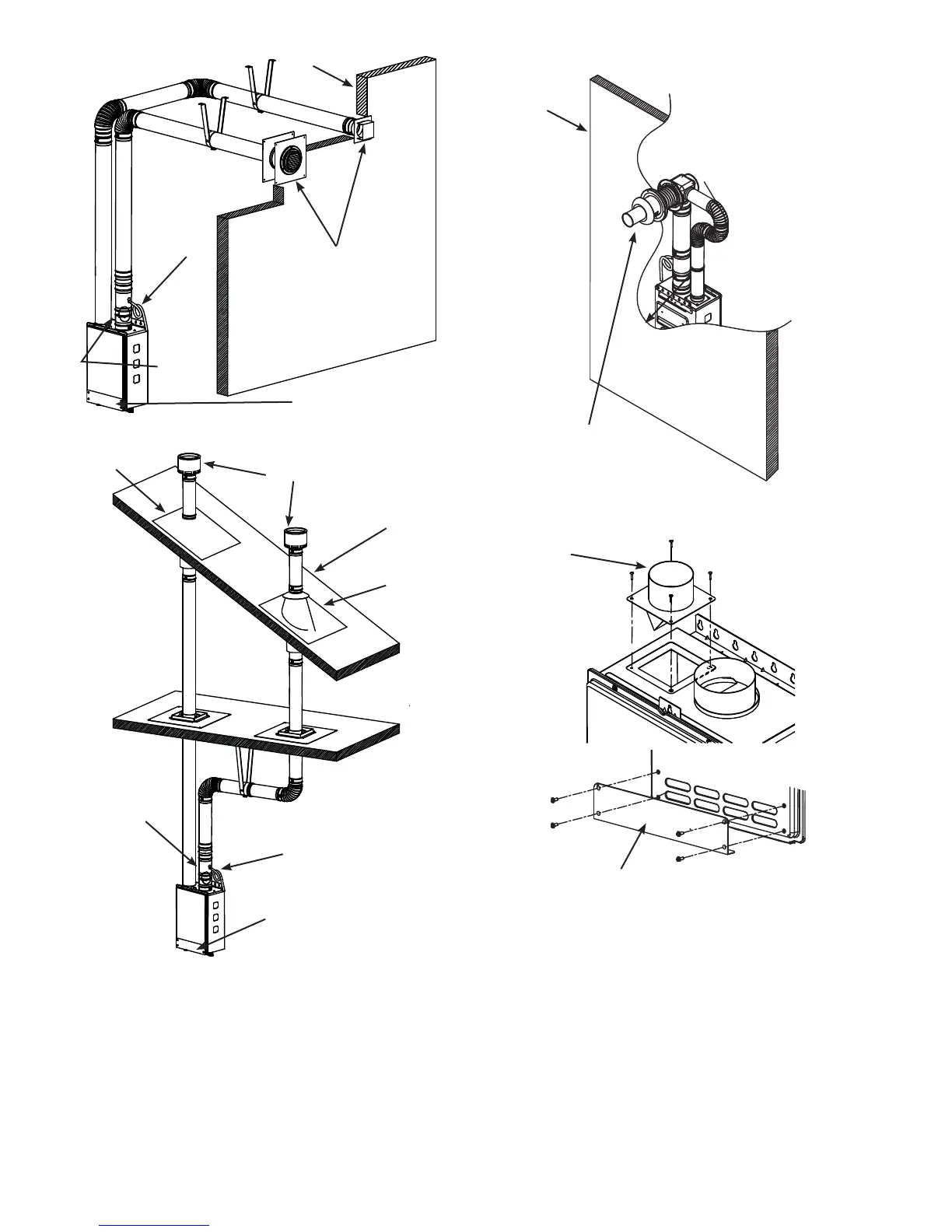

Horizontal Installation Diagram (with direct-venting)
Wall
Sidewall Vent
Terminator
Backfl ow
Preventer*
Vertical
Condensation
Drain**
See the picture below for
detailed connection instructions
to the Direct-Vent Conversion Kit.
Vertical Installation Diagram (With direct-venting)
See the picture below for
detailed connection instructions
to the Direct-Vent Conversion Kit.
Roof
Rain Cap
Backfl ow
Preventer*
Vertical
Condensation
Drain**
Roof Flashing
Roof Flashing
* Backflow Preventer (Recommended for freezing weather
conditions: 2°C (36°F) and below).
** Vertical Condensation Drain must be installed accor-
dance with local codes.
Horizontal Installation Diagram With Direct-Vent Concentric
Termination
Wall
Direct-vent Concentric
Termination
Installation Diagram of Direct-Vent Conversion Kit with
water heater
Intake port of
Direct-Vent
Conversion Kit
Plate of Direct-Vent
Conversion Kit
