10K standard model 20K long backup model

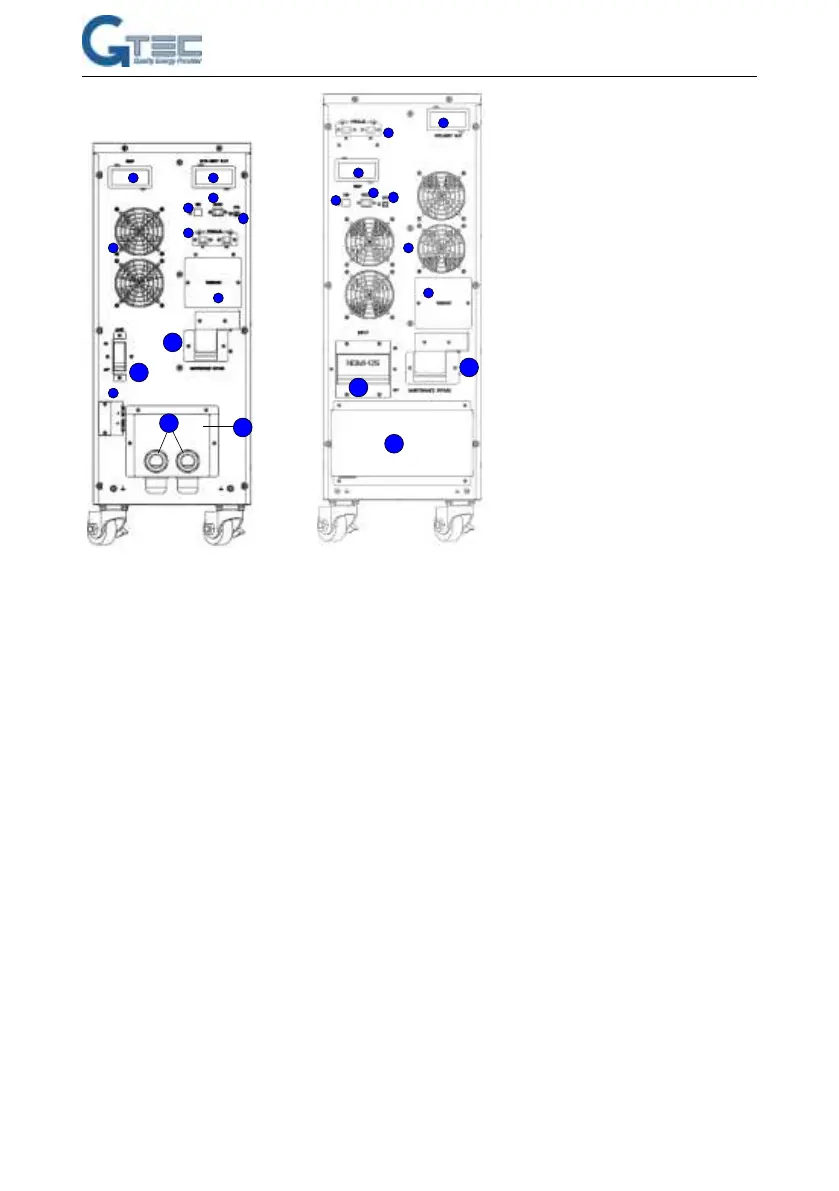

Fig 2. Rear View
Function instructions:
1. SNMP card slot (option)
2. Dry contactor slot
3. USB port
4. RS232
5. EPO
6. Parallel ports (option)
7. Fans
8. Reserved customer function
9. External battery connector.
10. Internal manual bypass
11. Input breaker
12. Cable entry protector
13. Terminal cover
