Ensure the lower handle is sitting completely
flush against the pivot yoke. Firmly push the
green locking clip until it clicks fully into place.
The clip can be pulled out to unlock the lower
handle should it need to be removed.

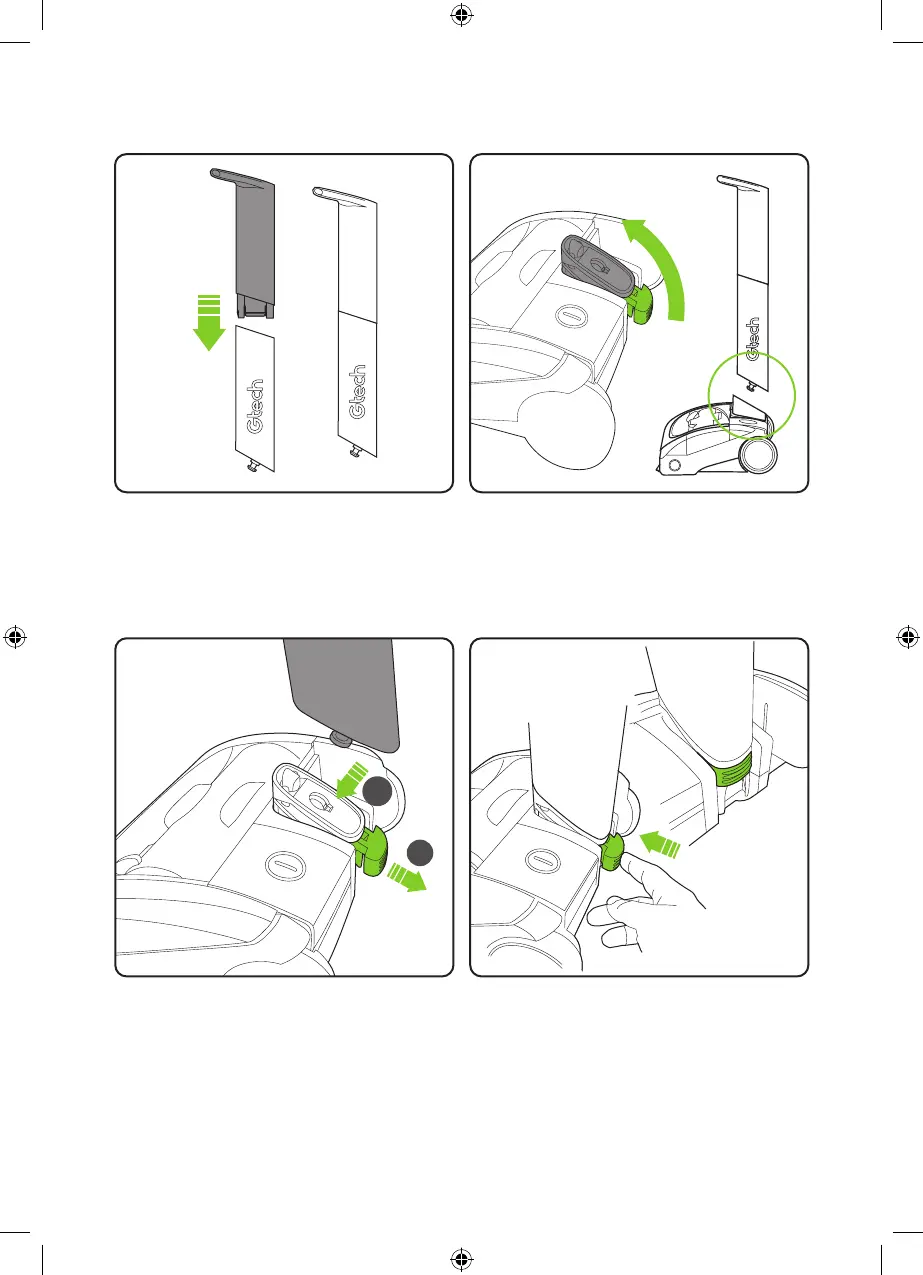

AirRAM: Assembly
Push the pivot poke to the upright position.
This might require some force.
Attach the lower handle to the head assembly
(See next step)
Pull out the green locking clip to allow the
lower handle to fit (the clip remains attached
to the head) Insert the metal pin on the lower
handle into the hole in the pivot yoke.
Push the two parts of the lower handle
together in the orientation shown above. They
will only fit one way. They will click into place
and remain permanently fixed.
1
2
