12

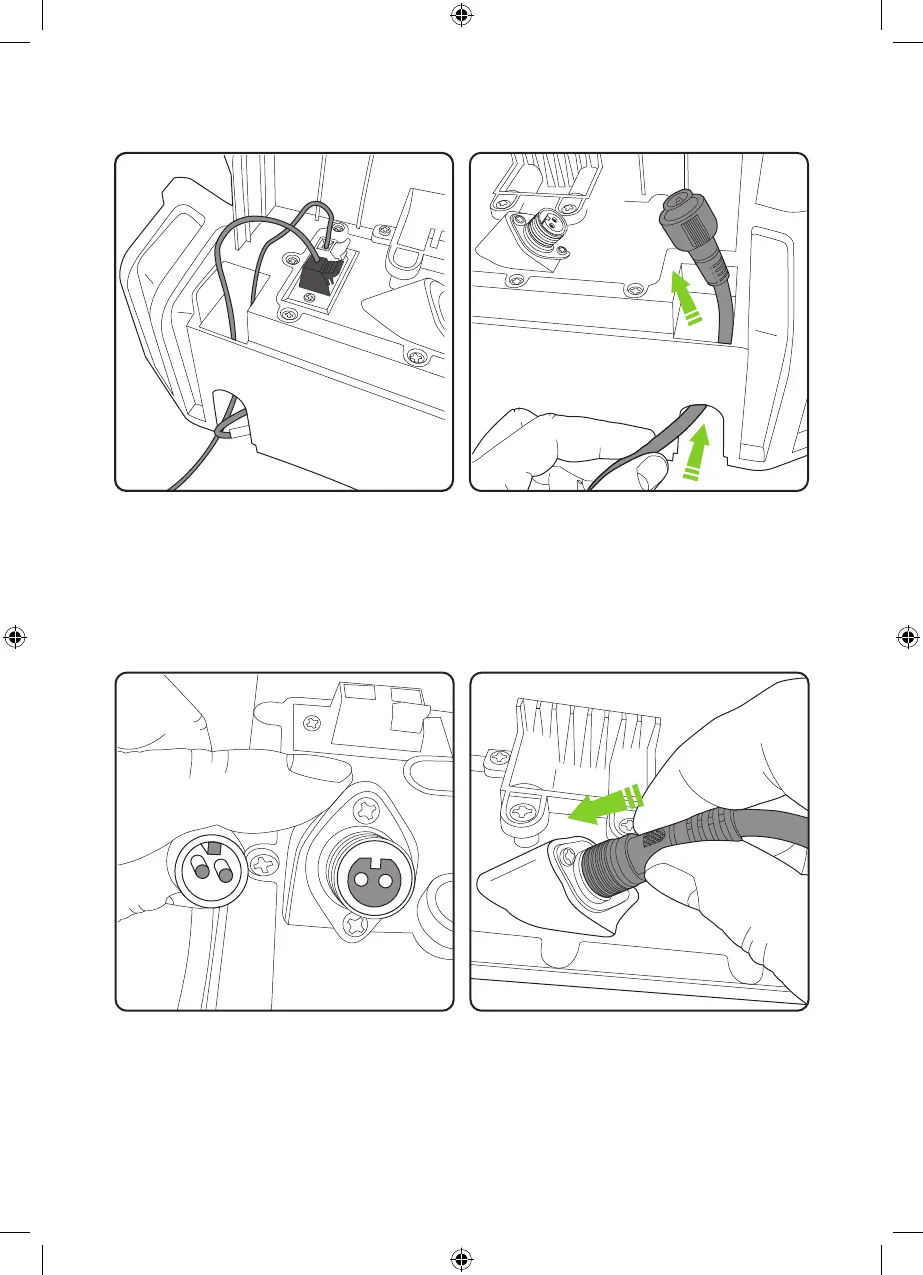

When you have completed your perimeter
cable it must return to the charge station and
be fed up through the unit and plugs in at the
black terminal.
Feed the power lead up through the other side
of the base station
Push the power cable into placePay attention to the cable fittings as there is
a keyway orientation detail to ensure correct
connection.
