Assembly

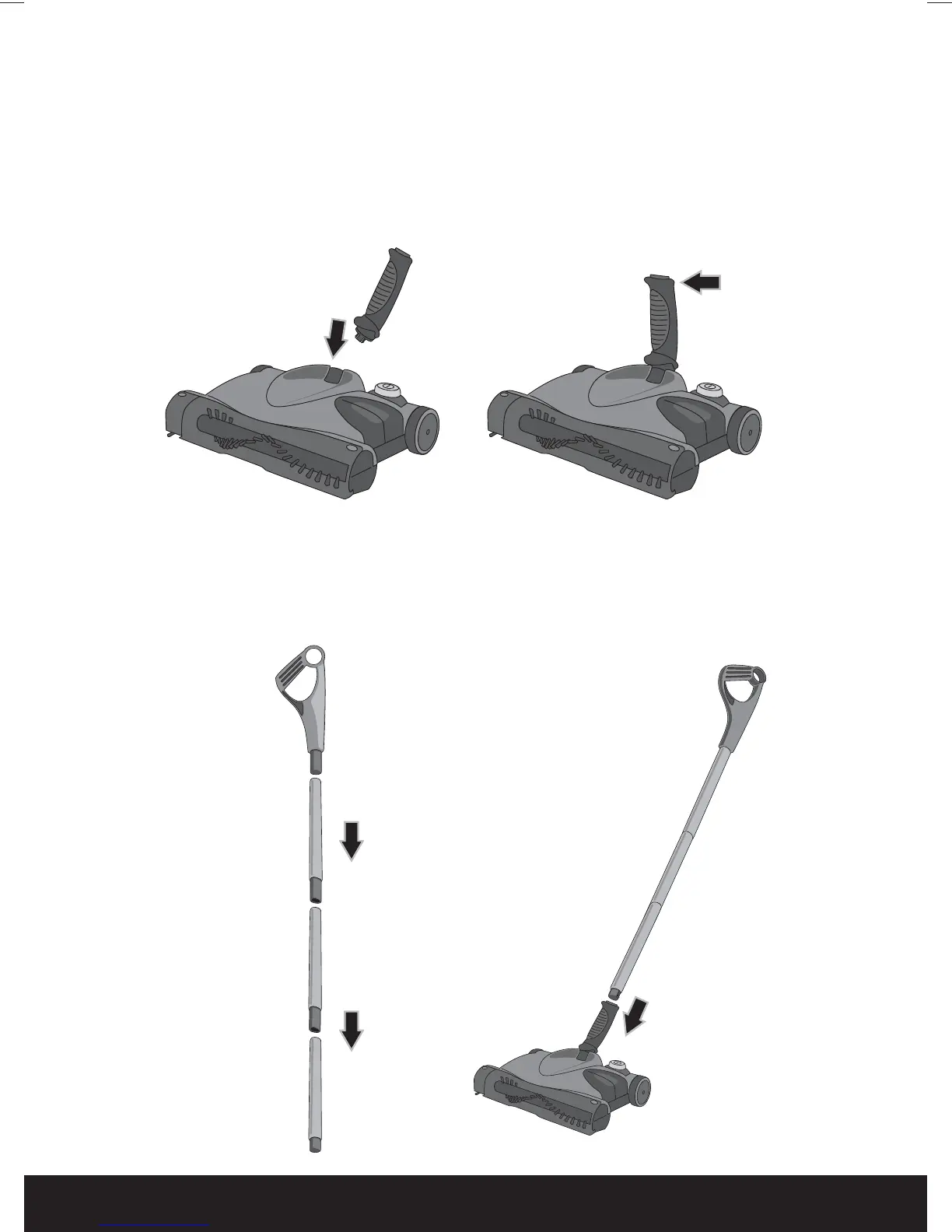

1 Fit the Lower Handle onto the Main Unit, ensuring the handle faces forward.
The clips on the Lower Handle push into the hole in the pivot joint on the Main
Unit. This will require some force to push together. Then push the handle upright.
2 Push the 3 Handle Tubes and the Upper Handle firmly together.
Note: the tube with the smallest end should be at the bottom. Press the tubes
against a non-marking floor to ensure they are fully connected. Then push the
assembled handle into the Lower Handle.
helpline 01905 345891 email support@greytechnology.co.uk web www.gtechonline.co.uk
5
smallest end at
the bottom
