7
3. CHARGER SPECIFIC WIRING DRAWINGS
2614A Connections
Model
Output
Volts
Output
Amps
Banks
Output Circuit
Breakers
Input Volts
Input Amps
Max
2614A 12/12 5/10 2 YES
115VAC
50/60Hz
3.75 Amp
2614A-230 12/12 5/10 2 YES
230VAC
50/60Hz
2.5 Amp

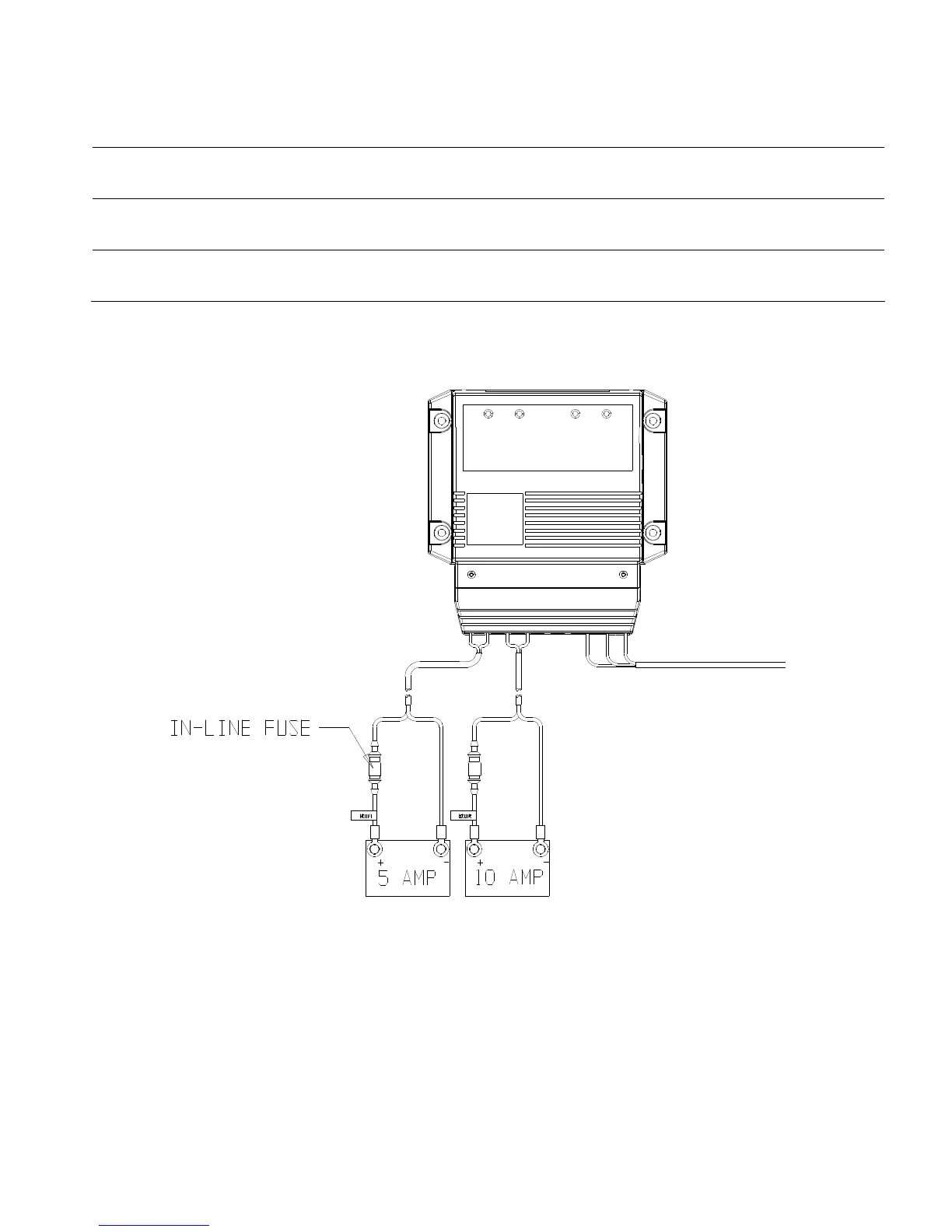

Diagram 1. Standard Connections for a 2614A (5/10 Amps) used with 2
independent 12V Batteries
2614A Connection Warnings: Do not connect the outputs of the 2614A in series
or in parallel while charger is AC powered ON. Charge separate batteries only.
While charger is AC powered on, battery switch must be set to “OFF”, “1”, or “2”,
not “both”.
