2621A Connections
Model
Output
Volts
Output
Amps
Banks
Output Circuit
Breakers
Input Volts
Input Amps
Max
2621A 12/12/12 5/5/10 3 YES
115VAC
50/60Hz
5 Amp
2621A-230 12/12/12 5/5/10 3 YES
230VAC
50/60Hz
2.5 Amp

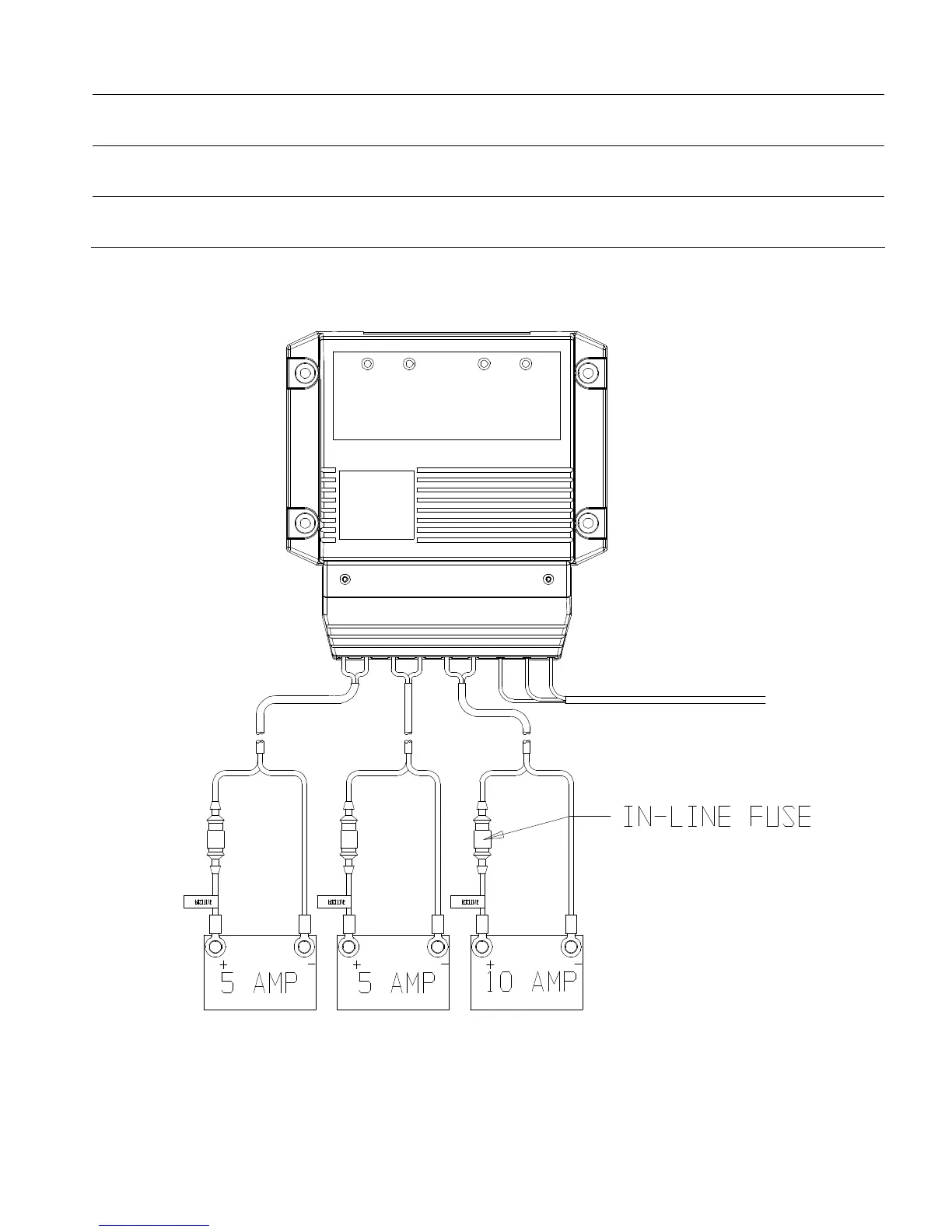

Diagram 2. Standard Connections for a 2621A (5/5/10 Amps) used with 3
independent 12V Batteries
Diagram 3. 2621A (5/5/10 Amps) used with 2 12V Batteries in series for a 24 V
system, and 1 other 12V battery.
