Guest Trolling Charger 2613A User Manual

4
Making DC Connections
Check polarity of the battery posts. The POSITIVE (POS., P, +) battery post usually
has a larger diameter than the NEGATIVE (NEG., N, -) post. Connect Red charger
output wire to POSITIVE post, Black charger wire to NEGATIVE. See below diagrams
for more details.
Battery Size Recommendations
The recommended maximum battery size per 5 amp bank is 60AH.
The recommended maximum battery size per 10 amp bank is 120AH.
2613A Connections
Model
Output
Volts
Output
Amps
Banks
DC Cable
Size
Size (inches)
L x W x H
Input Volts
Input
Amps Max
2613A 12/24/36 5/5/5 3 6’/4’/4’ 9.6 x 7 x 2.6
115VAC
50/60Hz
3.5 Amp

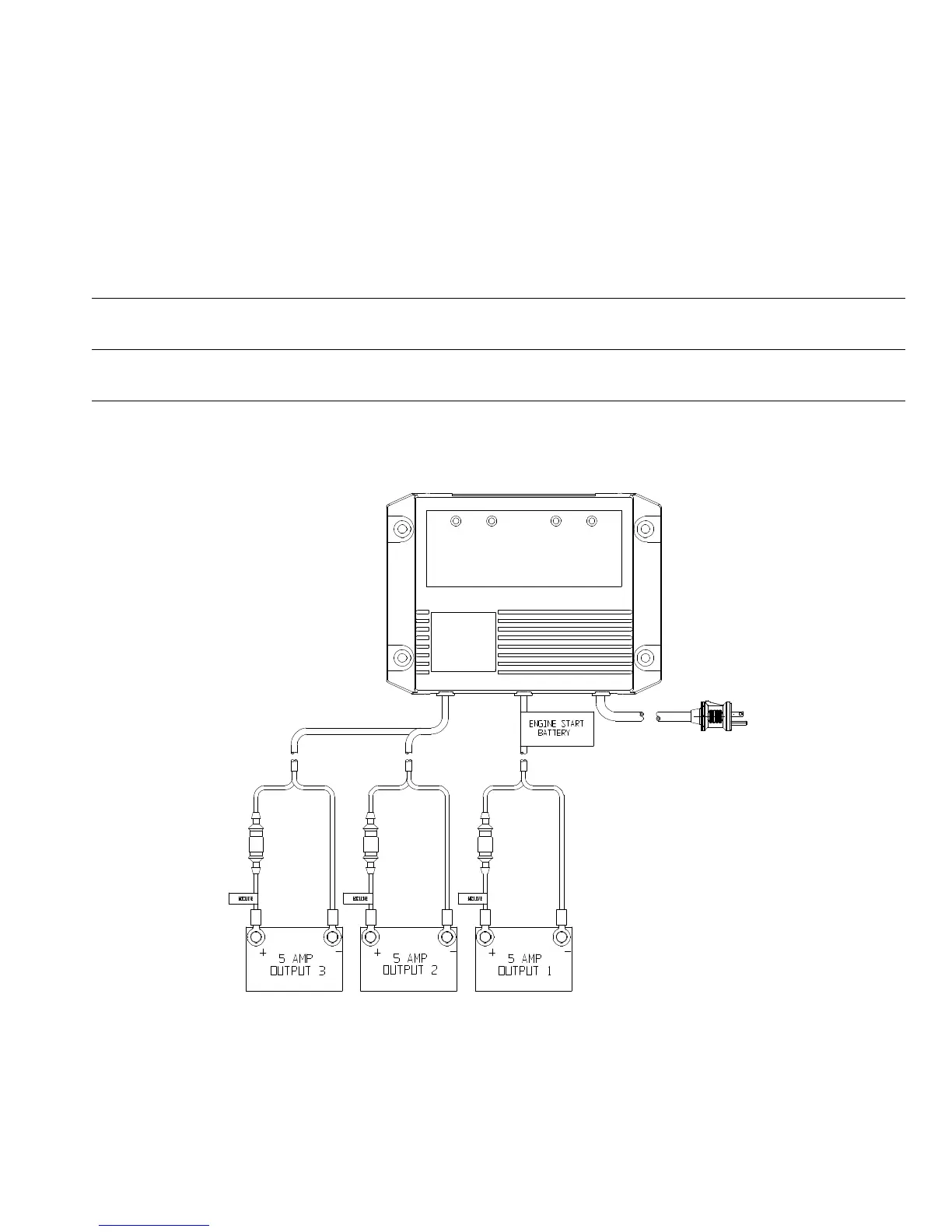

Diagram 1. 2613A (5/5/5 Amps) used with 3 independent 12V Batteries
2613A Connection Warnings: For the 2613A, only output 2 and output 3 may be
connected in parallel for a 12 V 10 amp output. The engine start output (Output
1) may not be connected in parallel with output 2 & 3.

Guest Trolling Charger 2613A Specifications
