2613A Connections

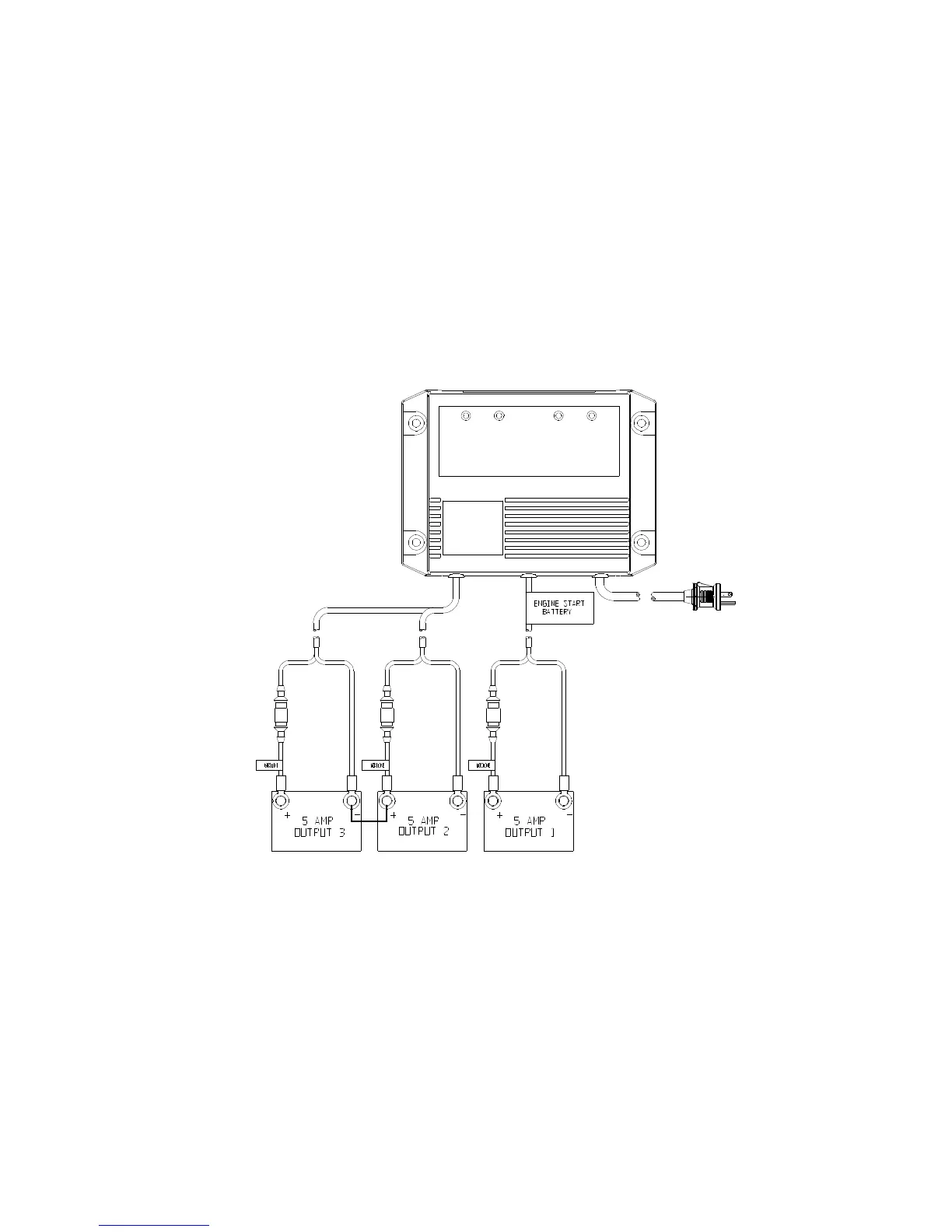

Diagram 2. 2613A used in a 24V system
To use a 2613A in a 36V system connect all 3 outputs in series.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Guest Trolling Charger 2613A and is the answer not in the manual?

Guest Trolling Charger 2613A Specifications

2613A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage5/5/5 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/4’/4’

2620A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/6’

2623A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/5/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’

2631A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage10/10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’
