3. When the brake(s) has/have been
released, the user will be lowered slowly.
If the total weight of the user and the lifting
accessories is low (e.g. less than 100 kg
(220 lbs), it may be necessary to help the

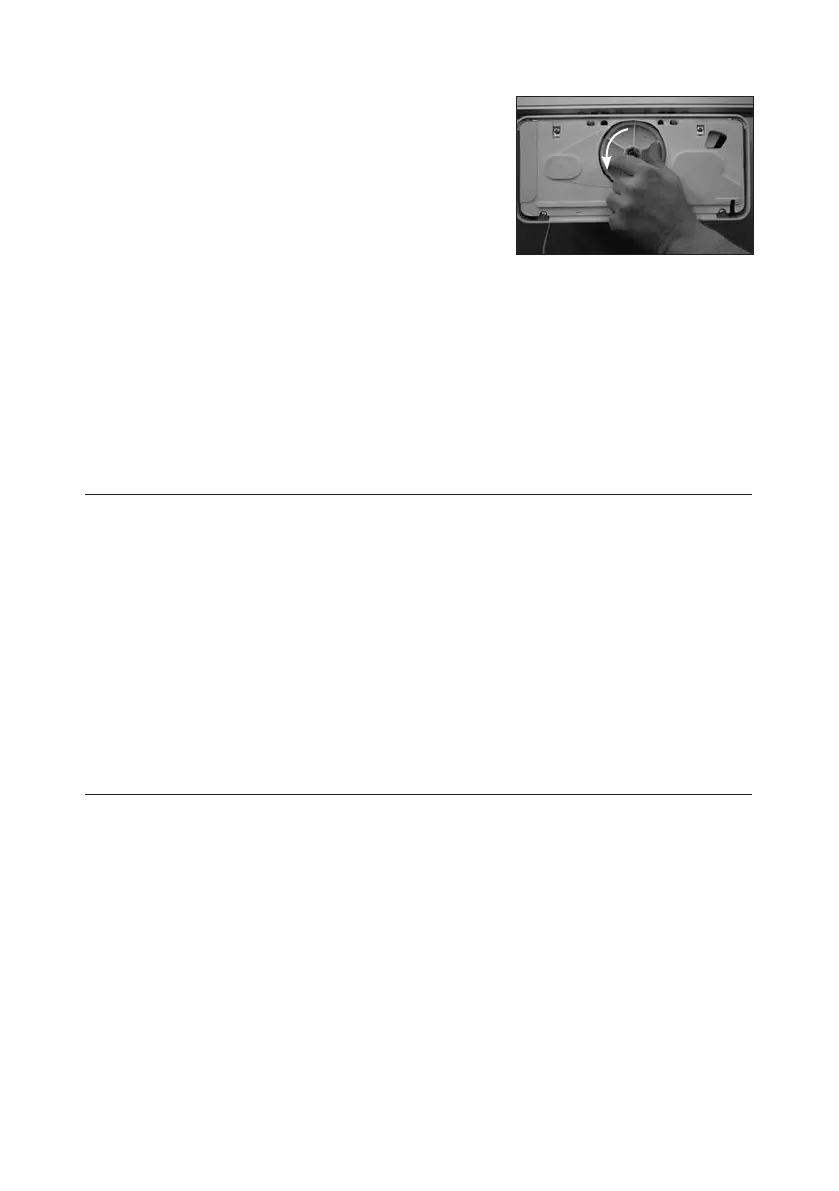

user down by turning the large belt wheel
located on the opposite side of the handle
and in the direction of arrow marked on
the belt wheel.
Note:
In case of a critical mechanical failure, the hoist contains a mechanical
protective system that stops the strap reel.
Warning!
After the mechanical protective system has been activated in the GH3, the
hoist MUST be serviced by a qualied technician or by the Guldmann Service
Team.
2.13 Charging/connection
The GH3 is automatically charged along the entire length of the straight rails.
This guarantees the hoist functionality and maintains the batteries to ensure
a long lifetime.
The indicator lamp on the bottom of the hoist turns yellow if the charge status
becomes low or if there is a complete interruption to the charging function.
The GH3 then has a limited number of lifts available at a time and must be
re-charged.
The transformer must be connected and switched on before charging can
take place. A green indicator lamp on the transformer indicates that it is
connected and switched on.
2.14 Accessories
Guldmann – ABC slings and lifting hangers
Obtain a brochure from your distributor, manufacturer or at
www.guldmann.com
Extension strap 550459
The extension strap is used where the distance between the lower part of the
rails and the oor exceeds 3.5 m (11' 7"). The extension strap is available as
an accessory.
Cross Hanger 550800 with Connecting Bar 550544
Positioning the sling:
Cross Hanger is positioned with the lifting arms marked “FRONT” farthest
away from the user. The rear straps of the sling are to be positioned on the
two hooks closet to the user and the leg straps on the hooks farthest away
from the user.
