1.09 Installation of GH3 Cross hanger and Horizontal lifter
Lifting hangers from other manufacturers
Guldmann shall not be liable for faults or accidents that may occur as a result
of using lifting hangers made by other manufacturers.
If there is any doubt about the selection or use of a lifting hanger,
please contact your supplier.
The lifting hanger can be installed to the lifting strap without the use of any
tools.
1.
Installation of GH3 Cross
lifting hanger
Start with the installation of the GH3 lifting
beam. Place each of the lifting straps oval
hook in the eye of the GH3 lifting beam,
one on each side (Fig. 1 and 2).

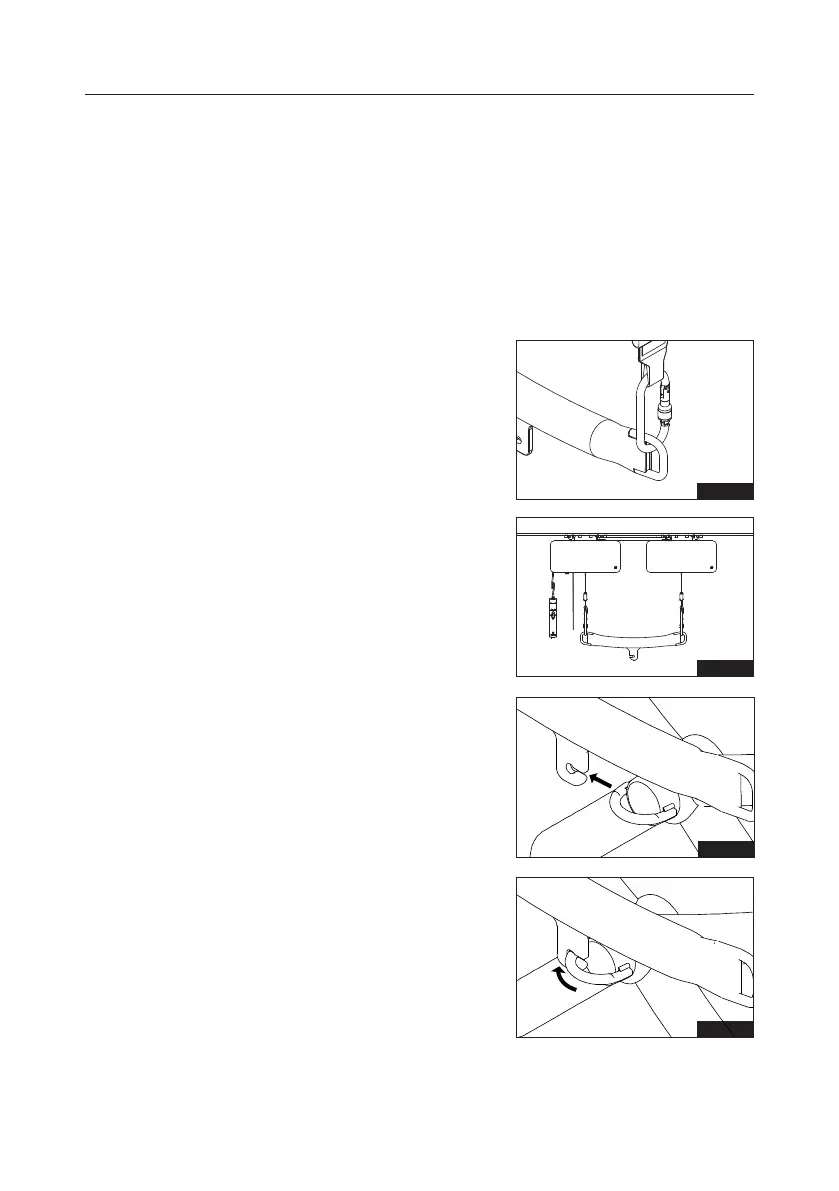

Fig. 1
Important:
Check that none of the lifting straps
are twisted after the installation of the
lifting beam and ensure that the lifting
beam is horizontal during the lift!
Fig. 2
2. Tilt GH3 Cross hanger to slide the round
hoop in to the hook (Fig. 3)
Fig. 3
3. Turn the at part of the Hoop out of
the hook before lowering the GH3
Cross hanger to horizontal position
(Fig. 4 and 5)
Fig. 4
