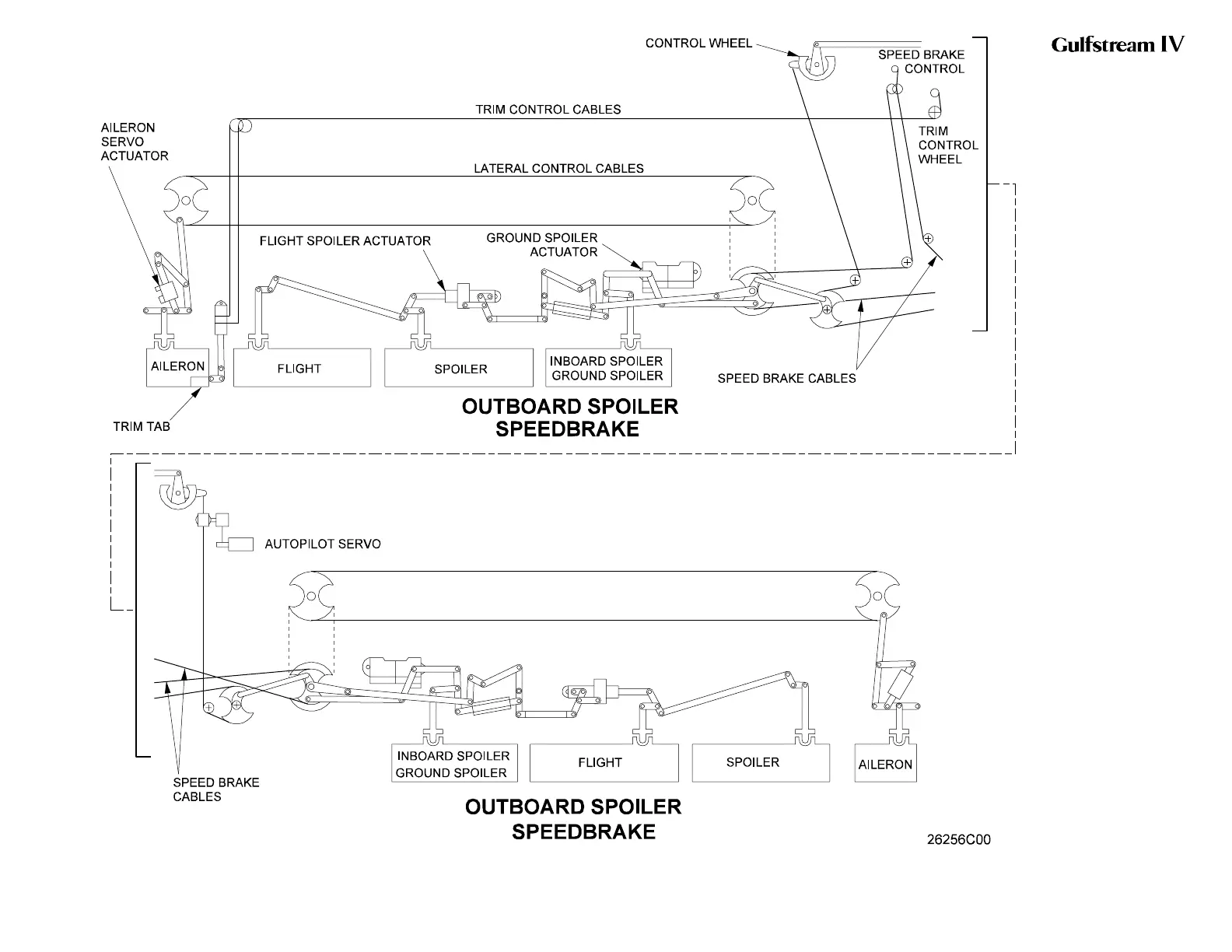

Roll Flight Control System
Simplified Block Diagram
Figure 15
OPERATING MANUAL
2A-27-00
Page 47 / 48
January 31/02
