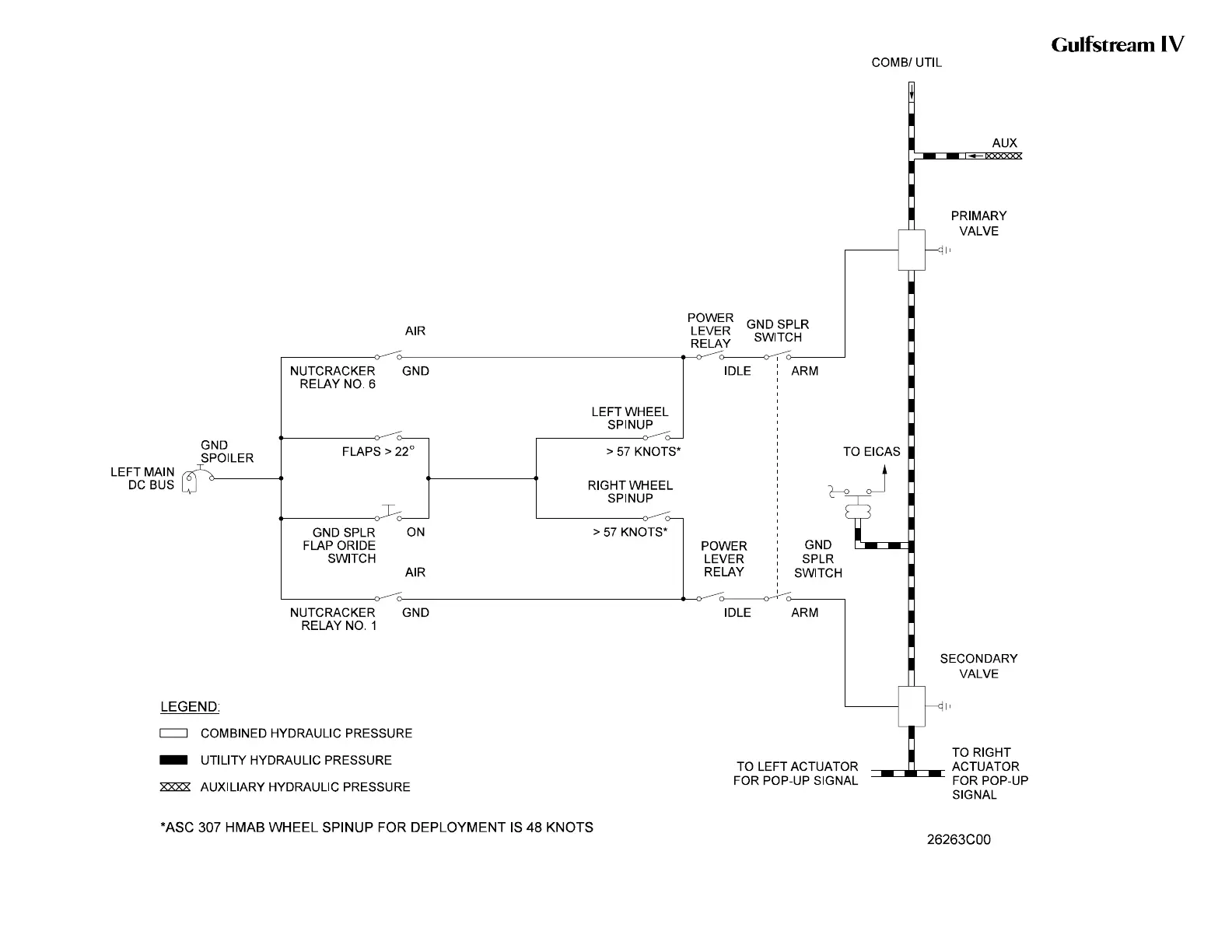

Spoiler Control System
Simplified Electrical
Diagram
Figure 22
OPERATING MANUAL
2A-27-00
Page 77 / 78
January 31/02
