GW Instek GDS-1000B Series User Manual

Using the Data Logger
11

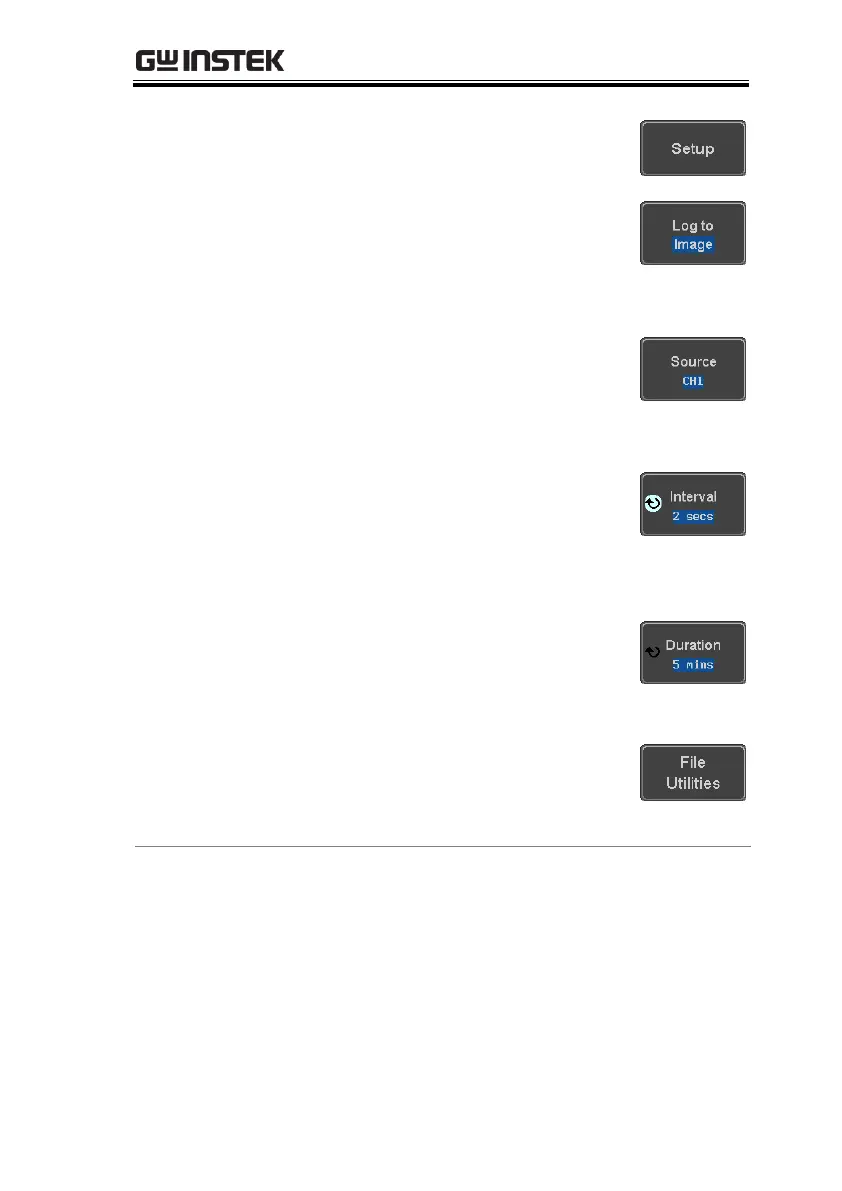

2. Press Setup.
3. Press Log to from the side menu
and select what type of data to log,
waveform data or screenshots.
Log to
Image, Waveform
4. Press Source from the side menu
and select a source channel to log if
waveforms are to be logged.
Source
CH1 ~ CH4, All Displayed
5. Press Interval and set the logging
interval time.
Interval
Data: 2secs ~ 2mins
Image: 5secs ~ 2mins
6. Press Duration and select the
logging duration time.
Duration
5mins ~ 100hrs.
7. From the bottom menu, press File
Utilities and set the save file path.
See the File Utilities chapter of the
user manual.
