GW Instek MFG-2000 Series Quick Start Guide

GETTING STARTED
13

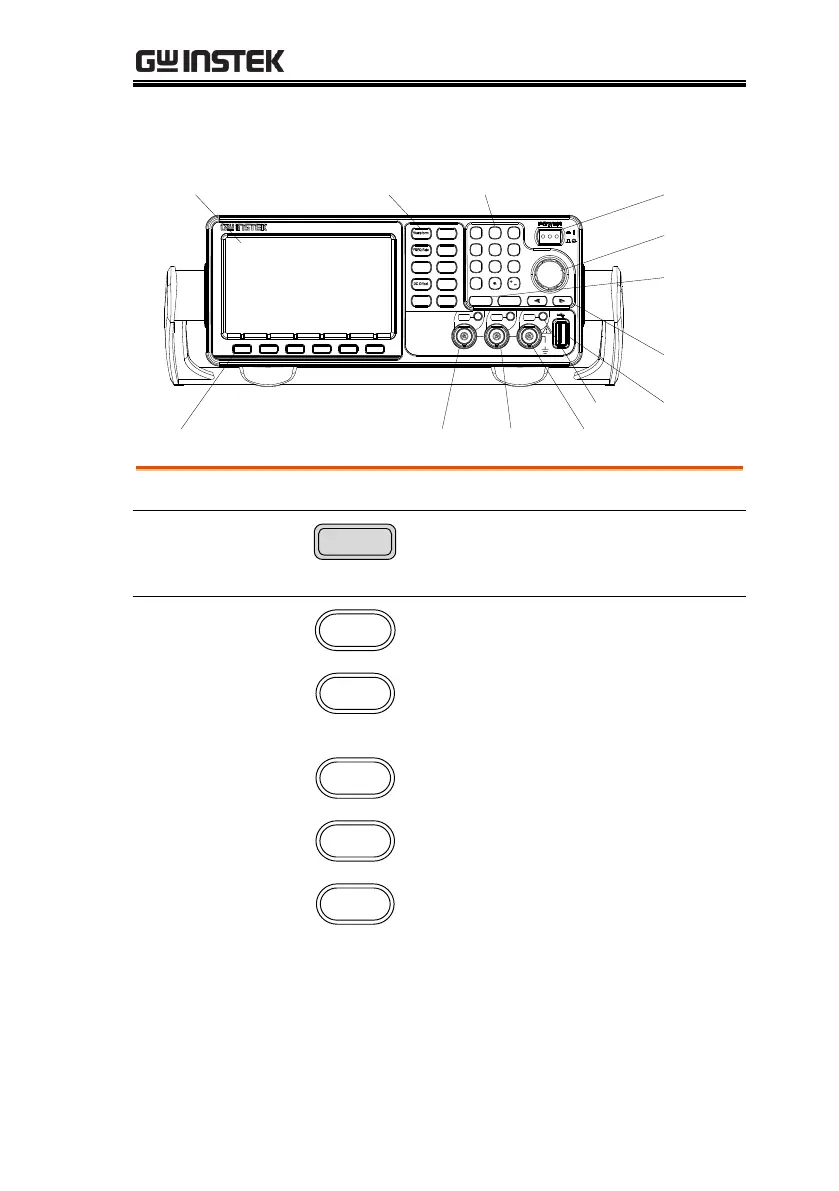

MFG- 2260M/2230M Front Panel
  
   
       
  
   
   
          










/

 

           
M F G - 2 2 6 0 M
    
    
 
 
    
M F G - 2 2 6 0 M / 2 2 3 0 M
                
  
          
      
     
      

      
                                
                           
              
                              
    
       
        

                       
   
                                     
        
             
       
               
                                  
                                
         
          
LCD Display
TFT color display, 480 x 272 resolution.
Function
Keys
F1~F6

Activates functions that
appear on the bottom of the
LCD screen.
Operation
Keys

The waveform key is used to
select a type of waveform.
Q
The FREQ/Rate key is used
to set the frequency or
sample rate.

AMPL sets the waveform
amplitude.

Sets the DC offset.

The UTIL key is used to
access the save and recall
options, update and view the
firmware version, access the
calibration options, system
setting, Dual channel
functions and frequency
meter.
