GW Instek MFG-2120MA User Manual

MODULATION
153
Select the PM Source
The function generator excepts internal or external sources for phase
modulation. The default source is internal.

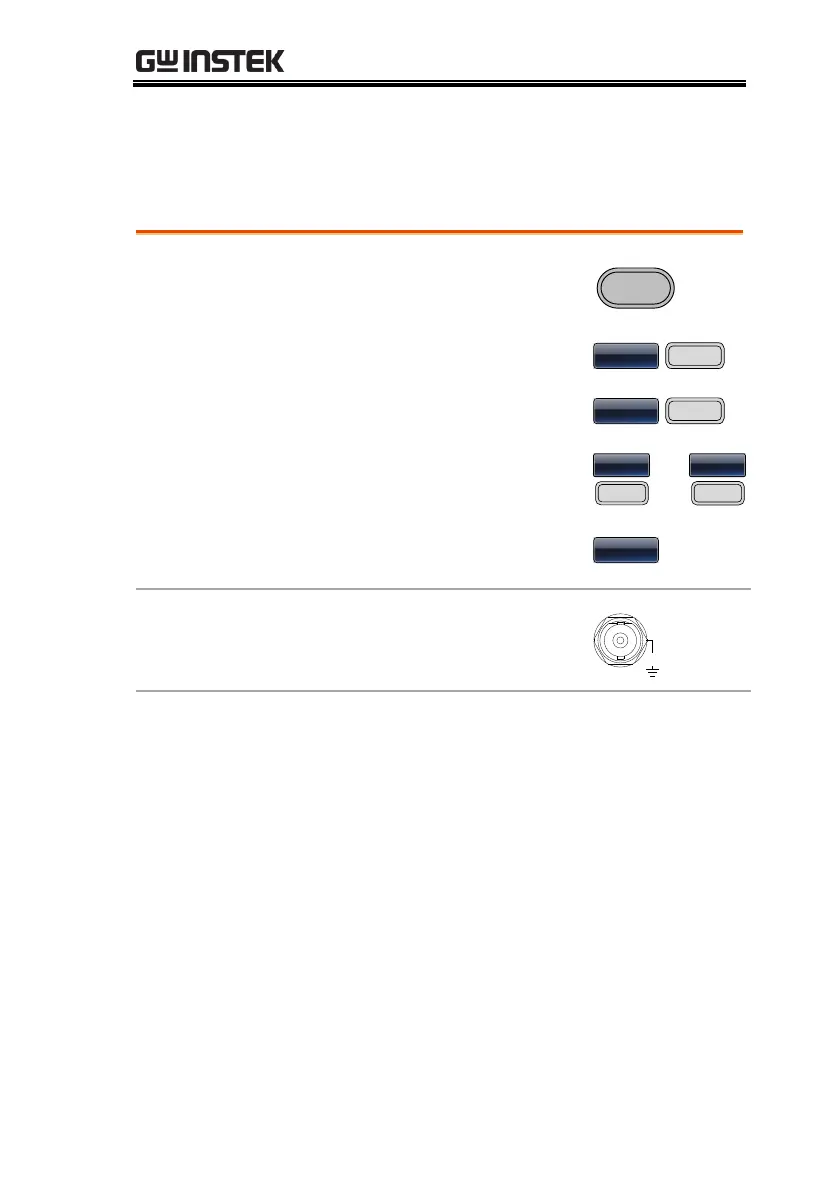

Panel Operation
1. Press the MOD key.

2. Press F4 (PM).


3. Press F1 (Source).


4. Press F1 (INT) or F2 (EXT) to
select the source.


~


5. Press return to return to the
previous menu.

External Source
Use the MOD INPUT terminal
on the rear panel when using an
external source.
42V
MAX
MOD
Note
If the modulation source is set to external, the
phase deviation is controlled by the ±5V MOD
INPUT terminal on the rear panel. For example, if
the modulation voltage is +5V, then the phase
deviation is equal to the phase deviation setting. If
the modulation voltage is less than +5V, then the
phase deviation will be less than the phase
deviation setting.
