Master-Slave Parallel Calibration
Master-Slave
Configuration
The F-16 function setting can be used to calibrate
the output of PSU units connected in parallel.
If you feel the accuracy is not good enough when
you measure the accuracy in parallel mode, the
parallel calibration can be used to get better
measurement accuracy.
Steps

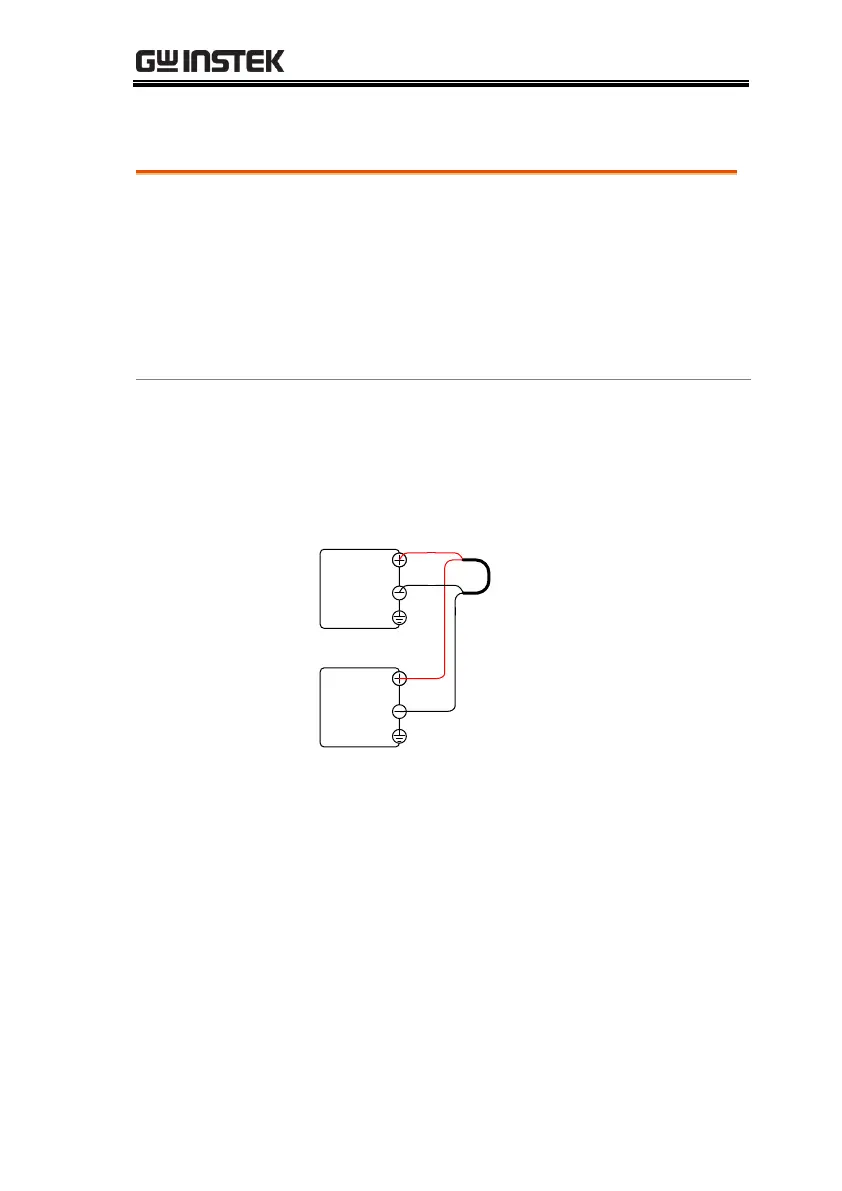

1. Short all the terminals together. This is best
accomplished by connecting the master and all
the slave units in parallel and then shorting the
output terminals.
Slave #1, 2, 3
Master
Output
Ground
Output
Output
Ground
Output
Short
2. Connect the slave units to the
master unit using the analog
control connectors as described
previously.
Page 71
3. Configure F-93 (Master/Slave)
setting for each master/slave unit,
as described previously.
Page 75
4. Cycle the power on the units (reset the power).
