PSU Series Quick Start Guide
18
10.
Ground
Screw

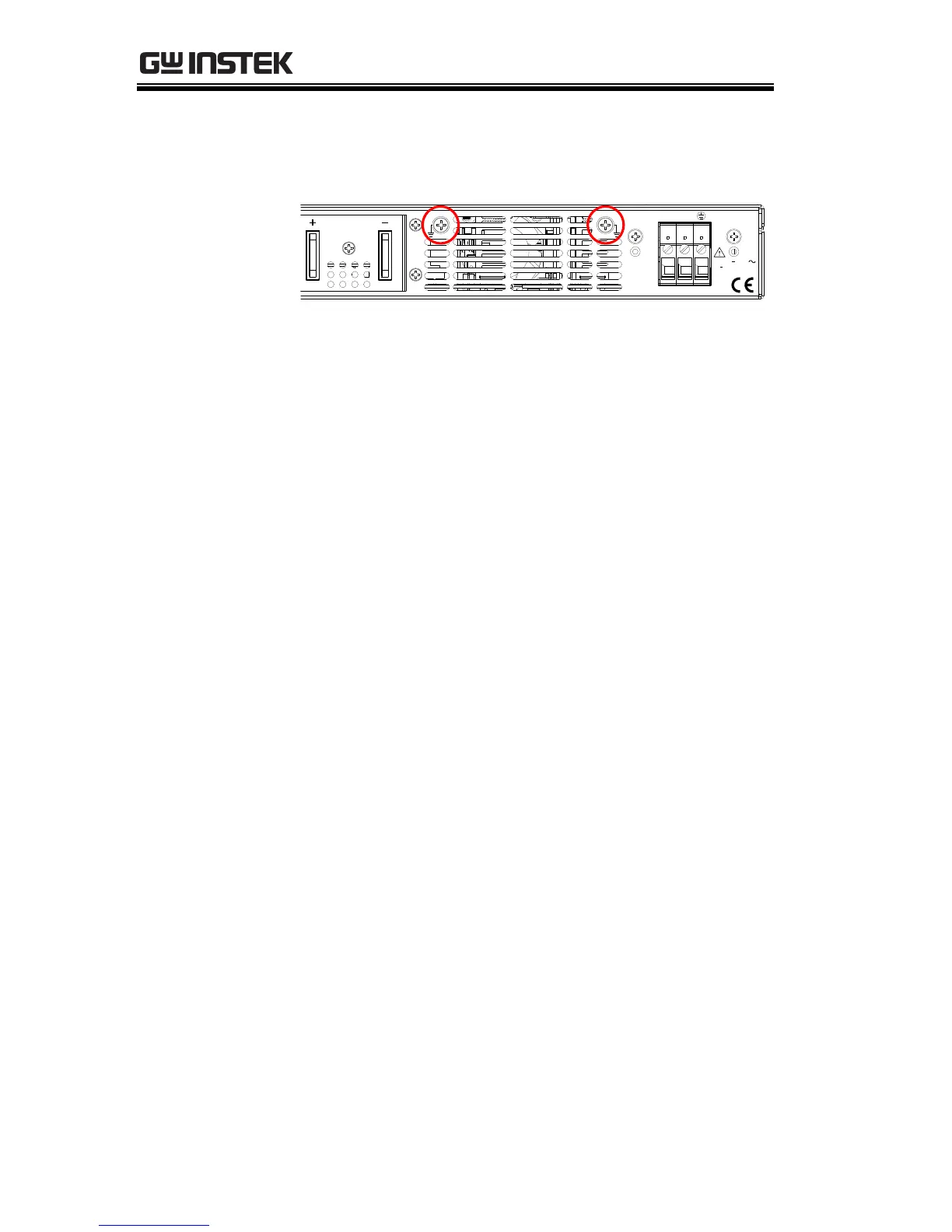

Connector for grounding the output (two
positions, shown in red).
ISOLATED PROGRAMMING
4 - 20mA
L N
AC INPUT
DC OUTPUT
LANRS485 / 232
OUT IN
ANALOG PROGRAMMING
S LS SLSNC
REMOTE SENSE
100 240V
2000VA MAX.
AC
47 63Hz
1 2 3 4 5 6 7 8
