28
GYSPOT ARCPULL 200
EN

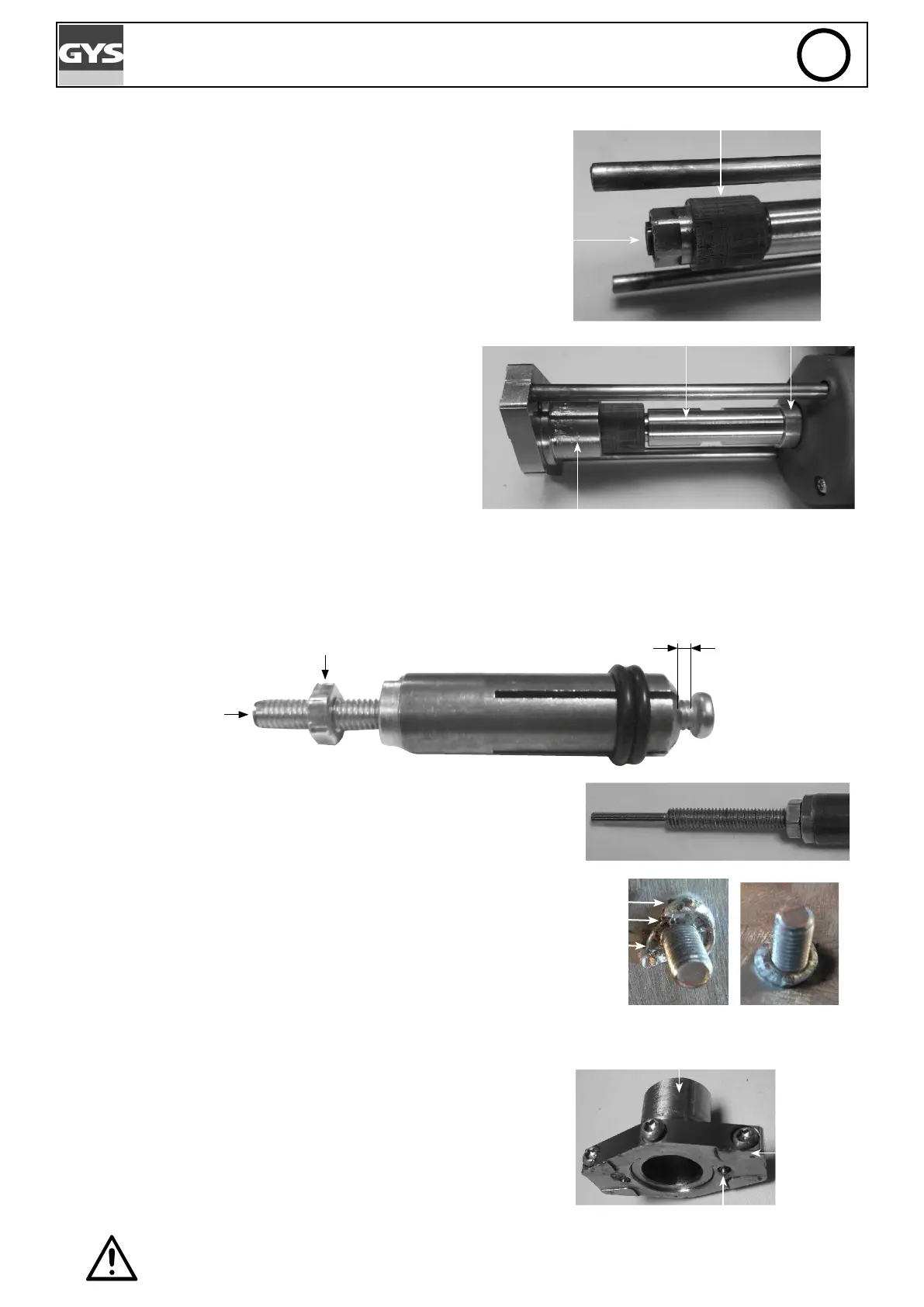

Repositioning of a dowel pin holder
• Position and screw thedowel pin holder into the barrel of
the gun.
Put the protection nozzle on the dowel pin support and tigh-
ten slightly.
• Put the dowel pin holder previously set int protection
nozzle.
• Screw on the protective nozzle.
• Reposition and screw the pad and the cover onto the earth
rod.
Note: When screwing on the various components, the gun
barrel must always be tightened/locked with a spanner.
Dowel pin holder
Protective
nozzle
Dowel pin holder support
Pad and cover
Barrel
Adjusting a dowel pin holder
• Unscrew the bolt and nut of the dowel pin holder.
• Insert the dowel pin in the nut holder.
• Aim at the screw of the dowel pin holder to obtain 5mm between its extremity and the thread of the insert ( threaded
stud)
• Block the nut.
locknut
screws
5 mm
Note: It is possible to weld inserts up to 45mm long. Above 30mm long, it
may be necessary to unscrew completely and reverse the direction of the
dowel pin holder adjustment screw.
Note : If the stud weld shows the marks of the stud holder at the
weld, adjust the stud holder screw to pull the stud out of the stud
holder a little more.
Marks
Installation of the earth rods pad and the protective gas cover:
• Insert the protective gas cover into the earth rod pad and lock it with
the screw.
Protective gas cover
Earth rod pad
Push buttons
It is imperative that the cover is placed on the other side of the pad pushbuttons.
