H3C MSR 900 Series User Manual

3-3
Step2 Click Next>> to enter the page displaying LAN interface parameters,
as shown in
Figure 3-4.

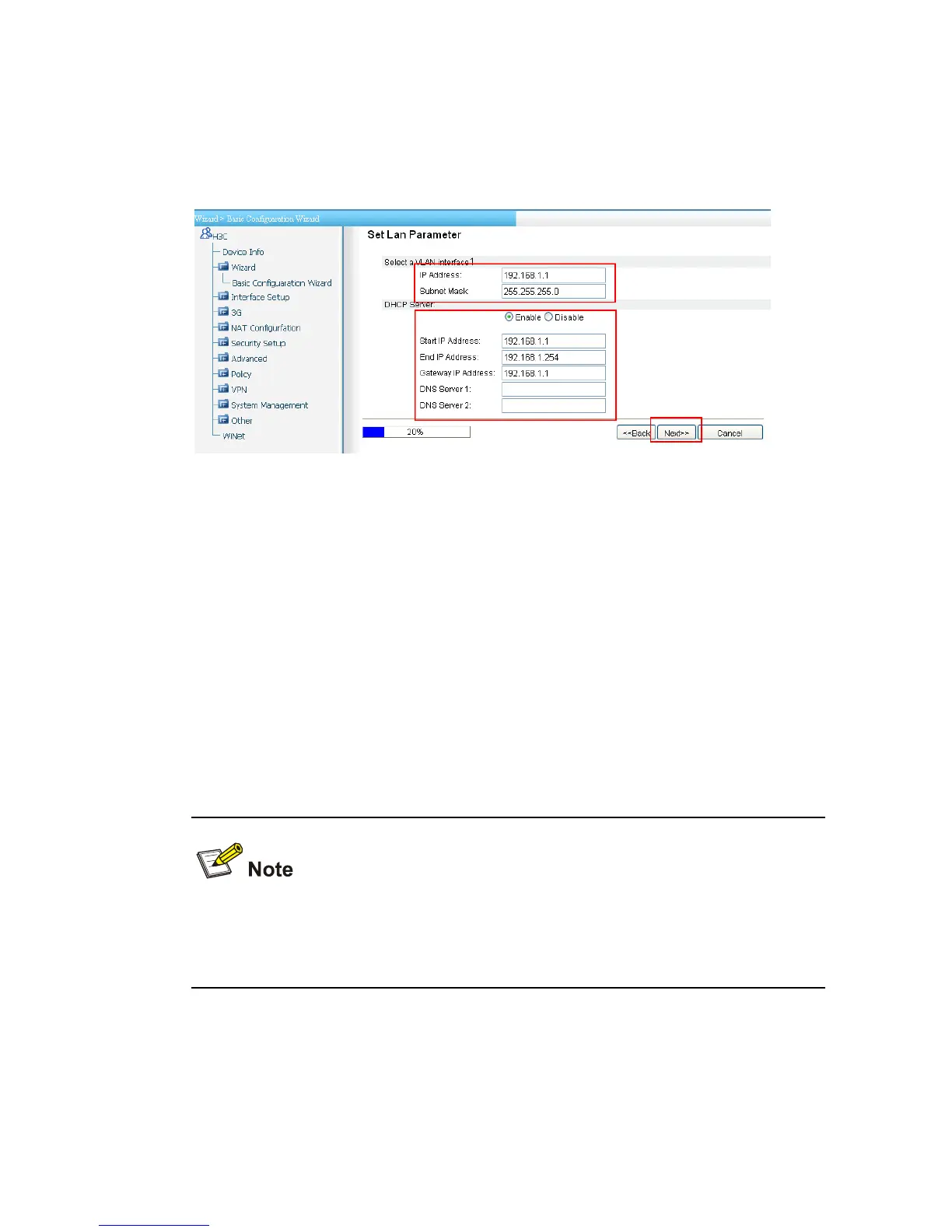

Figure 3-4 LAN interface configuration page
z By default, all Ethernet interfaces belong to VLAN 1. Therefore,
you need to specify the IP address and mask of the device as the
IP address and subnet mask of VLAN 1.
z You can also configure the device to act as a DHCP server to
dynamically assign IP addresses for the terminals. To do this,
select the radio button before Enable in the page shown above
and type the address range of the DHCP address pool in the
Start IP Address and End IP Address fields.
The IP address of the device cannot be included in the DHCP
address pool.

H3C MSR 900 Series Specifications

General

Brand	H3C
Model	MSR 900 Series
Category	Network Router
Language	English
