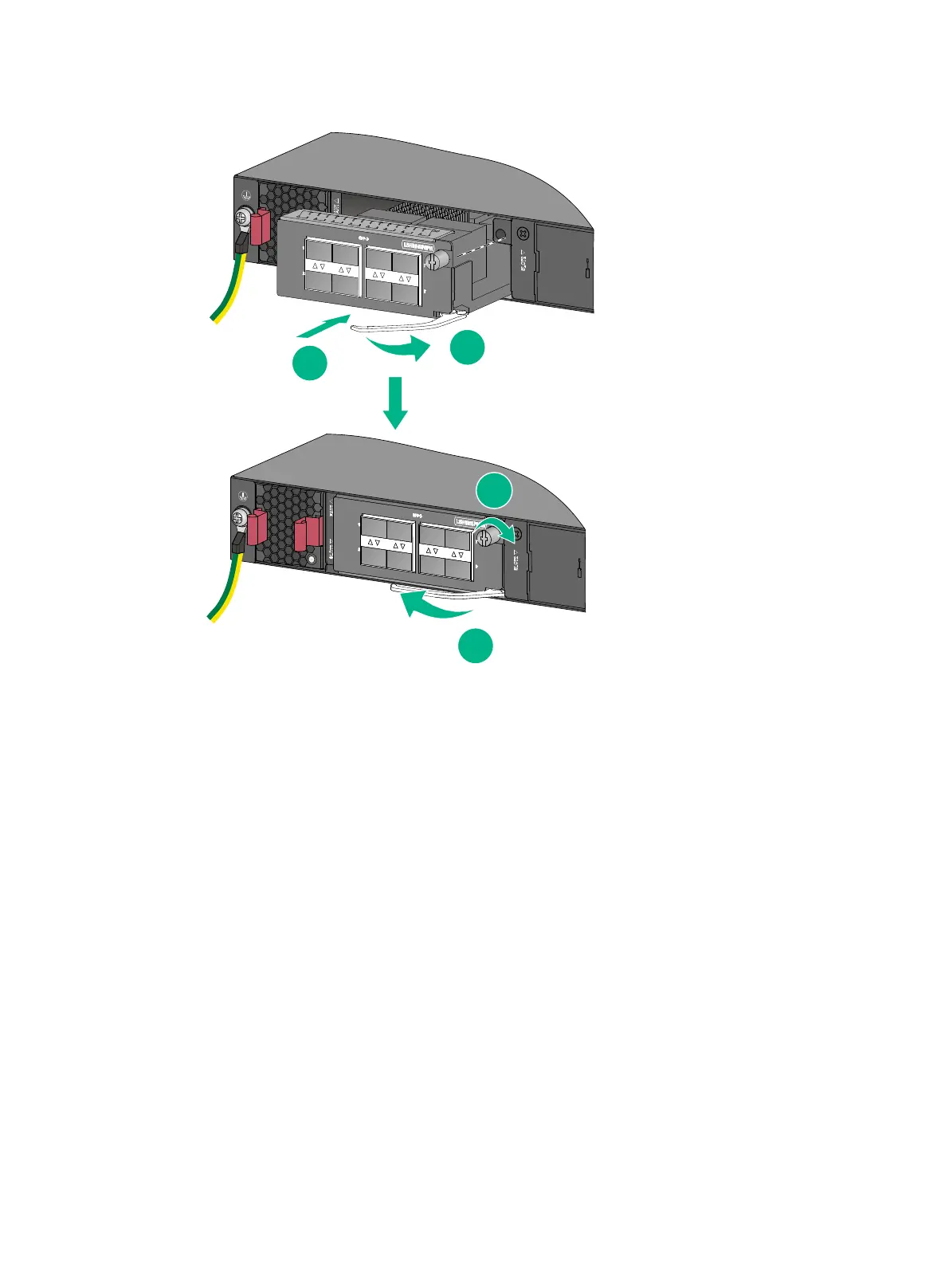

Figure2-40 Installing an expansion card with one ejector lever
5. (Optional.) If the expansion card has two ejector levers, perform the following steps to install it:
a. Rotate outwards the left and right ejector levers of the card, as shown by callout 1 in
Figure2-41.
b. Gently push the expansion card into the slot along the guide rails until the expansion card
has good contact with the chassis, as shown by callout 2 in Figure2-41.
c. Rotate inwards the left and right ejector levers, as shown by callout 3 in Figure2-41.
d. Use a Phillips screwdriver to fasten the captive screws on the expansion card, as shown by
callout 4 in Figure2-41.
2
1
3
4
