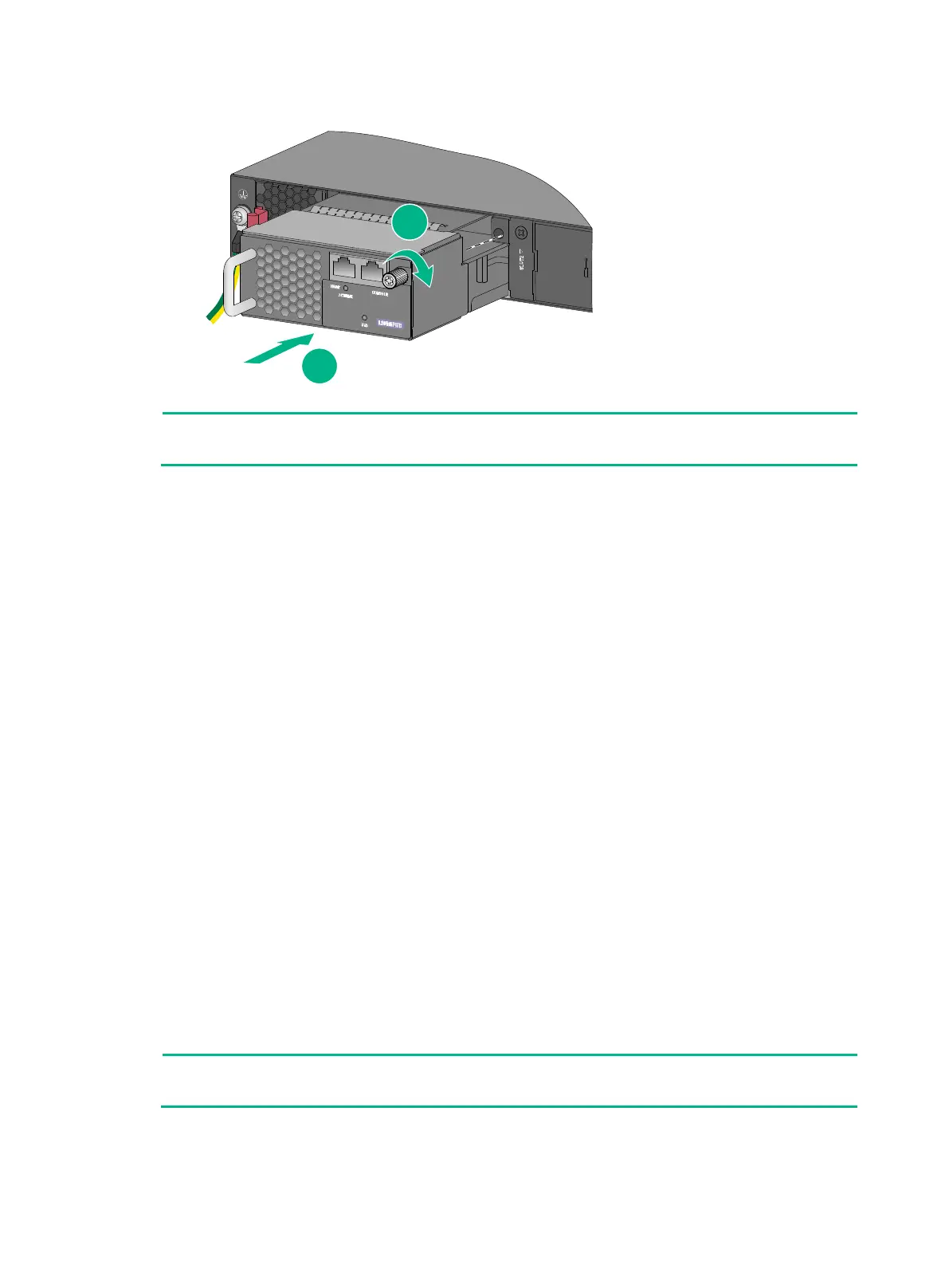

Figure2-42 Installing an expansion card without an ejector lever (LSPM6FWD)
NOTE:
An LSPM6FWD firewall card including its handle adds 75 mm (2.95 in) to the chassis depth.
Removing an expansion card
1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably
grounded.
2. Use a Phillips screwdriver to remove the captive screw on the expansion card.
3. Fully open the ejector lever.
Skip this step for an expansion card that does not have an ejector lever.
4. Gently pull the expansion card out of the slot along the guide rails.
5. If you are not to install a new expansion card, install a filler panel in the slot to prevent dust and
ensure good ventilation in the switch.
Verifying the installation
Before powering on the switch, verify the following items:
•
There is enough space around the switch for heat dissipation.
•
The rack or workbench on which the switch is mounted is stable.
•
The grounding cable is securely connected.
•
The power source specifications are as required by the device.
•
The power cords are correctly connected.
•
If part of the network cable for a port is routed outdoors, verify that a network port lightning
protector is used for the port.
•
If a power line is routed from outdoors, verify that a surge protected power strip is used for the
switch.
NOTE:
For information about lightning protection for the switch, see H3C Lightning Protection Guide.
