Attaching the rear mounting brackets to the rack
1. Determine the switch installation position in the rack.
2. Install cage nuts (user-supplied) in the rear rack posts. Make sure the corresponding cage nuts
on the left and right rear rack posts are at the same height.
3. Orient the rear mounting brackets with the wide flange inside or outside the rack as required.
4. Use M6 screws (user-supplied) to attach the rear mounting brackets to the rear posts, as shown
in Figure2-6.
Do not fully tighten the M6 screws before mounting the switch in the rack.

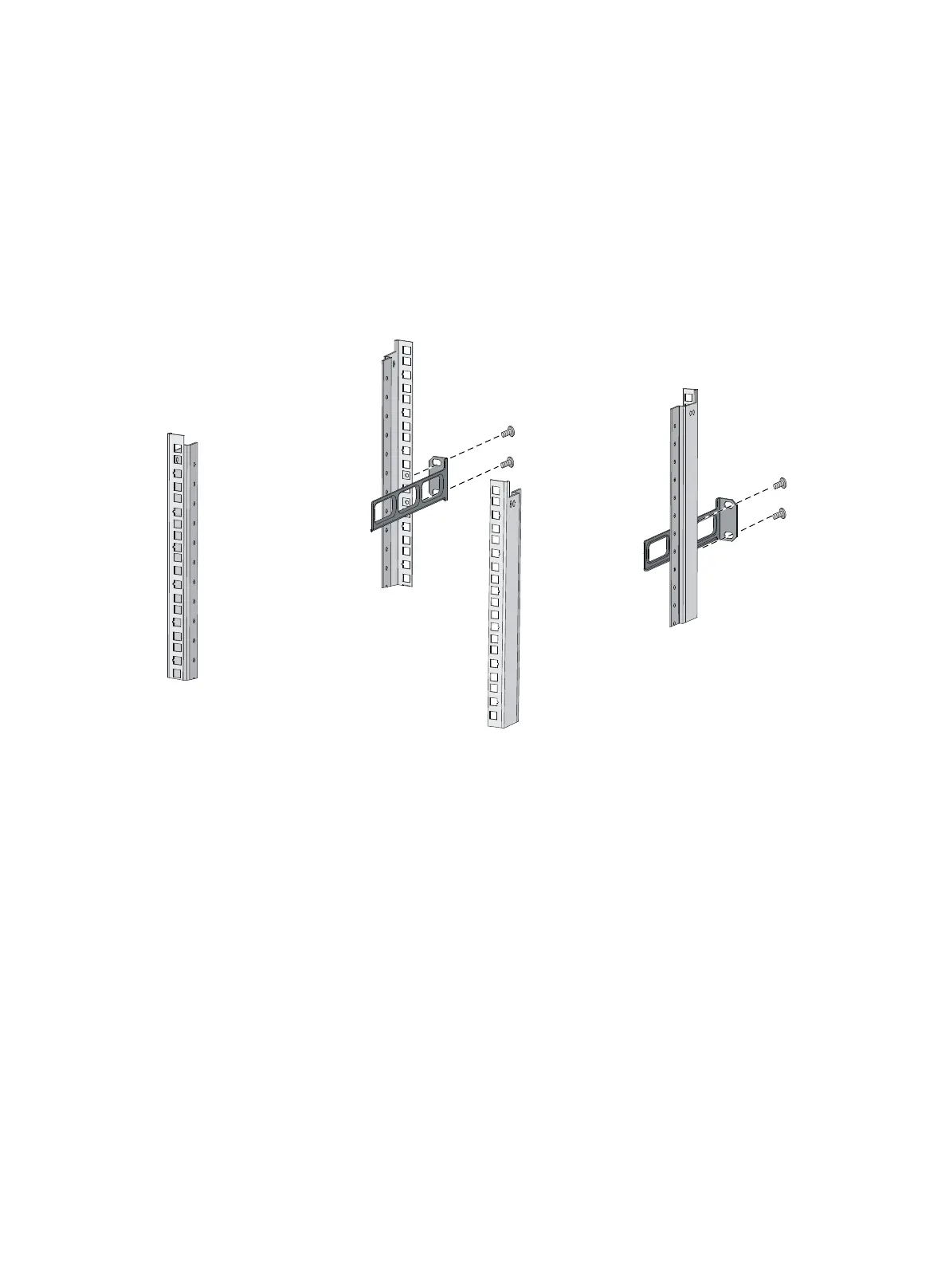

Figure2-6 Attaching the rear mounting brackets to the rack with the wide flange inside the
rack
