Connecting the IRF member switches in one rack
Connect the IRF member switches (9 switches in this example) in a rack as shown in Figure4-4. The
switches in the ring topology (see Figure4-5) are in the same order as connected in the rack.

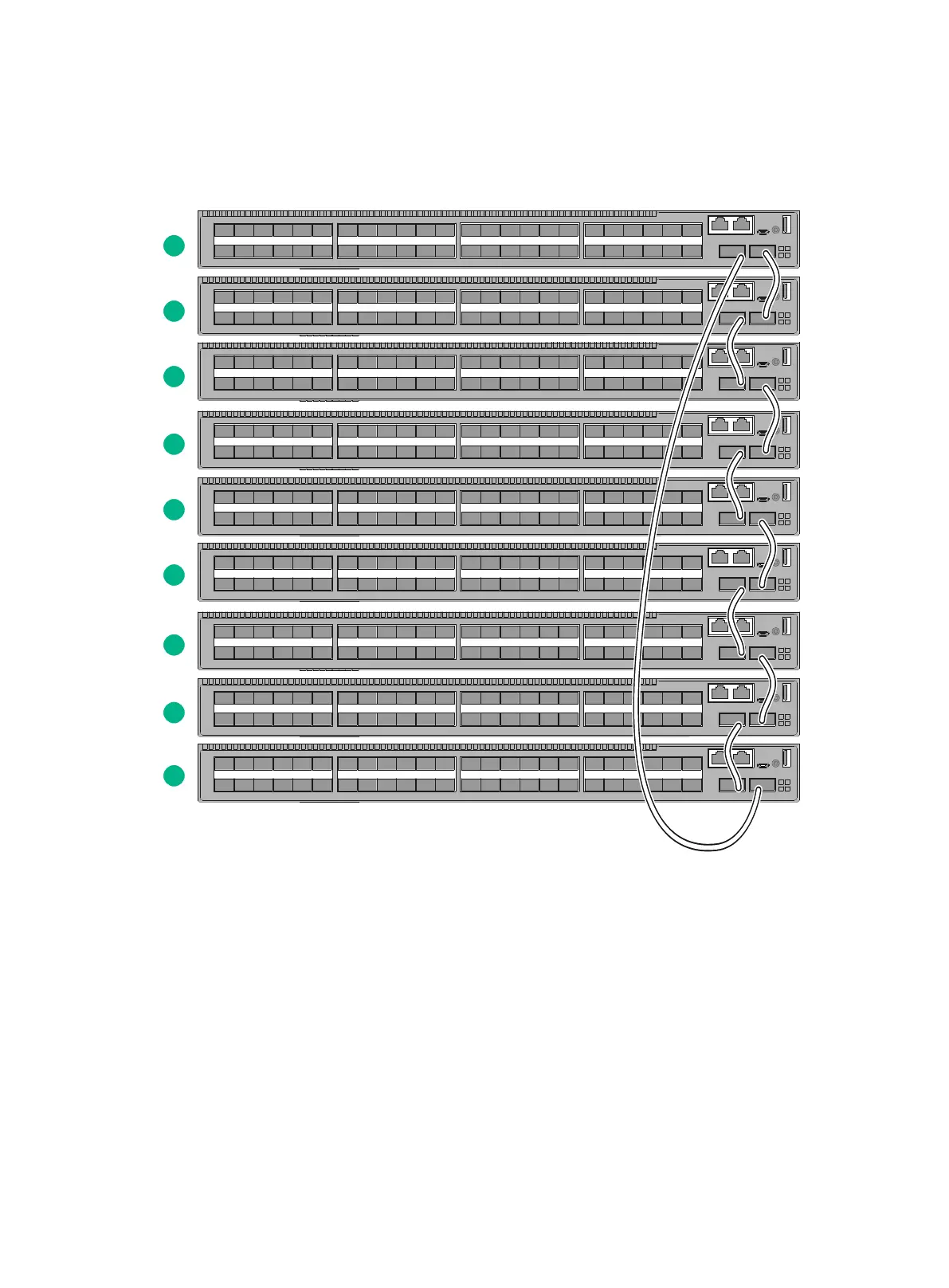

Figure4-4 Connecting the switches in one rack
