8
Installing mounting brackets and cable management brackets
Installing the cable management brackets on the S7506E-V
The S7506E-V has two cable management brackets: the one with a tray is installed at the lower part of
the switch, and the one without a tray is installed at the upper part of the switch. They are installed in the
same way.
To install a cable management bracket:
1. Unpack the cable management brackets.
2. Attach the cable management bracket to the chassis, and align the screws with the screw holes in
the chassis, as shown in Figure 9.
3. Fasten the s
crews.

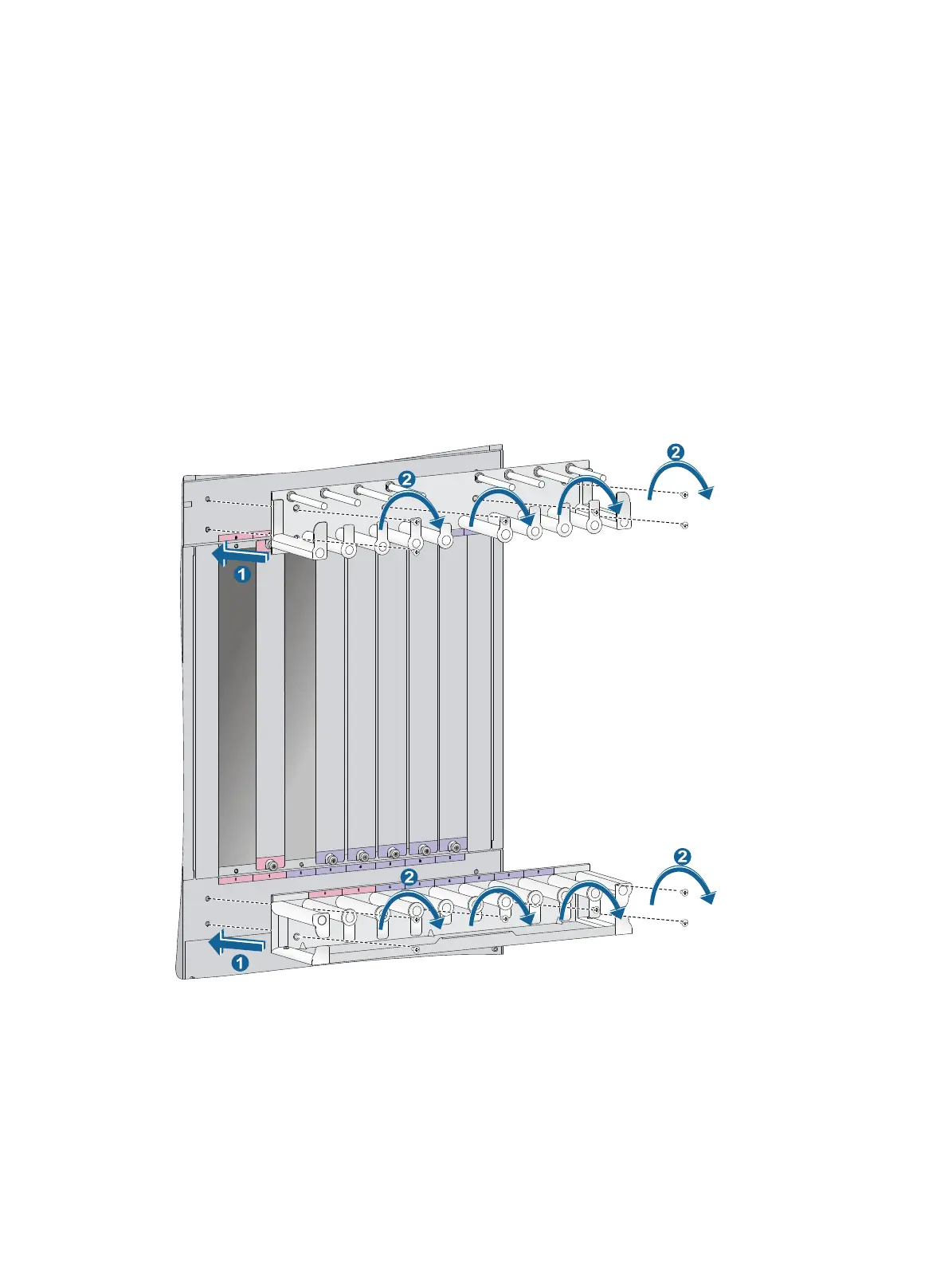

Figure 9 Installing cable management brackets on an S7506E-V
Installing the cable management brackets on other models
For the models except the S7506E-V, install the cable management bracket on the left mounting bracket,
as shown in Figure 10. T
he switch is supplied with two mounting brackets, and the one with the cable
management bracket screw holes is the left mounting bracket.
