24

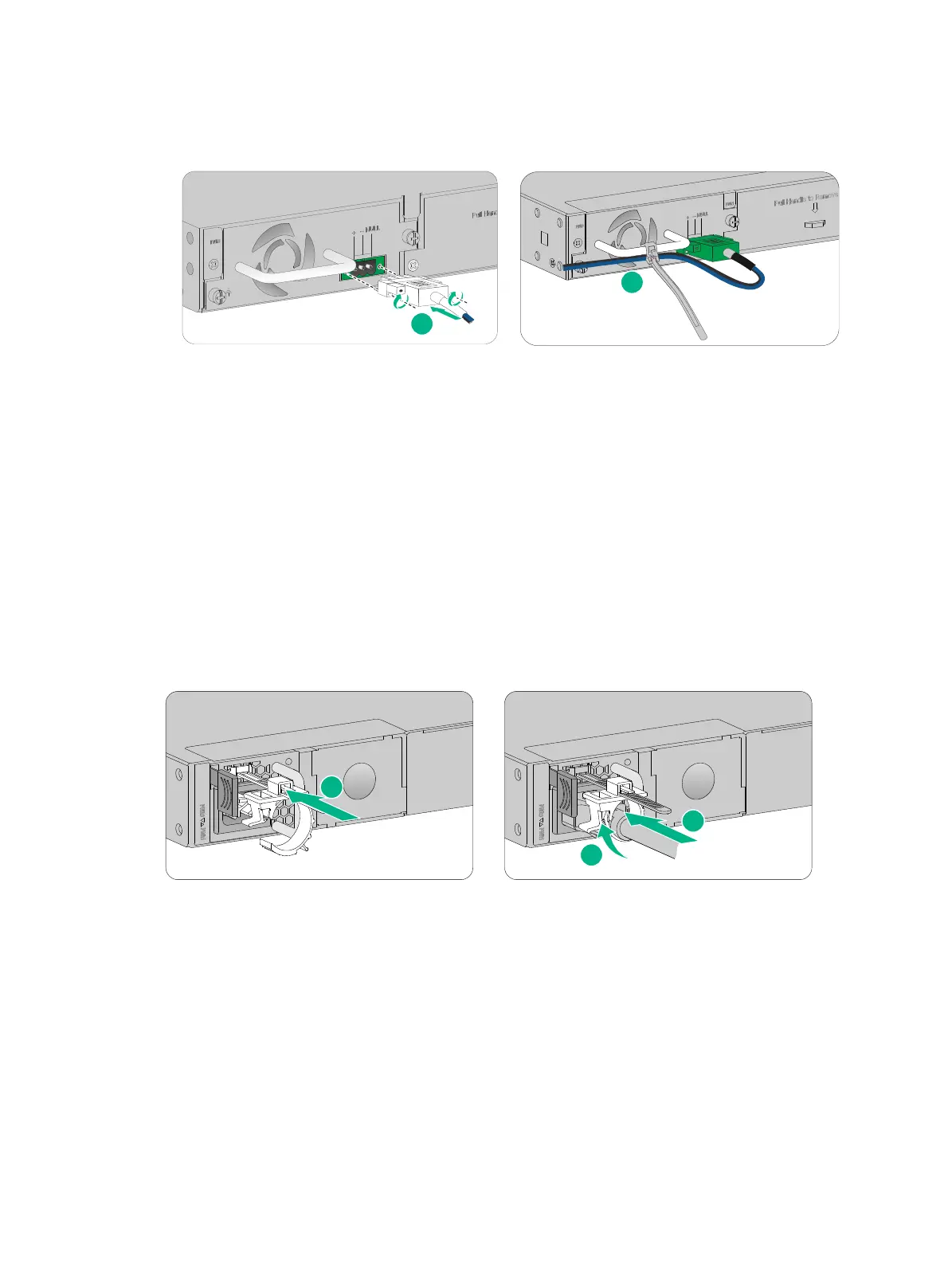

Figure 30 Connecting a DC power cord for an F1070, F1080, or F1090 firewall
Connecting a high-voltage DC power cord for an F1090
firewall
1. Slide the cable clamp onto the tie mount, and then feed the power cord through the opening in
the cable clamp.
2. Connect the female connector of the power cord to the power receptacle.
3. Slide the cable clamp forward until it is flush against the edge of the power cord connector, and
then close the cable clamp.
4. Connect the other end of the power cord to an AC or high-voltage DC power source.
Figure 31 Connecting a high-voltage DC power cord for an F1090 firewall
Verifying the installation
Verify the following items to ensure correct installation:
• There is enough space for heat dissipation around the firewall.
• The firewall and its components are installed securely. The screws are fastened tightly.
• The power source specifications are as required by the firewall.
• The grounding cable and power cords are connected correctly.
2
1
1
2
3
