7 Appendix A Chassis views and
technical specifications
Chassis views
F1000-AI-05
The F1000-AI-05 firewall provides the following ports on the front panel:
•
Eight 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Two combo interfaces.
•
Two bypass ports.
•
One USB port.
•
One console port.
•
One drive slots.

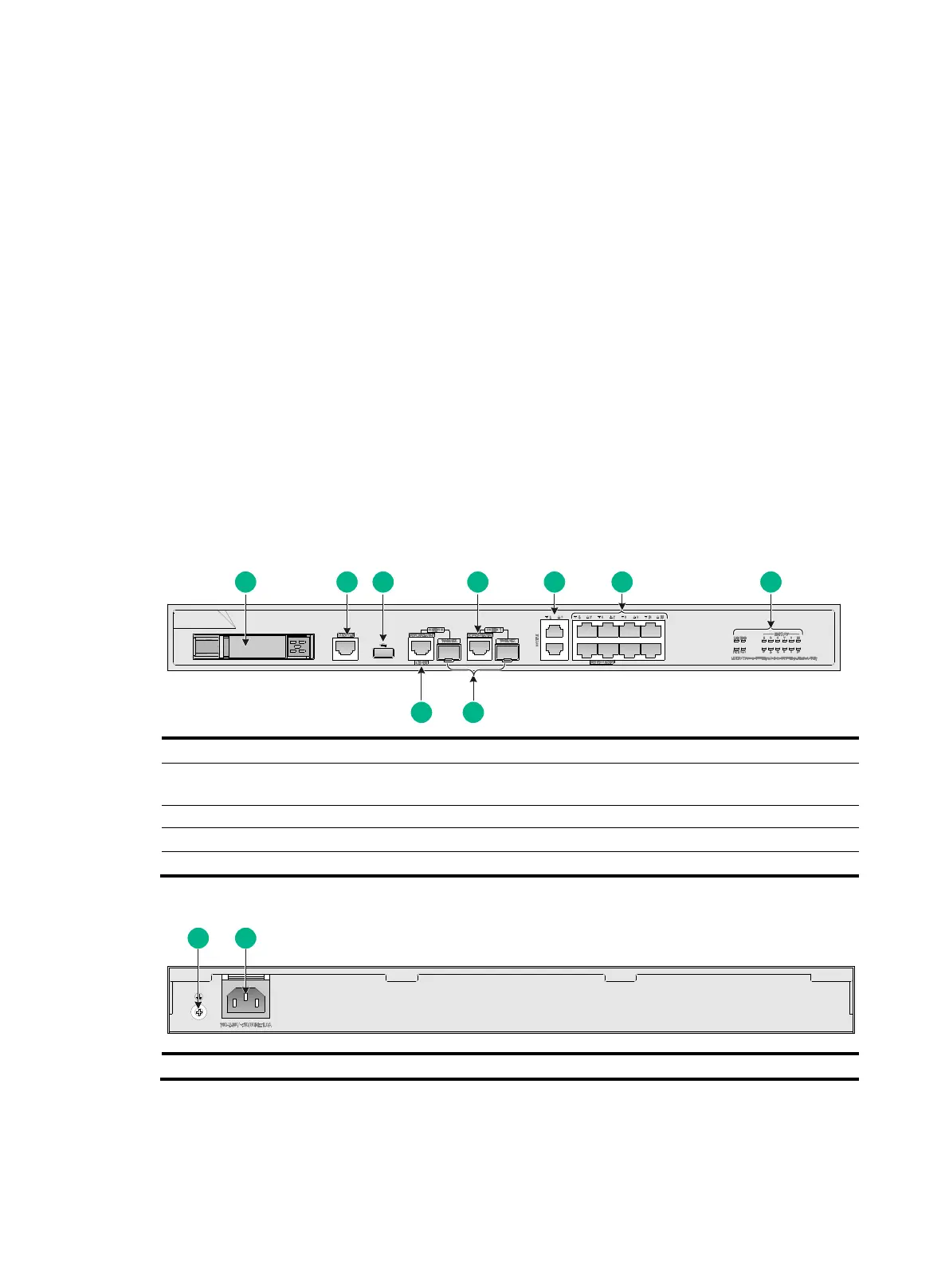

Figure7-1 Front panel
(1) Hard disk slots
(2) Console port
(3) USB ports
(4) 10/100/1000BASE-T copper ports (combo
interfaces)
(5) Bypass ports
(6) 10/100/1000BASE-T copper ports
(7) LEDs
(8) 1000BASE-X fiber ports (combo interfaces)
(9) 10/100/1000BASE-T copper ports (0/MGMT, combo interfaces)
Figure7-2 Rear panel
(1) Grounding screw
(2) Power receptacle
F1000-AI-15
The F1000-AI-15 firewall provides the following ports on the front panel:
1
8
2 3 4 5 6 7
9
1 2

H3C SecPath F1000-AI-5 Series Specifications

General

Brand	H3C
Model	SecPath F1000-AI-5 Series
Category	Firewall
Language	English
