H3C SecPath F1000-AI-5 Series Installation Manual

4
•
One management Ethernet port.

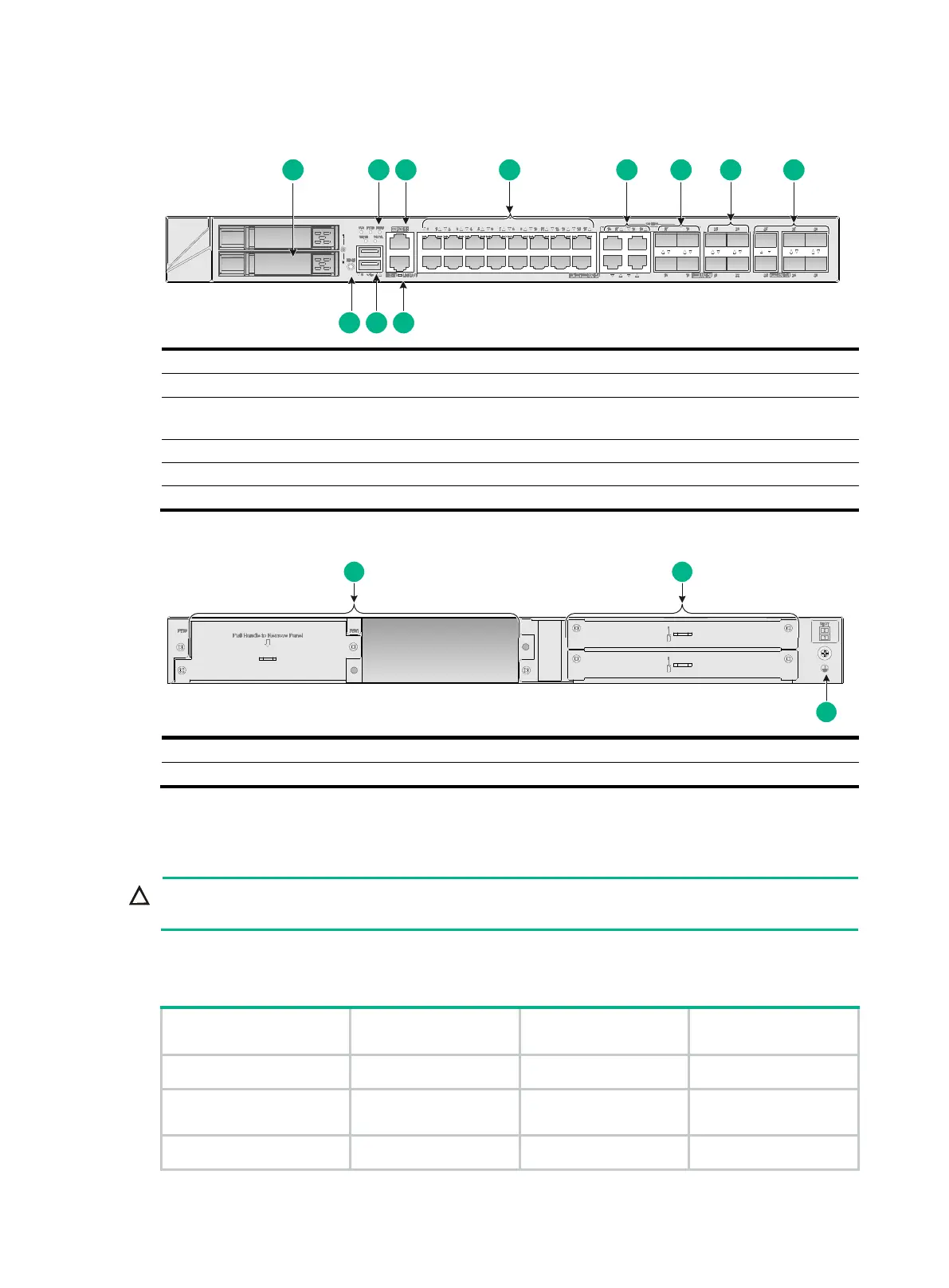

Figure7-7 Front panel
(1) Drive slots
(2) LEDs
(3) Console port
(4) 10/100/1000BASE-T copper ports
(5) 10/100/1000BASE-T copper ports (combo
interfaces)
(6) 1000BASE-X fiber ports (combo interfaces)
(7) 1000BASE-X fiber ports
(8) 10GBASE-R fiber ports
(9) Management Ethernet port (MGMT)
(10) USB ports (host mode, Type A)
(11) Reset button
Figure7-8 Rear panel
(1) Power supply slots
(2) Interface module slots
(3) Grounding screw
Interface modules
CAUTION:
The interface modules are not hot swappable.
Table7-1 displays the compatible slots for the interface modules.
Table7-1 Interface module and device slot compatibility
Firewall model Slot number Slot speed
Compatible
interface module
F1000-AI-05/F1000-AI-15 N/A Not supported Not supported
F1000-AI-25/F1000-AI-35/
F1000-AI-55
Slots 1 and 2
Low speed
• NSQM1GT4PFC
• NSQM1GP4FBA
F1000-AI-65/F1000-AI-75 Slot 1
High speed
NS-NIM-TG6A
1 2 3 4 5 6 87
11 10 9
1 2
3
