H3C SecPath F1000-AI-5 Series Installation Manual

3
•
Two 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
One drive slot.
•
One management Ethernet port.

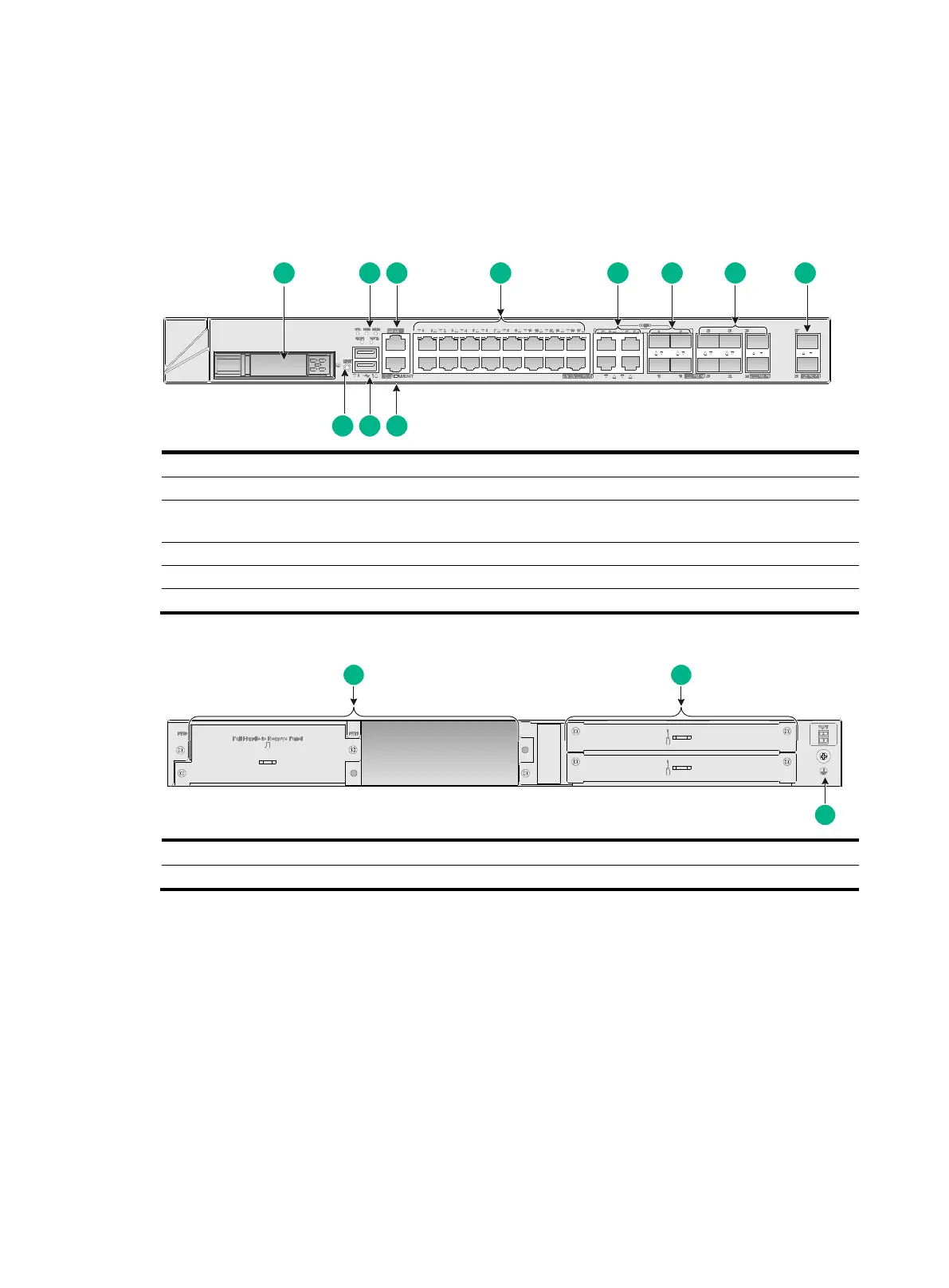

Figure7-5 Front panel
(1) Drive slot
(2) LEDs
(3) Console port
(4) 10/100/1000BASE-T copper ports
(5) 10/100/1000BASE-T copper ports (combo
interfaces)
(6) 1000BASE-X fiber ports (combo interfaces)
(7) 1000BASE-X fiber ports
(8) 10GBASE-R fiber ports
(9) Management Ethernet port (MGMT)
(10) USB ports (host mode, Type A)
(11) Reset button
Figure7-6 Rear panel
(1) Power supply slots
(2) Interface module slots
(3) Grounding screw
F1000-AI-65/F1000-AI-75
The F1000-AI-65/F1000-AI-75 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Four combo interfaces.
•
Four 1000BASE-X fiber ports.
•
Six 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
Two drive slots.
1
2 3
4
5
6
8
7
11
10
9
1
2
3
