4

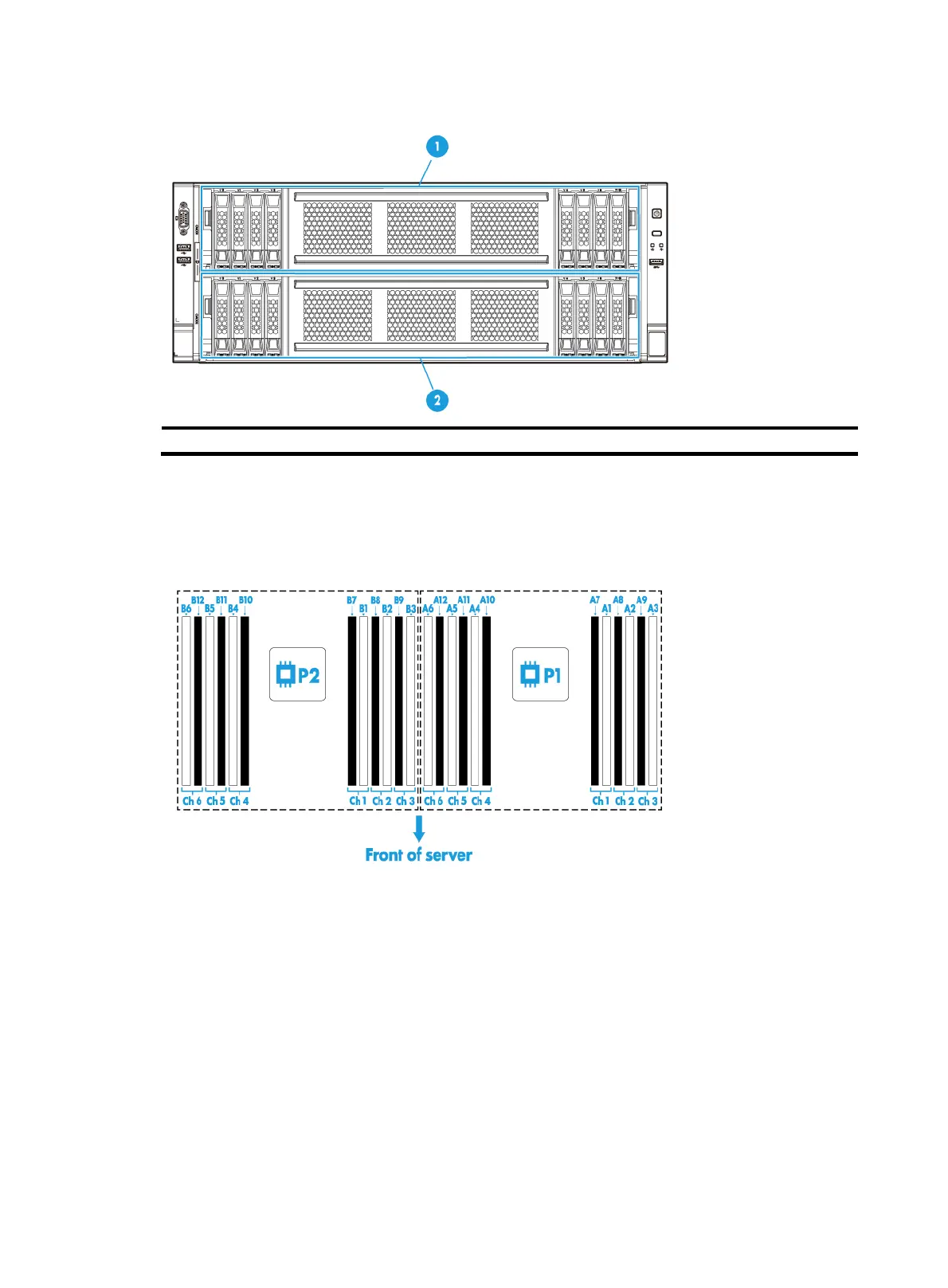

Figure 5 CMOD numbering on an R6900 G3 server
(1) CMOD 1 (2) CMOD 2
Processor numbering on CMODs
A CMOD supports two processors. The two processors on each CMOD are numbered P2 and P1
from left to right.
Figure 6 Processor numbering on a CMOD
Guidelines
Follow these guidelines to install processors on an R6900 server:
• Make sure all processors on a server are the same model
• You can install one, two, or four processors on a server. The processor installation positions
vary by the number of processors installed on the server.
