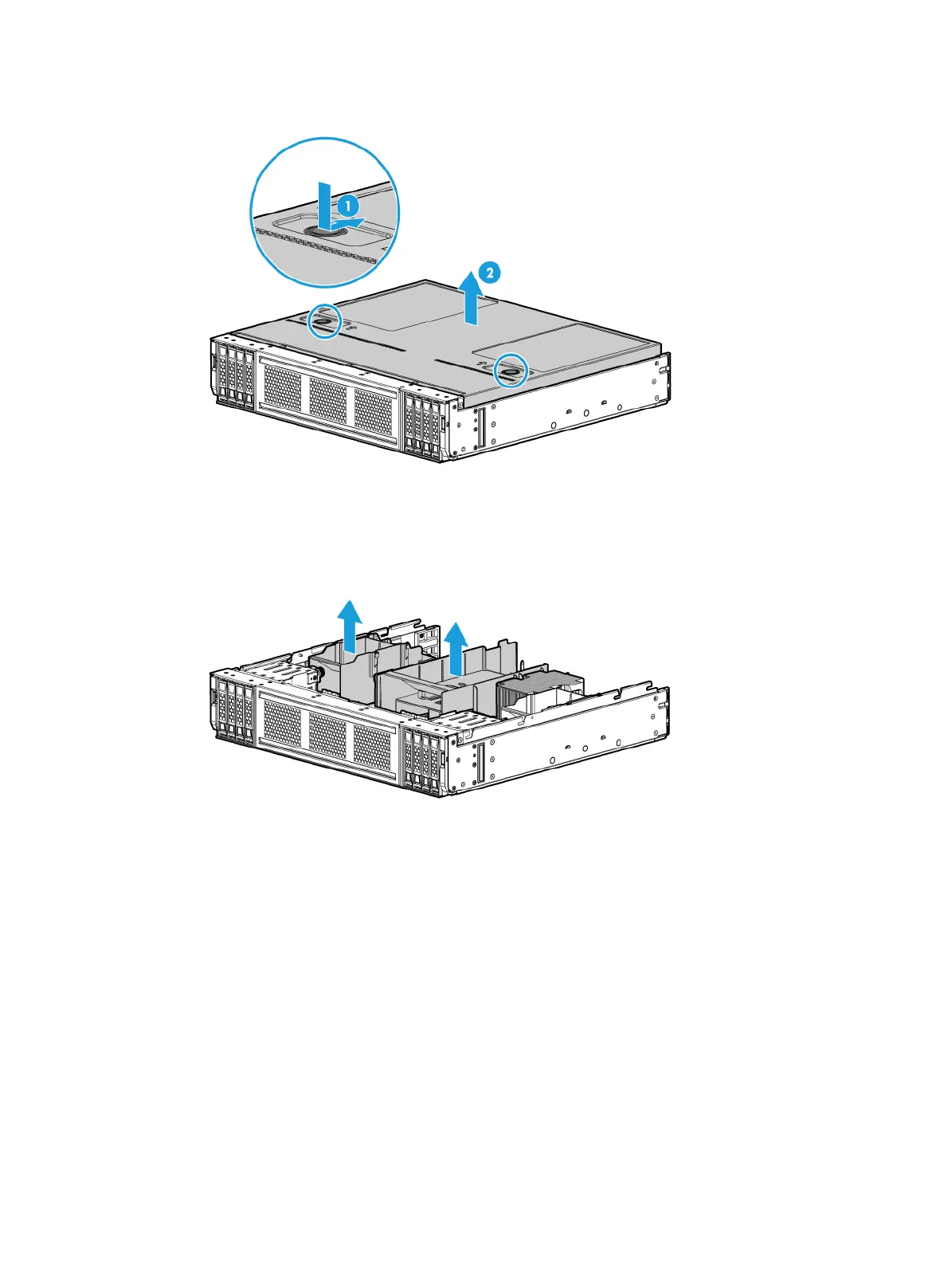

Figure 3 Removing the CMOD access panel
7. Lift the air baffles away from the CMOD, as shown in Figure 4.
The removal procedure is the same for air baffles. The following figure removes two air baffles.
Figure 4 Removing the air baffles from the CMOD
Installing the processor
CMOD and processor numbering
CMOD numbering
An R6900 G3 server supports two CMODs.
