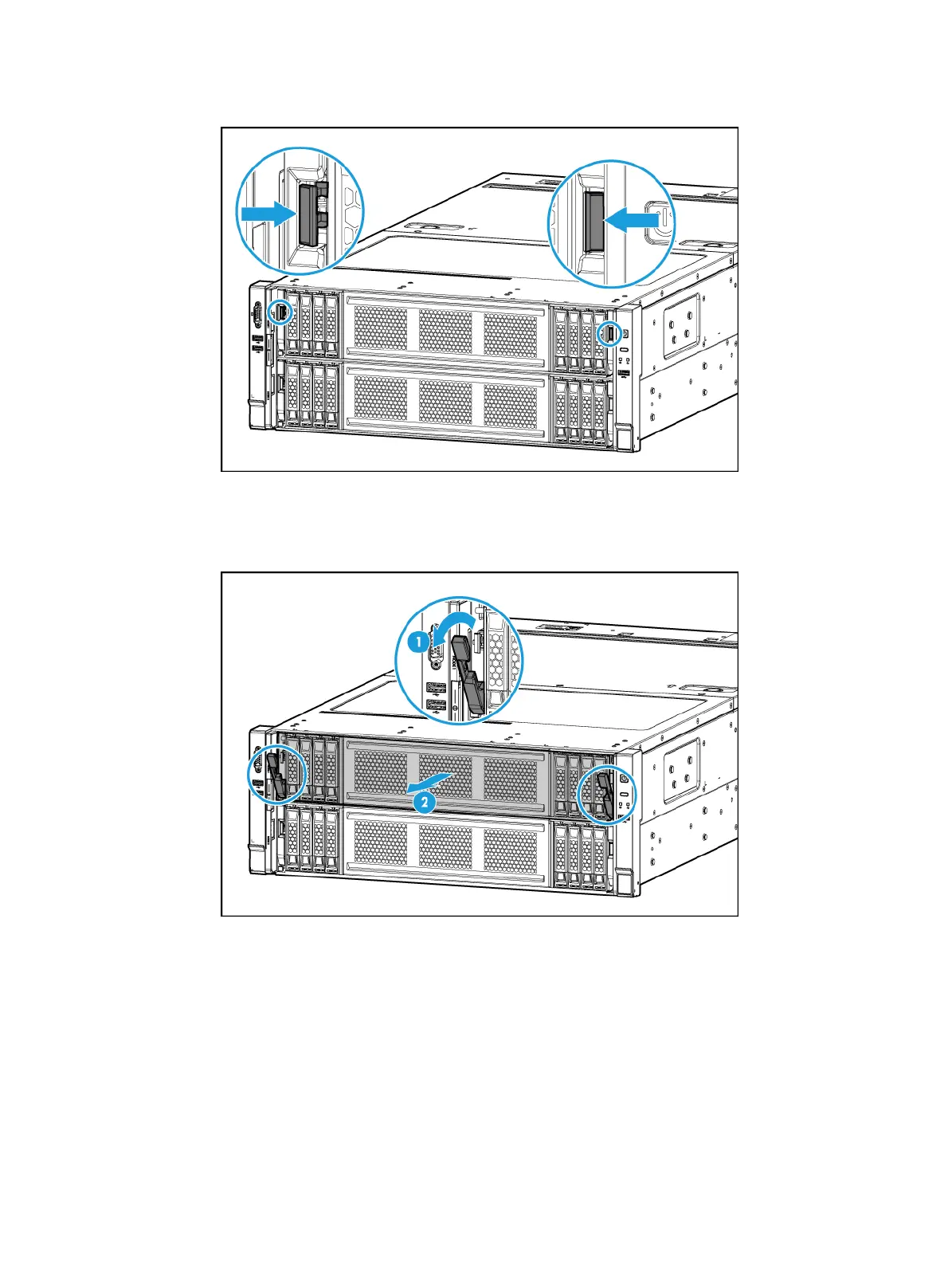

Figure 1 Releasing the CMOD
b. As shown by callout 1 in Figure 2, press forward the locking levers to disengage the CMOD
from the server. Then pull the CMOD out of the server, as shown by callout 2 in Figure 2.
Figure 2
Removing a CMOD
6. Remove the CMOD access panel.
a. As shown by callout 1 in Figure 3,
simultaneously press the two release buttons on the
access panel and slide the access panel a little towards the rear.
b. As shown by callout 2 in Figure 3, lift the access pa
nel away from the CMOD.
