Installing DIMMs
After you install a new processor, install DIMMs for it. See "DIMM configuration" on the label on the
CMOD access panel.
To install a DIMM:
1. Open the retaining clips of the DIMM slot.
2. Align the notch on the DIMM bottom edge with the key on the DIMM slot.
3. Insert the DIMM into the slot and make sure the retaining clips lock the DIMM in place.
The DIMM slot has a structure that prevents misalignment. If you cannot insert the DIMM into
the slot easily, the installation might be wrong. Reorient the DIMM and then insert it into the
slot again.

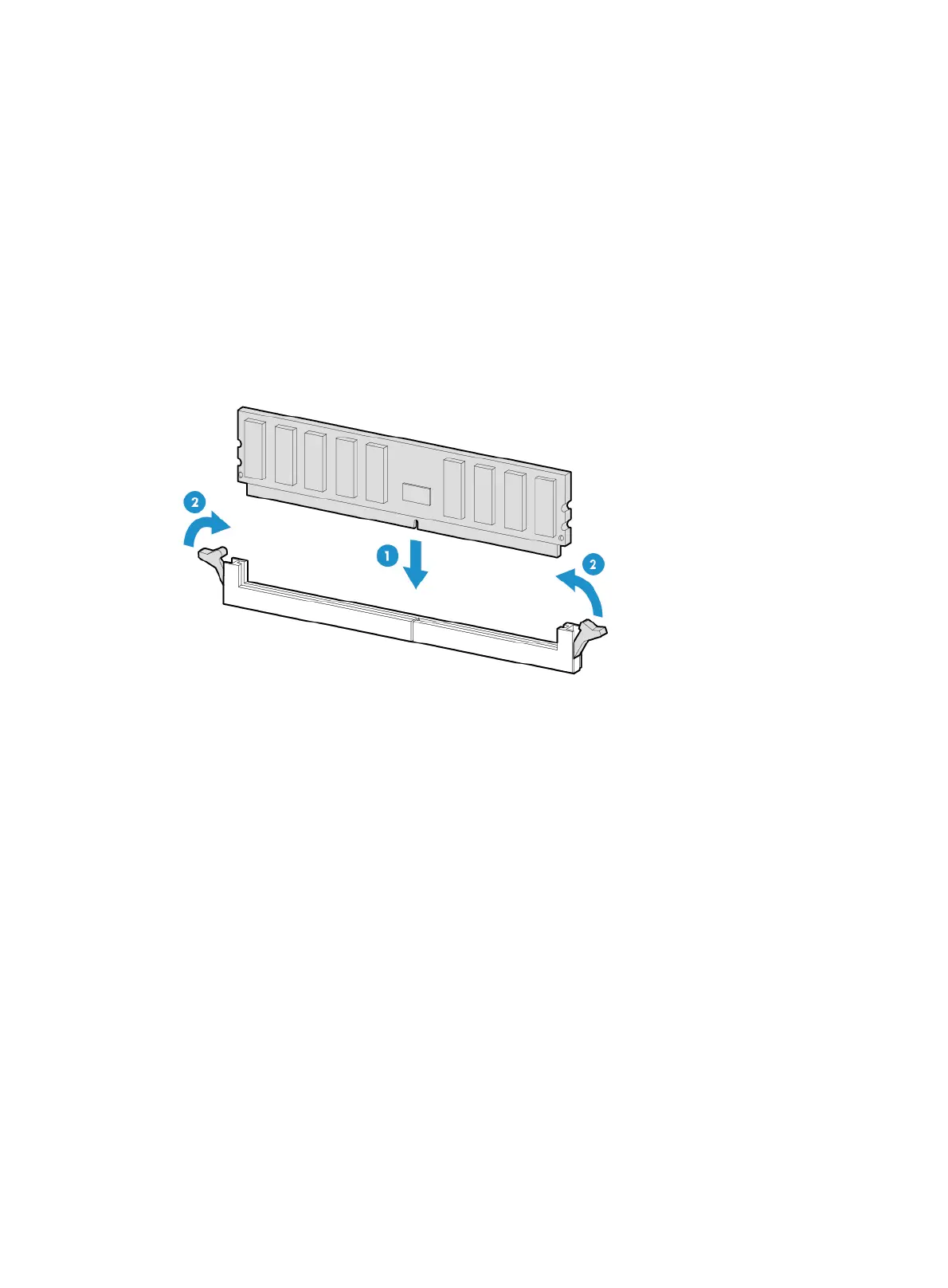

Figure 12 Installing a DIMM
Starting the server
1. Install the removed air baffles.
2. Install the access panel for the CMOD.
3. Install the CMOD on the server.
4. (Optional.) If the security bezel is removed, reinstall it.
5. Connect power cords for the server.
6. Power on the server.
