Field Descri
tion
Output: 3436 packets, 492500 bytes
: 3016 unicasts, 424408 bytes
: 320 multicasts/broadcasts, 42994
bytes
: 100 others, 25098 bytes
: 0 fragmented
: 948 discarded, 100690 bytes
: 0 failed RTS, 1331 failed ACK
: 4394 transmit retries, 1107 multiple
transmit retries
Output packet statistics of the interface:
• Number of packets (unicasts + multicasts/broadcasts +
others), number of bytes.
• Number of unicast packets, number of bytes of unicast
packets.
• Number of multicasts/broadcast packets, number of bytes
of multicasts/broadcast packets.
• Number of other frames, bytes.
• Number of fragmented packets.
• Number of discarded packets, number of discarded bytes.
• Number of failed RTS packets, number of failed ACK
packets.
• Number of retransmitted frames, number of transmission
retries.
Displaying WDS
Select Summary > WDS from the navigation tree to enter the WDS page.

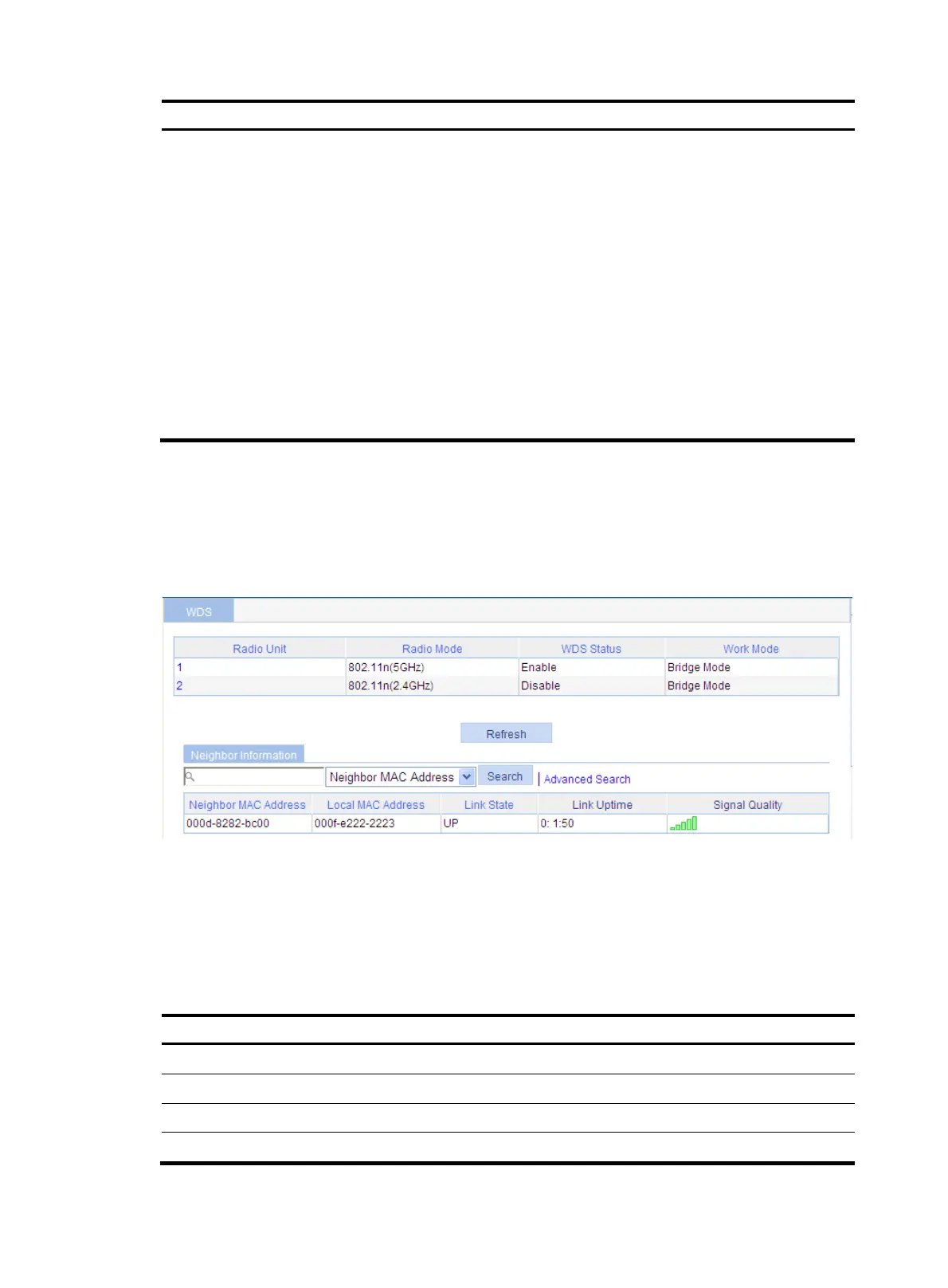

Figure 29 Displaying WDS
The AP can operate in two modes:
• Bridge mode—The AP operates in the network as a Layer 2 device.
• Route mode—The AP operates in the network as a Layer 3 device.
At present, the AP operates in bridge mode only.
Table 18 Field description
Field Descri
tion
Neighbor MAC Address MAC address of the radio interface of the neighbor.
Local MAC Address MAC address of the local radio interface.
Link State Link state, which can be up, down, or processing.
Link Uptime Up time of the current WDS link.
