Determining the installation position
Determine the installation position by observing the following principles:
Few obstacles such as wall exist between the AP and clients.
The AP is far away from electronic devices (such as microwave oven) that might generate
radio frequency (RF) noise.
The AP does not hinder people’s daily work and life.
The place is not water seeping, water soaking, and condensing.
Mounting the AP
Before mounting the AP on a wall or ceiling, connect cables to the AP.
• Install an M3 × 23.5 security screw as required.
The AP can be installed only indoors. You can mount the AP on a wall or a ceiling.
Mounting bracket

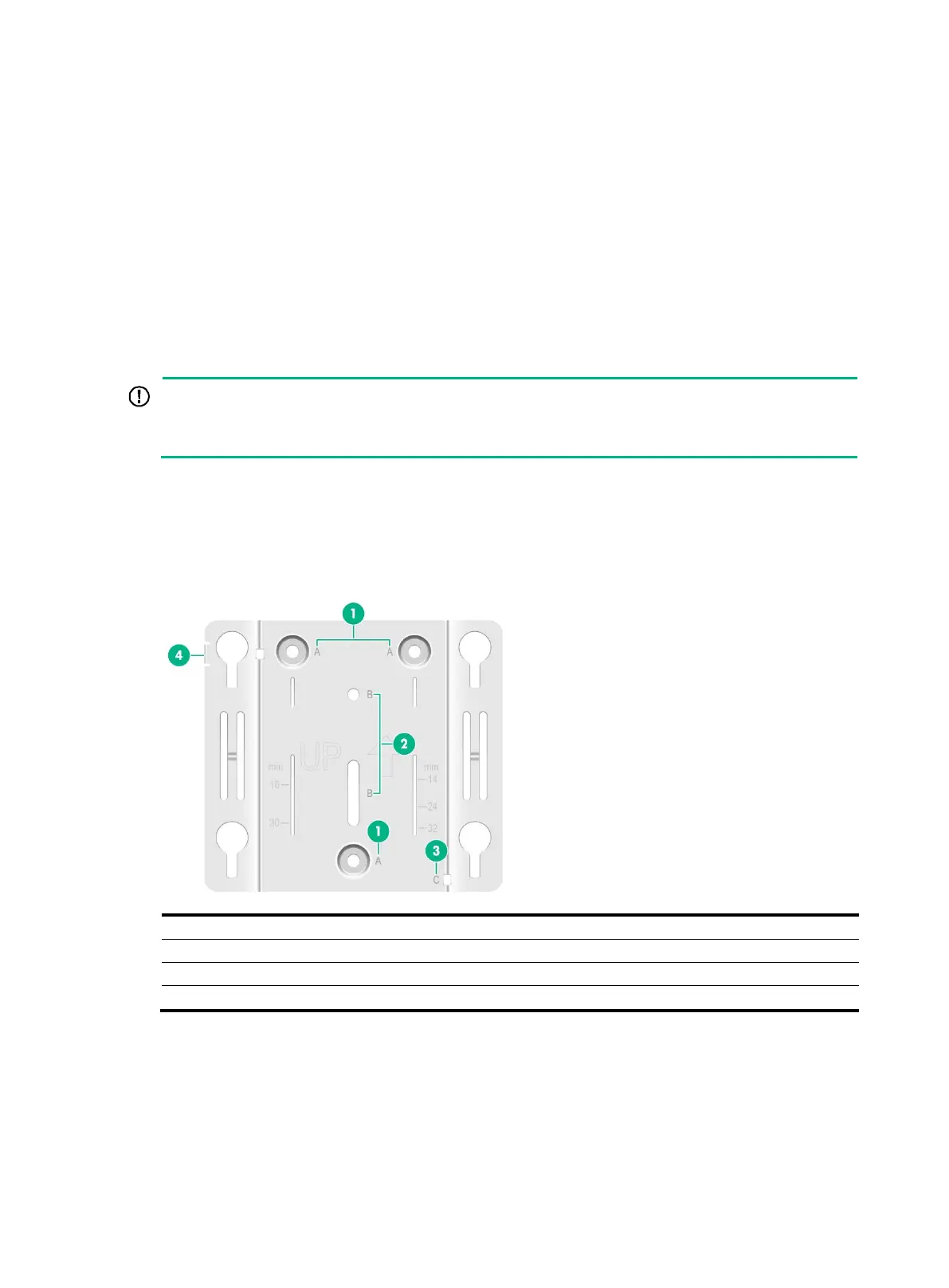

Figure 2-2 Mounting bracket
(1) Installation hole for securing the mounting bracket to a wall or ceiling (point A)
(2) T-rail installation hole (reserved) (Point B)
(3) Auxiliary hole for securing cables by using cable tie (point C)
(4) Security hole for an M3 × 23.5 security screw
Mounting the AP on a wall
1. Place the mounting bracket against the wall and mark the installation holes on the wall.
