4-1
4 Appendix B Ports and LEDs
Ports
The AP provides the following ports:
One console port
One GE/PoE port
One power port
It provides also a reset button and a security screw hole.

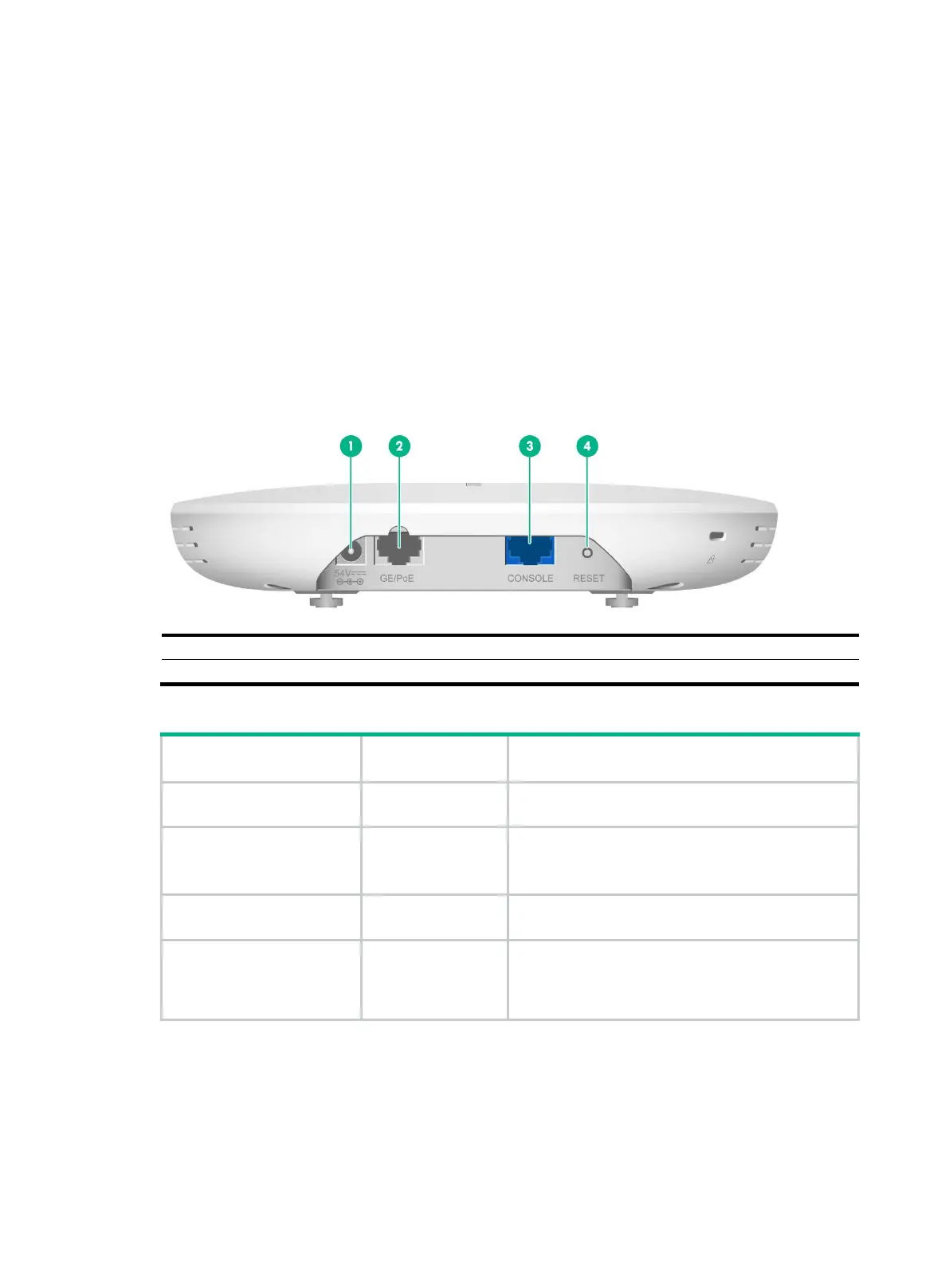

Figure 4-1 Ports on the AP
(2) 10/100/1000M Ethernet copper port
Table 4-1 Port descriptions
Port
Standards and
Description
Console port RS/EIA-232
Used by technical personnel only for device
configuration and management.
10/100/1000M Ethernet
copper port (GE/PoE)
• IEEE802.3
• IEEE802.3u
• IEEE802.3af
Used for connecting the AP to an uplink device for
Internet or MAN access. It can also receive PoE
power from the uplink device.
Power port (54 V) N/A
Used for receiving +54 VDC power from a local
power source.
Reset button N/A
• To reset the AP, press and hold the button for
no more than 5 seconds.
• To restore the factory default, press and hold
the button for more than 5 seconds.
