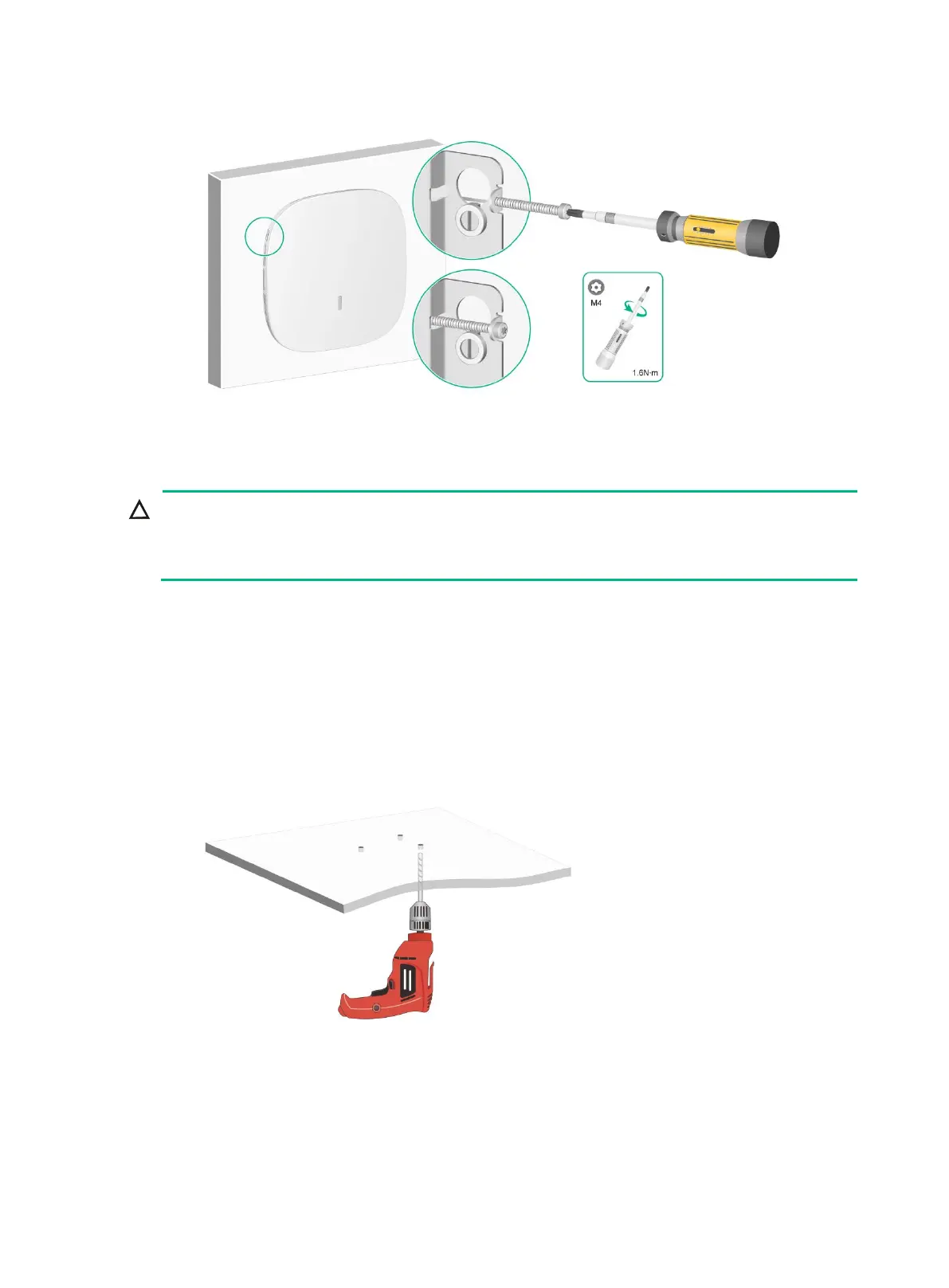

Figure 2-9 Fastening the M3 × 23.5 security screw
Mounting the AP on a ceiling
The ceiling for installing the AP must be less than 18 mm (0.71 in) in thickness, and can bear a load
of 5 kg (11.02 lb).
If you must install the AP on a ceiling not strong enough, use boards to
The installation method for the M3 × 23.5 security screw is similar when the AP is mounted on the
wall and on the ceiling.
To mount the AP on a ceiling:
1. Remove the ceiling tile.
2. Place the mounting bracket against the ceiling tile and mark the installation holes on the ceiling
tile. Drill three holes with a diameter of 6 mm (0.24 in) at the marked positions, as shown in
Figure 2-10.
Figure 2-10 Drilling holes in the ceiling tile
3. Thread the pan-head screws through the installation holes in the mounting bracket and into the
holes in the ceiling tile. Fasten washers and nuts at the other side of the ceiling to secure the
mounting bracket to the ceiling, as shown in Figure 2-11.
