H3C WA6320 User Manual

2-6

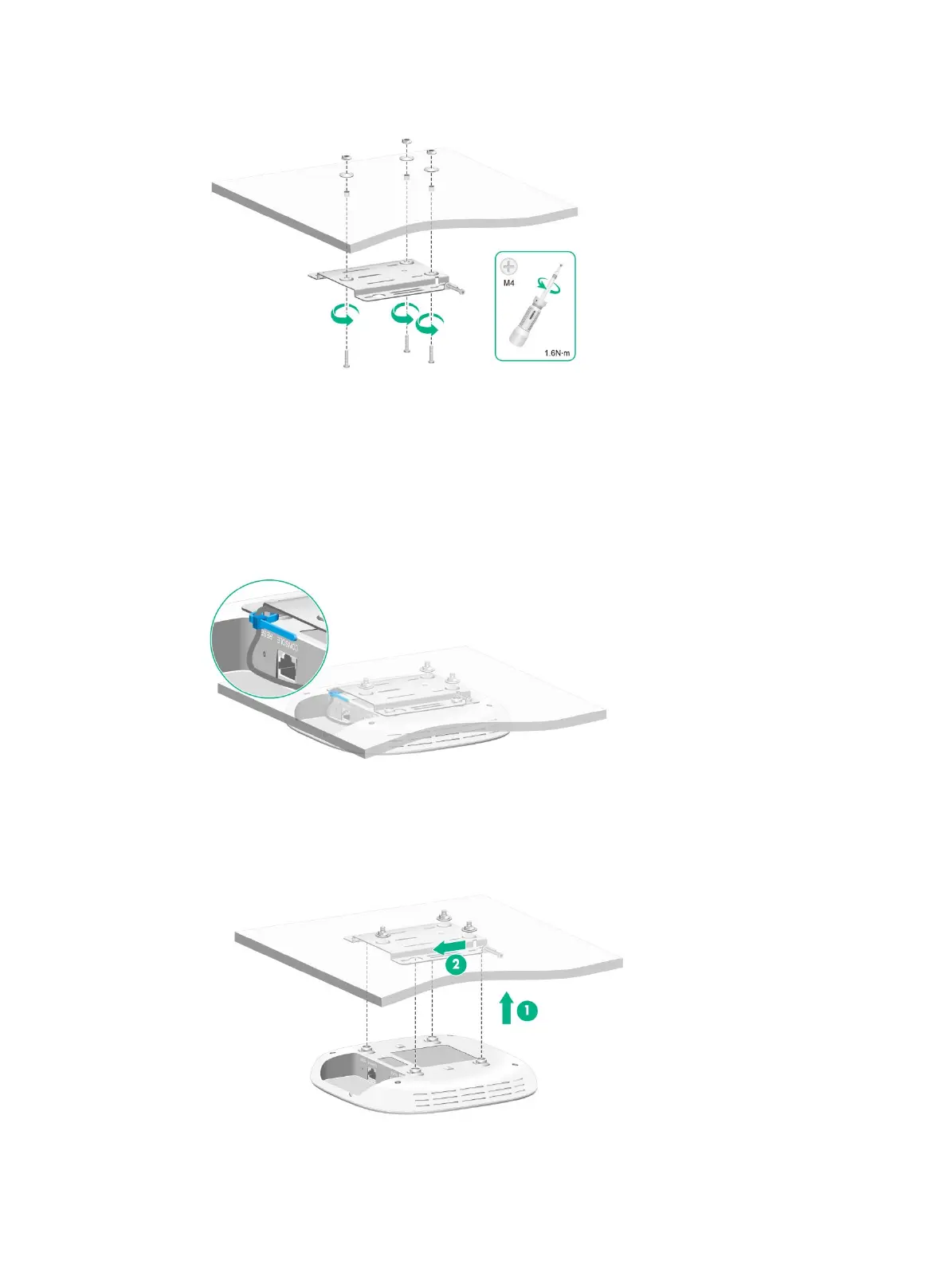

Figure 2-11 Attaching the mounting bracket to the ceiling
4. Connect a cable to the AP:
a. If you are not to use a cable tie, directly connect the cable to the AP.
b. To use a cable tie, thread the cable tie through the auxiliary hole in the mounting bracket,
and do not tighten the cable tie. Then, connect a cable to the AP, adjust the cable length,
and then tighten the cable tie to secure the cable to the AP.
No cable tie is provided with the AP. Prepare one yourself as required.
Figure 2-12 Securing a cable
5. Position the four pegs at the AP rear into the keyhole slots in the mounting bracket and slide
the AP until it clicks into place, as shown in Figure 2-13.
Figure 2-13 Attaching the AP to the mounting bracket

H3C WA6320 Specifications

General

Brand	H3C
Model	WA6320
Category	Wireless Access Point
Language	English
