OPTIONS
96-8000
June 1999

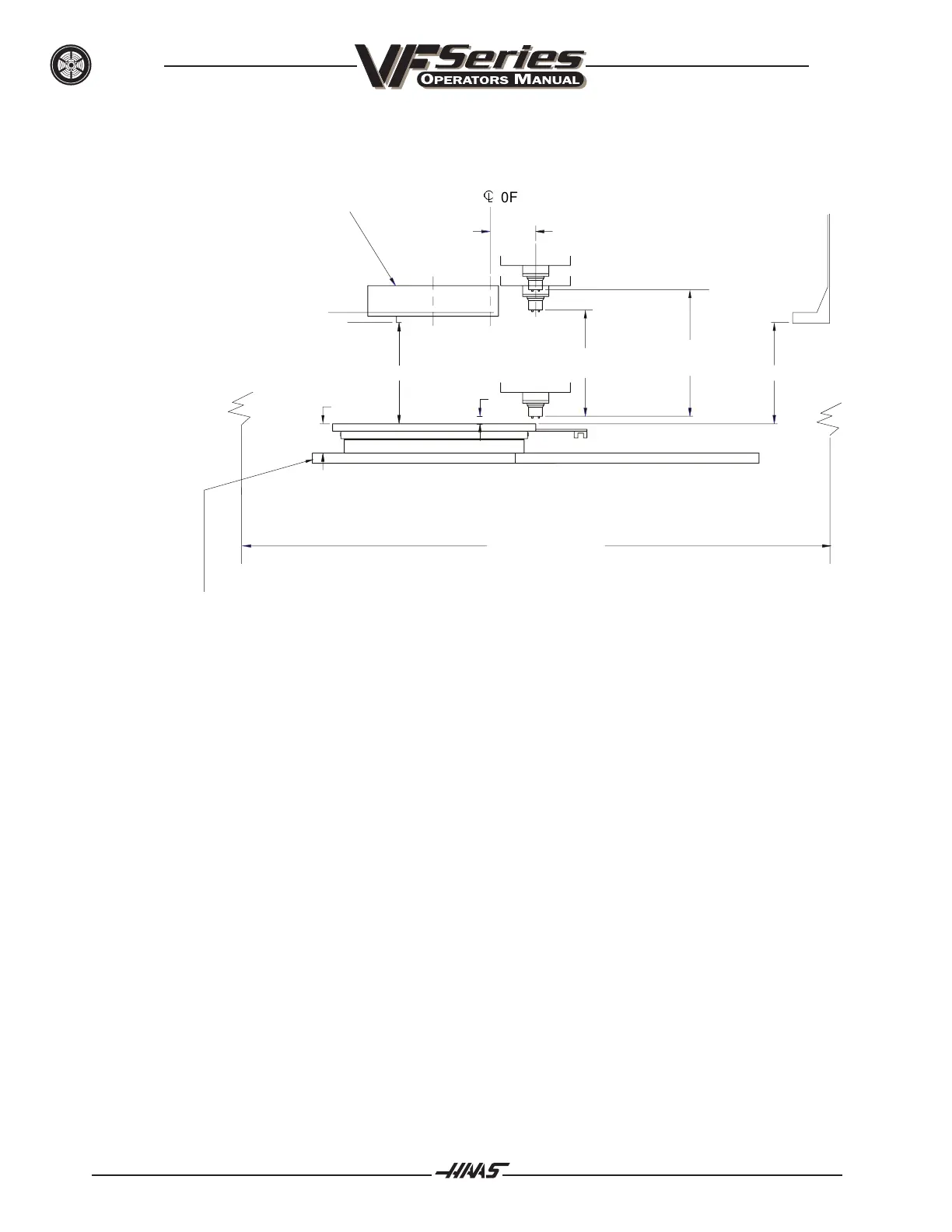

APC WORK ENVELOPES
OF TOOL HOLDER V-GROOVE
LOWEST POINT ON CAROUSEL
9" (22.86 cm)
&
/ 0F TOOL HOLDER
TOOL CHANGER COVER
C
L
21"
(53.34 cm)
TOOL
CHANGE
POSITION
25"
(63.5 cm)
MAX Z-AXIS
TRAVEL
MILL TABLE (AT HOME POSITION)
SIZE: VF-3 48" x 18", (121.92 cm x 45.72 cm)
SIZE: VF-4 44" x 18", (111.76 cm x 45.72 cm)
TRAVEL: VF-3 40" x 20", (101.60 cm x 50.80 cm)
TRAVEL: VF-4 50" x 20", (127.00 cm x 50.80 cm)
116" (294.64 cm)
ENCLOSURE USEABLE WORK SPACE
19.9
1.4
5.8
20“
APC DOOR
OPENING
