1

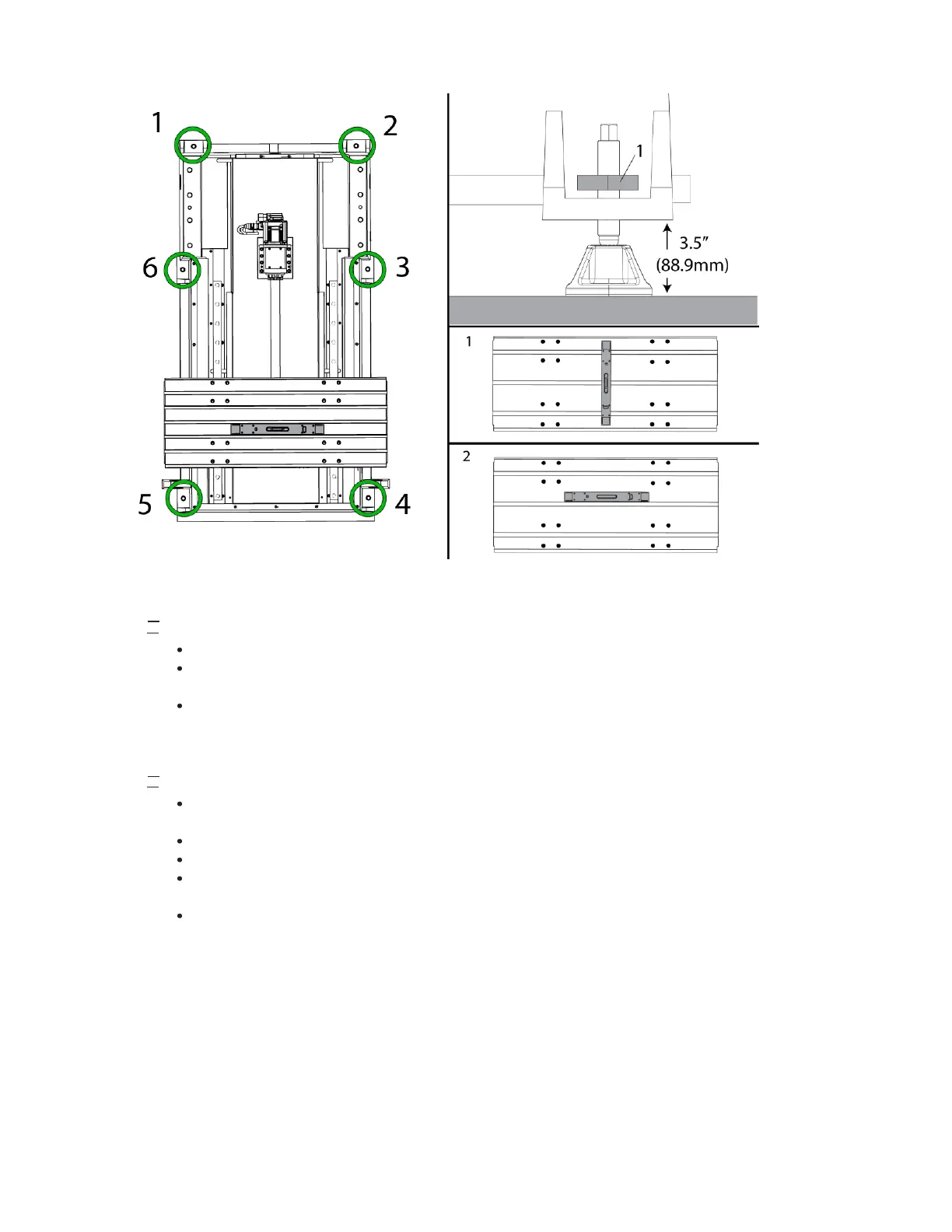

Adjust the four corner leveling screws to the same height to lift the base casting 3-1/2" from the ground.
Loosen the middle leveling screws [3, 6] so that they are not touching the pads, install jam nuts [1] on
leveling screws, but do not tighten
Jog the table so that it is centered in the machine.
2
Place the level on the center of the bed and position it so that the shorter vial is parallel to the Y-axis
and the longer vial is parallel to the X-axis.
Using the shorter vial adjust the front to back level by either adjusting the front or back leveling screws.
Adjust the leveling screws until the Y-axis bubble is centered.
Using the longer vial which is parallel to the X-axis, raise the leveling screws on lower side of the
machine.
Adjust the leveling screws accordingly until the X-axis bubble is centered
